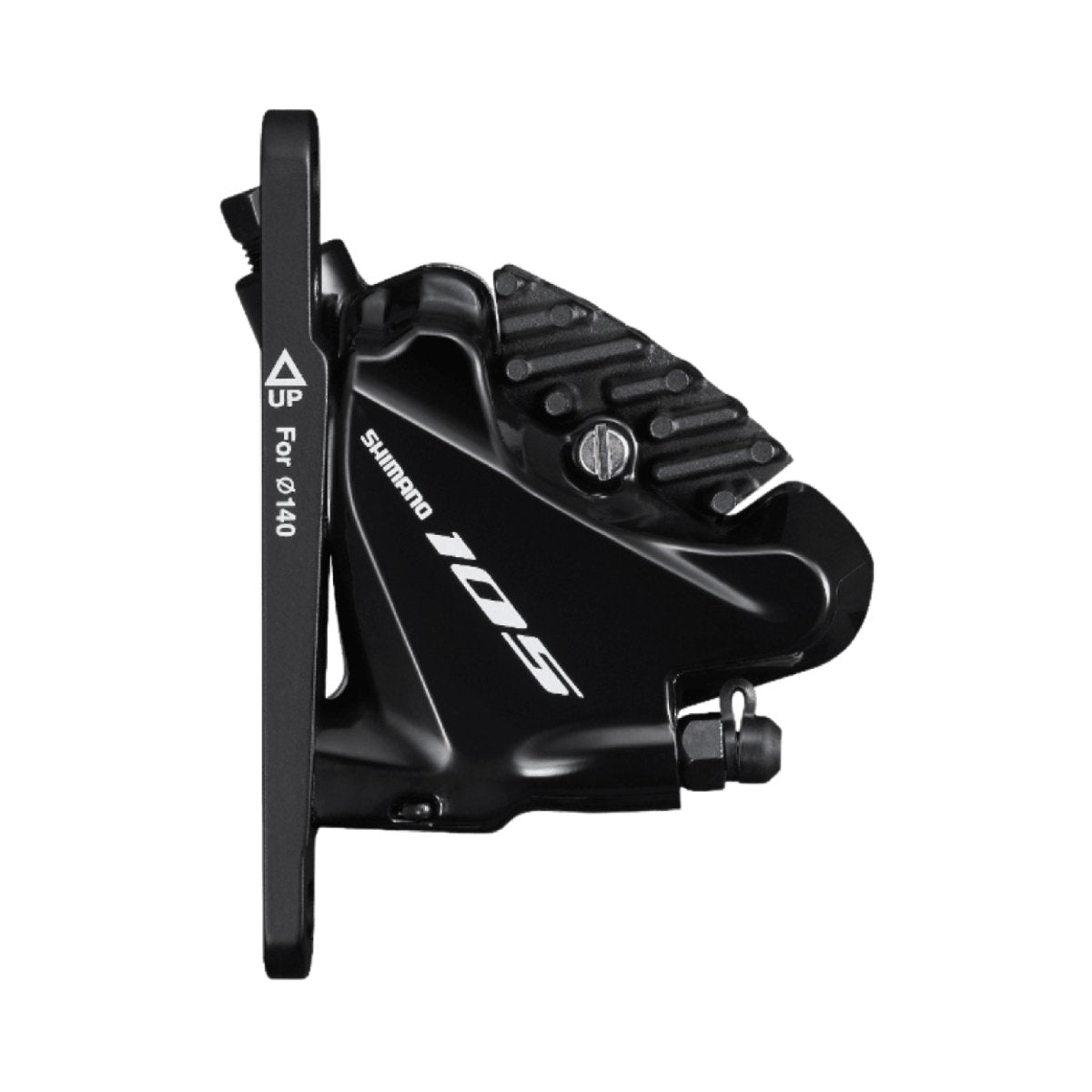

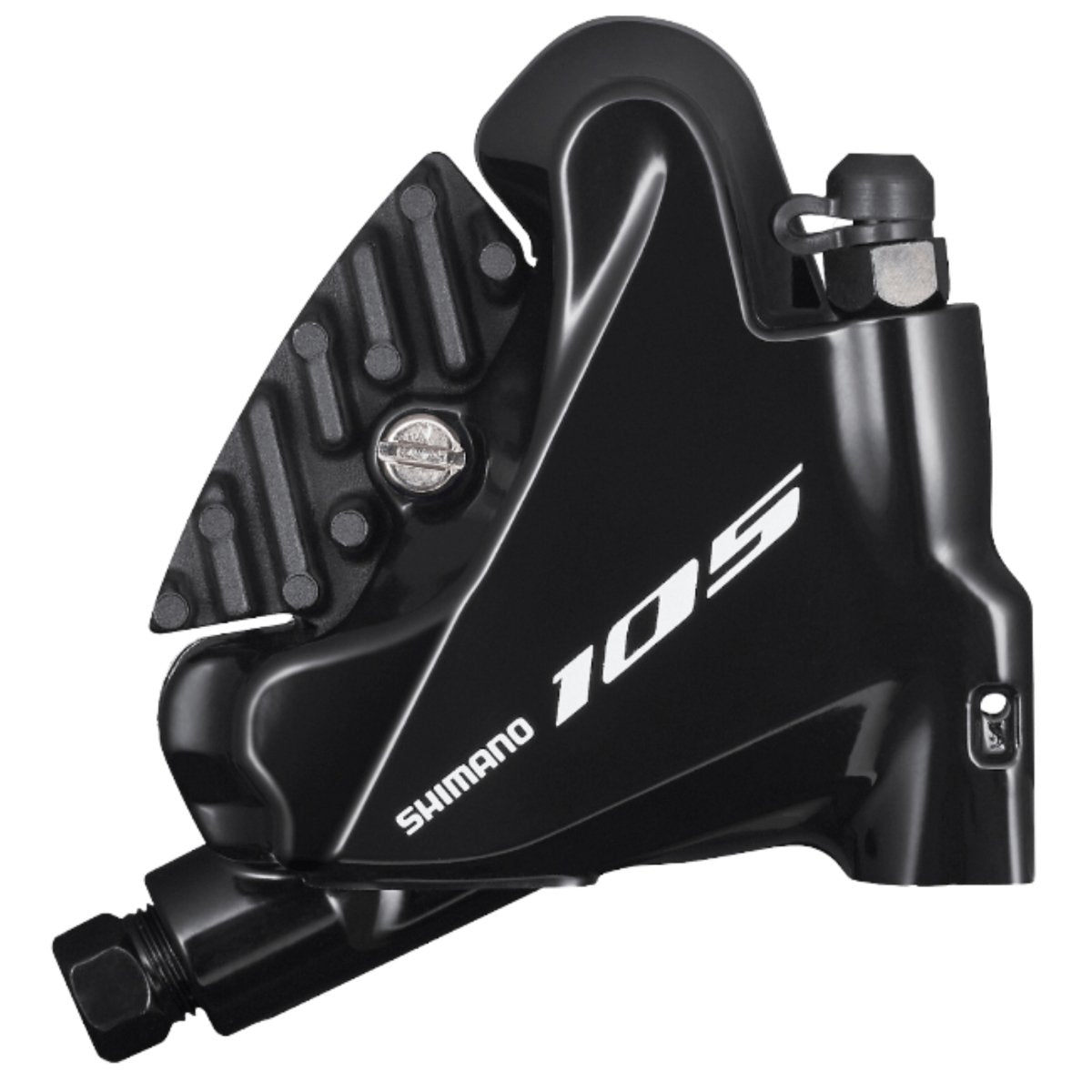

Shimano 105 BR-R7070 Flat Mount Hydraulic Disc Brake Caliper
IBRR7070F4RFL
Shimano 105 BR-R7070 Flat Mount Hydraulic Disc Brake Caliper - Master Your Braking Control!
Shimano 105 - Flat Mount - Hydraulic Disc Brake - Front & Rear Caliper
Superior Braking Performance for Every Ride: Empower your cycling adventures with the all-new Shimano 105 BR-R7070 Flat Mount Hydraulic Disc Brake Caliper. Designed for exceptional rider control in all conditions, these hydraulic disc brakes elevate your braking performance to new heights.
Front & Rear Caliper - Flat Mount: The Shimano 105 Flat Mount Hydraulic Disc Brake Caliper is available for both front and rear installations, ensuring consistent and powerful braking control at every wheel.
Greater Rider Control with Hydraulic Disc Brakes: Experience unparalleled rider control with hydraulic disc brakes. The R7000 series offers superior modulation, responsiveness, and stopping power, boosting your confidence on any terrain.
One Way Bleeding for Easy Maintenance: With the convenient One Way Bleeding system, maintenance becomes a breeze. Keep your brakes in optimal condition effortlessly and enjoy a smooth and hassle-free ride.
Easy Hose Joint System for Effortless Setup: The Shimano 105 Hydraulic Disc Brake Caliper comes with an easy hose joint system, simplifying the installation and adjustment process. Spend less time on setup and more time on your thrilling rides.
Choose Between Silver and Black Finishes: Express your style with a choice of silver or black finishes for the R7070 caliper. Match it seamlessly with your bike's aesthetics and ride in style.
Features
Features of Shimano 105 BR-R7070 Flat Mount Hydraulic Disc Brake Caliper
Greater Rider Control in All Conditions: Feel confident and in control, whether you're riding on wet roads or tackling challenging terrains.
Excellent Heat Dissipation: The advanced design ensures efficient heat dissipation, preventing brake fade and maintaining consistent performance.
Ice Technologies: Benefit from the innovative Ice Technologies, which provide improved heat management and cooling for optimal braking performance.
Simple Set up and Maintenance: Enjoy hassle-free installation and easy maintenance, allowing you to spend more time on the road.
Convenient Tool Access: Easily make adjustments and fine-tune your braking system with convenient tool access for seamless customization.
Easy Hose Joint System (J-kit): Streamlined hose joint system simplifies installation and ensures secure connections for reliable performance.
Simple Wheel Replacement: Quick and easy wheel replacement thanks to the user-friendly design of the caliper.
Easy and Clean Bleeding System: Keep your brakes in top condition with the easy and clean bleeding system, ensuring consistent performance.
One Way Bleeding: The one-way bleeding system simplifies maintenance and enhances overall brake performance.
Specifications
Specifications of Shimano 105 BR-R7070 Flat Mount Hydraulic Disc Brake Caliper
Model No |
BR-R7070-F | BR-R7070-R |
---|---|---|
Series | Shimano 105 R7000 Series | Shimano 105 R7000 Series |
Color | Silky Black | Spark Silver | Silky Black | Spark Silver |
Average Weight | 141 | 124 |
Brake Type | Hydraulic Disc Brake | Hydraulic Disc Brake |
Brake Hose (Kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR | SM-BH90-JK-SSR, SM-BH90-J-SSR |
Hose Joint | Straight | Straight |
Brake Hose Color (Kit)|1 | Black | Black |
J-Kit Spec (for OEM) | Yes | Yes |
Ice Technologies Pad Compatible Caliper | Pad Axle | |
Pad_Standard 1 | K05S-RX Resin (w/o fin) | K05S-RX Resin (w/o fin) |
Pad_Standard 2 | L05A-RF Resin (w/ fin) | L05A-RF Resin (w/ fin) |
Pad_Option 1 | K04S-MX Metal (w/o fin) | K04S-MX Metal (w/o fin) |
Pad_Option 2 | L04C-MF Metal (w/ fin) | L04C-MF Metal (w/ fin) |
Fixing Screw Spec For Rear Mount (mm) |
- | 10, 15, 20, 25, 30, 35 |
Recommended Brake Lever |
ST-R7020 ST-R7025 | ST-R7020 ST-R7025 |
Recommended Disc Brake Rotor | SM-RT70 | SM-RT70 |
Oil | Shimano Mineral | Shimano Mineral |
One Way Bleeding |
Yes | Yes |
Mount Type | Flat mount | Flat mount |
Piston | 2 | 2 |
Caliper Fixing Bolt|Tool Size | 4 mm | 4 mm |
Caliper Fixing Bolt|Anti Loosen Method | Screw Fix Pin+Snap Ring | Screw Fix Pin |
Pad Mount | Pad Axle | Pad Axle |
Technologies
Technologies of Shimano 105 BR-R7070 Flat Mount Front Hydraulic Disc Brake Caliper

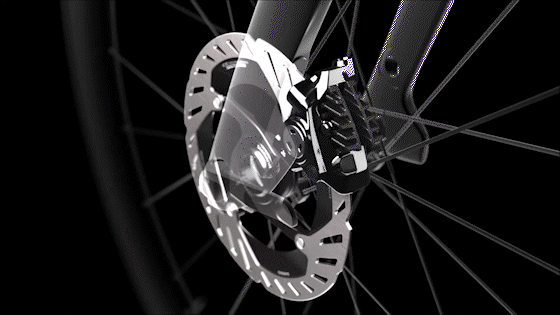

Ice Technologies:
Shimano Ice Technologies components deliver more consistent braking performance by reducing heat buildup in the system. This helps prevent brake fade, which can happen when a rider applies the brakes repeatedly and strongly over a short period of time, such as when descending a long, steep hill.
Shimano Ice Technology disc brake rotors and pads reduce heat buildup and provide consistent and reliable braking power available. The rotors feature a 3-layer stainless steel-aluminum-stainless steel sandwich design that radiates heat for better performance. The brake pads have an aluminum radiating fin that helps dissipate heat throughout the system.
Together, Ice Technology rotors and brake pads deliver a quieter ride while reducing brake fade and extending pad life for a more reliable and confident riding experience.
Ice Technology Pad: Available in resin or metal compound, the optional radiation fin pad with a 2-layer back plate (aluminum fin with stainless steel) further improves radiation performance.
Ice Technology Rotor: Clad rotors as well as Clad Brake pads significantly reduce heat build-up in the brake system. This in turn reduces fading, which ensures consistent high performance even on long downhill stretches, It also results in a longer pad life and substantially quieter braking.
Ice Technologies Freeza: Ice Technologies Freeza rotors utilize the 3-layer stainless steel-aluminum-stainless steel sandwich structure to reduce heat buildup.
The inner aluminum layer extends inward with a wide exposed radiator fin that boosts its cooling capabilities.
Ice Technology Hose: SM-BH90-SBLS long banjo hose reduces heat at a critical location where heat transmitted from caliper to hose.

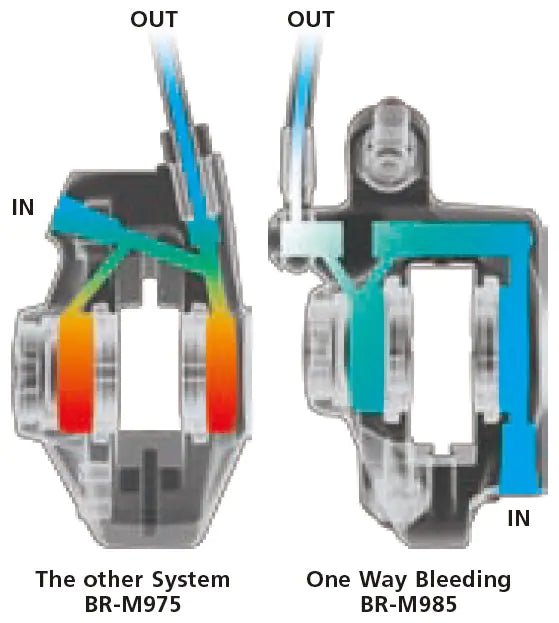

One Way Bleeding:
“One Way Bleeding” was developed for quick and easy prevention of air in our hydraulic system. We have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.
One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.
