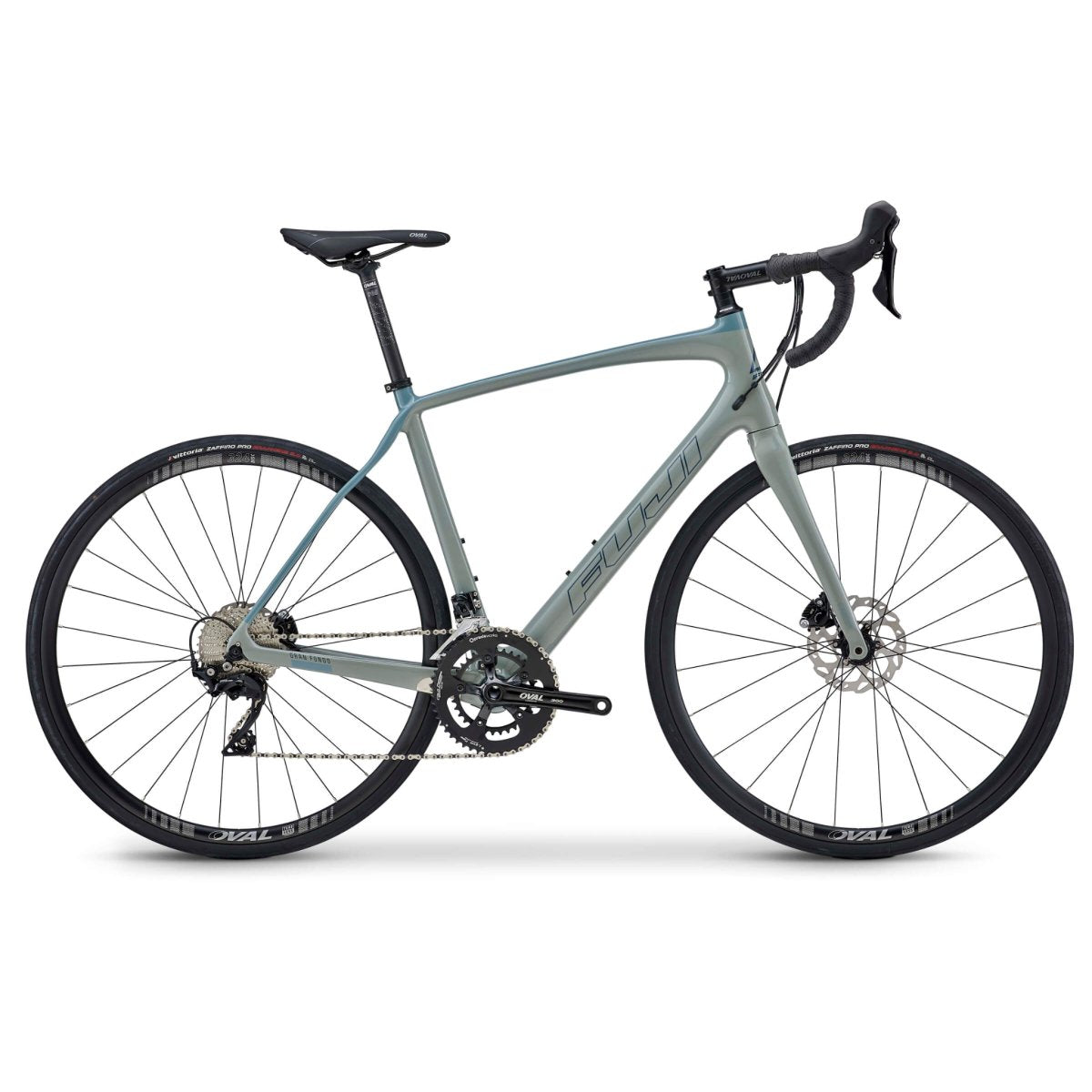

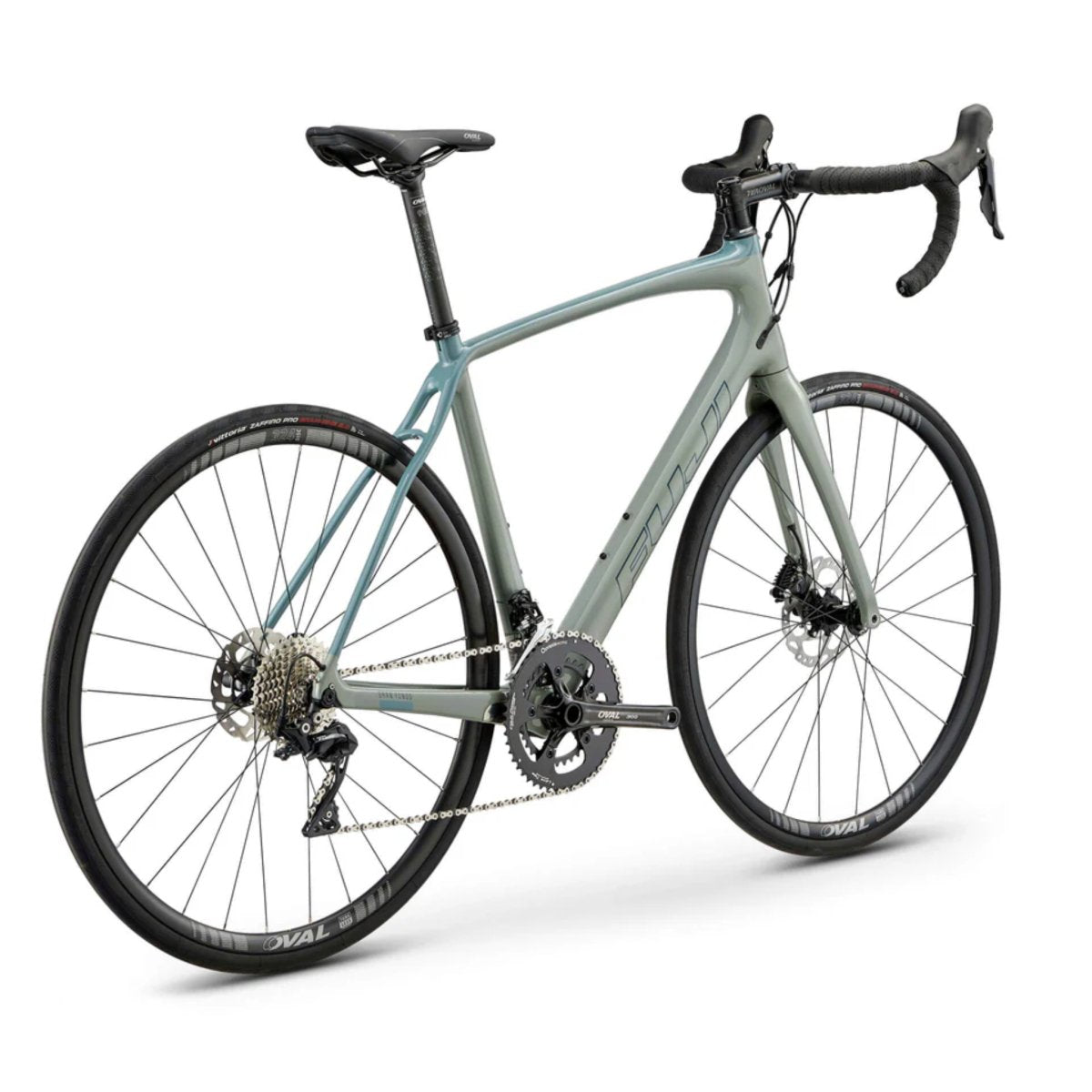

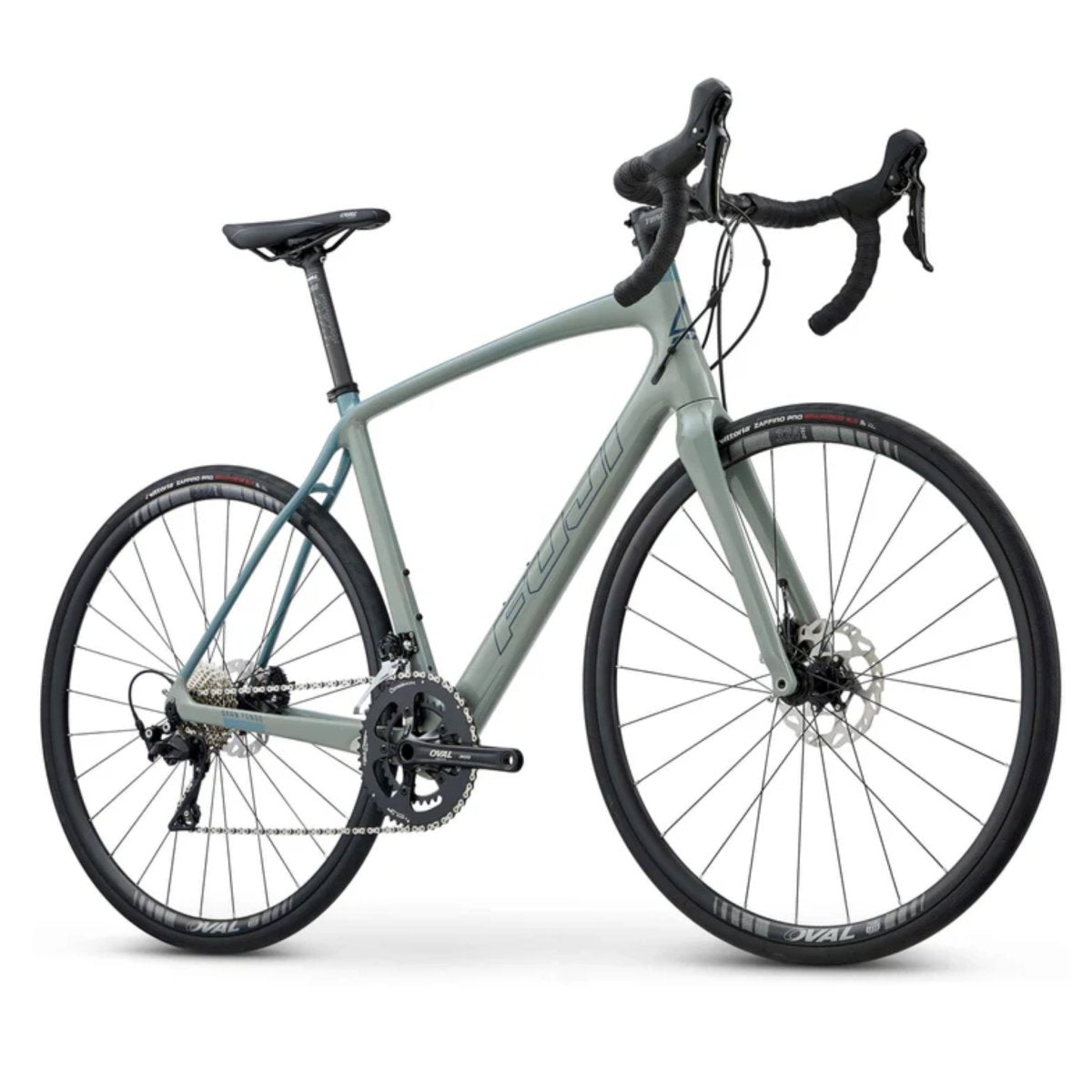

Fuji Gran Fondo 1.3 Road Bicycle
Fuji Gran Fondo 1.3 Road Bicycle
Experience the Ultimate All-Day Ride: The Fuji Gran Fondo 1.3 Road Bicycle is designed to deliver a smooth and fast ride on all-day cycling adventures, regardless of road conditions. With its high-modulus carbon frame and Vibration Reduction Technology, this bike ensures comfort on climbs and confidence on descents, allowing you to ride strong for miles.
Ride Longer, Feel Less Fatigue: The Gran Fondo features Vibration Reduction Technology (VRTech), utilizing polyurethane treated natural fiber strategically placed within the carbon layup. This technology effectively dissipates high-frequency vibrations, reducing road vibration by an impressive 24.6%. Say goodbye to fatigue and enjoy longer rides in comfort.
Innovative Wave Seat Stays: Experience a smoother ride with the Wave seat stays. These unique seat stays disrupt and diffuse road vibration, providing vertical flex and increasing your overall comfort on the bike. Enjoy a more enjoyable and stable ride.
Endurance Geometry for Optimal Performance: Benefit from the Gran Fondo's endurance geometry, which offers a more upright riding position. With a taller headtube and longer chainstay, this geometry enhances bicycle stability and provides a fast and spirited ride without the discomfort of an aggressive race posture.
Ultra-Lightweight Carbon Construction: Crafted from high-modulus carbon, the Gran Fondo 1.3 delivers an impressive strength-to-weight ratio. The ultra-lightweight frame ensures a high-performance experience, allowing you to tackle any challenge with ease.
Specifications
Specifications of Fuji Gran Fondo 1.3 Road Bicycle
| Frame | C10 high-modulus schedule process, VRTech, 142x12mm thru-axle, fender mounts |
| Fork | C10 high-modulus schedule process, VRTech, tapered carbon steerer, 100x12mm thru-axle, hidden fender eyelets |
| Crankset | FSA Gossamer Pro 386EVO, 50/34T |
| Bottom Bracket | FSA PF30 |
| Derailleur | Front & Rear: Shimano 105 |
| Shifters | Shimano 105 Dual Control, 2 x 11-speed |
| Cassette | Shimano 105, 11-34T |
| Chain | KMC X11 |
| Wheelset | Oval Concepts 324 Disc, 24/28H |
| Tires | Vittoria Zaffiro Pro V, G2.0, 700 x 30c, 26tpi, folding |
| Tubes | 700 x 30 presta |
| Brakeset | Shimano 105, hydraulic disc, 160/140mm rotors |
| Brake Levers | Shimano 105, hydraulic disc |
| Headset | FSA, 1 1/8” upper - 1 1/2” lower, integrated |
| Handlebar | Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep |
| Stem | Oval Concepts 313, 3D-forged 6061, +/-6° |
| Tape | Selle Italia Smootape Corsa |
| Saddle | Selle Italia X3 Boost |
| Seatpost | Oval Concepts 905, carbon, 27.2mm |
| Size | S (52cm), M (54cm), L (56cm) |
| Color | Pearl Slate |
Geometry
Geometry of Fuji Gran Fondo 1.3 Road Bicycle
| Size | XXS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Seat Tube Center To Top | 420 | 450 | 480 | 500 | 520 | 540 | 570 |
| Seat Tube Effective | 460 | 490 | 520 | 540 | 560 | 580 | 610 |
| Top Tube Effective | 505 | 515 | 530 | 545 | 560 | 580 | 600 |
| Head Tube Length | 100 | 125 | 150 | 170 | 190 | 215 | 235 |
| Seat Tube Angle | 75° | 74.5° | 73.75° | 73.5° | 73° | 73° | 73° |
| Headtube Angle | 71 | 71.5 | 71.5 | 73 | 73 | 73 | 73 |
| Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase | 984 | 987 | 990 | 984 | 993 | 1013 | 1033 |
| Bottom Bracket Drop | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Offset | 52 | 52 | 52 | 43 | 43 | 43 | 43 |
| Trail | 61.7 | 58.6 | 58.6 | 58.7 | 58.7 | 58.7 | 58.7 |
| Stack | 506 | 531 | 557 | 582 | 602 | 625 | 645 |
| Reach | 369 | 368 | 368 | 373 | 376 | 389 | 403 |
| Standover | 708 | 736 | 764 | 788 | 808 | 829 | 853 |
| Stem | 80 | 90 | 90 | 100 | 100 | 120 | 120 |
| Handlebar Width | 380 | 400 | 400 | 420 | 420 | 440 | 440 |
| Crank | 165 | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
