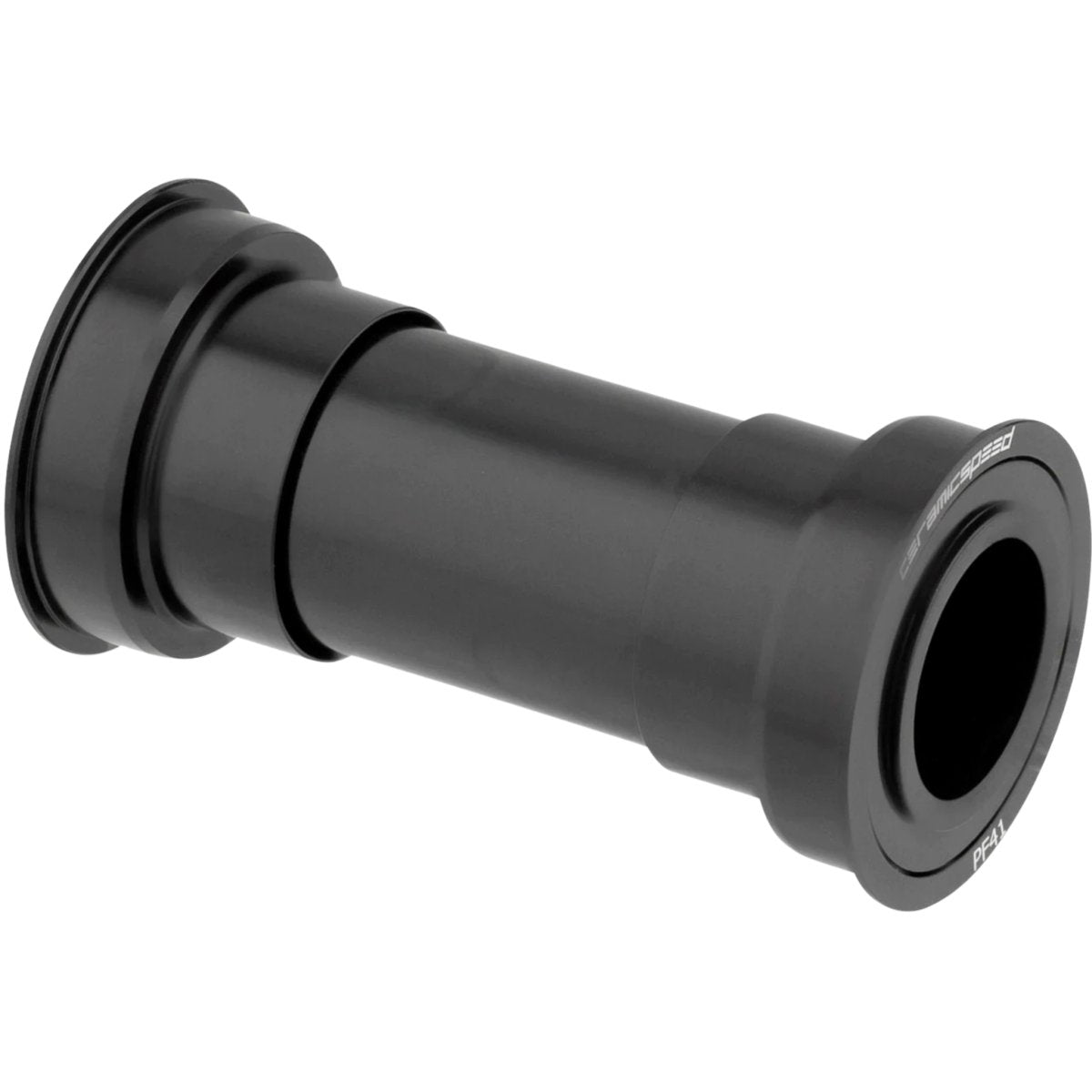

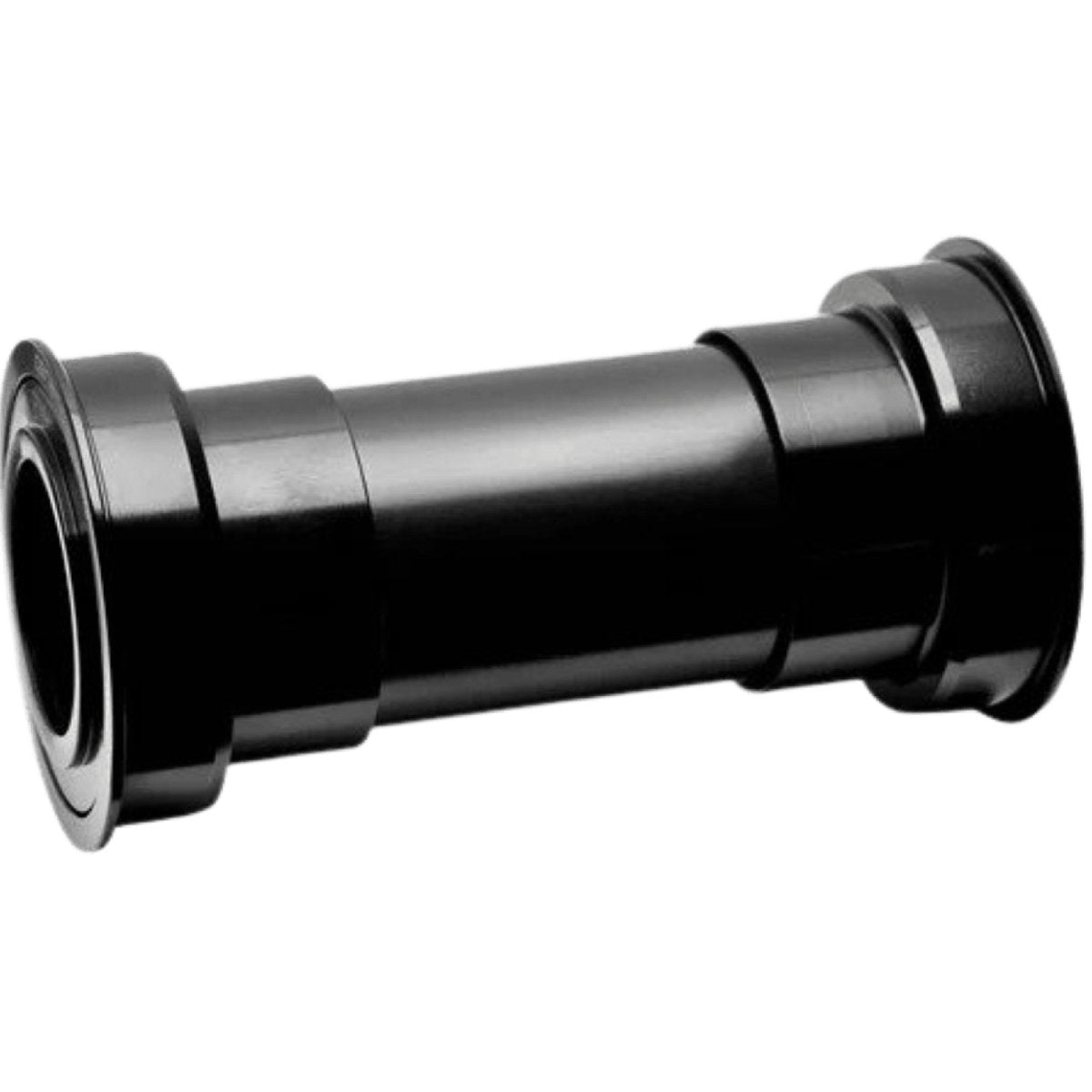

CeramicSpeed BB86 Bottom Bracket for Shimano


Regular priceâ‚ą28,999
Tax included. Shipping calculated at checkout.
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

Experience unmatched performance and precision with the CeramicSpeed BB86 Bottom Bracket for Shimano. Crafted to perfection, this bottom bracket elevates your cycling experience to new heights.

Perfect Fit for Shimano Cranks:

Designed specifically for Shimano cranks, the BB86 Bottom Bracket seamlessly fits into BB86 frames, ensuring a secure and efficient connection for your bike's drivetrain.

High-Quality CeramicSpeed Bearings:

Included in the kit are two cups, expertly pressed into the central opening of the frame. These cups come equipped with top-of-the-line CeramicSpeed Bearings, offering exceptional smoothness and reduced friction.

Two Versatile Bearing Options:

Choose from two bearing options to suit your riding preferences. The first is the Standard Bearing, designed for low drag and long-lasting durability. It boasts hardened-steel races and our renowned super round CeramicSpeed Balls for optimal performance.

Enhanced Performance with Coated Bearings:

Opt for the second option, the Coated Bearing, for even more impressive benefits. It features the same CeramicSpeed Balls but with the added advantage of coated, hardened-steel races. The result is increased bearing life and reduced drag, translating to smoother rides and improved efficiency.

Unleash Your Cycling Potential:

Upgrade your bike with the CeramicSpeed BB86 Bottom Bracket for Shimano and experience the difference. Enjoy smoother pedaling, reduced friction, and longer-lasting bearings, all engineered to take your cycling performance to the next level.


Technical Data of CeramicSpeed BB86 Bottom Bracket for Shimano

This CeramicSpeed BB86 Bottom Bracket works with cranks that have 24mm thru-axle spindles, including both Shimano and FSA.

CeramicSpeed standard Bearings typically have frictional drag of 0.3-0.4 watts per set. That represents an average 75% drag reduction compared to standard bottom brackets. The hardened-steel races feature the CeramicSpeed Balls that are 100% smoother and 15% harder than the ceramic competition. The CeramicSpeed Bearings last at least three times longer than other bearings.

Coated Bearings drop friction further and increase lifespan. The coated races see a 50% drag reduction and an improvement in bearing life of 60%.

Changing the grease can tune performance. All Round Grease comes installed, but can be changed for lower drag Race Day Grease, or higher durability Long Life Grease, which adds a bit of drag but stays in when riding through messy conditions.


Our coated products are covered by a lifetime warranty. The unique coating formula is a metallic layer that covers the bearing races and makes them 75% harder than steel. Thanks to this, they are highly resistant to corrosion and the coating provides even lower friction than our standard bearings. Even if the bearing is contaminated with degreaser, water, or mud, the risk of bearing failure due to corrosion is negligible if you choose the coated version.


Specifications of CeramicSpeed BB86 Bottom Bracket for Shimano

Discipline Road and Tri
Derailleur Brand Shimano
Type Pressfit
Bearing Type Ceramic
Shell Width 86.5 mm
Spindle Diameter 24 mm
Net Weight 78.0 g
Gross Weight 133 g

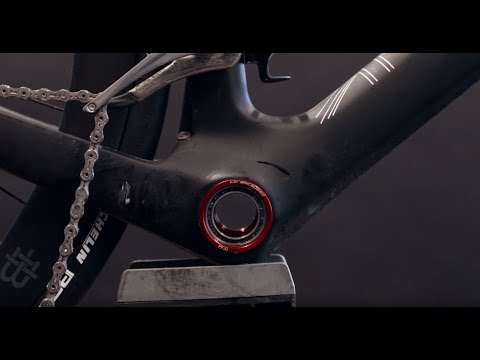

General Maintenance for CeramicSpeed Bottom Bracket and Wheel Bearings

Overview for how to clean and maintain CeramicSpeed Bearings used in Bottom Brackets and Wheel Hubs.

It is always important to follow these instructions and apply the proper maintenance to your CeramicSpeed Bottom Brackets and Bearings in order to achieve the lowest friction and the best longevity.

In The Box

Box Contents of CeramicSpeed BB86 Bottom Bracket for Shimano

  • 2 bottom bracket cups with bearings installed
  • 2 dust covers with integrated spacers installed
  • Spacer tube
  • All Round Grease
  • Sticker sheet
