Frame geometry per size, from Quick Pro's published TR:ONE geometry chart.
| Size | Seat Tube (mm) | Top Tube (mm) | Head Tube (mm) | Stack (mm) | Reach (mm) | Standover (mm) |
|---|---|---|---|---|---|---|
| XS (528) | 528 | 484 | 62 | 516 | 374 | 785 |
| S (537) | 537 | 507 | 72 | 525 | 395 | 794 |
| M (557) | 557 | 535 | 88 | 540 | 420 | 809 |
| L (572) | 572 | 563 | 108.5 | 560 | 443.5 | 829 |
Seat tube angle 78° on all sizes. Head tube angle 72.5° (XS) and 73° (S to L).
2 in-stock Quick Pro options at The Bike Affair, from ₹244,999.

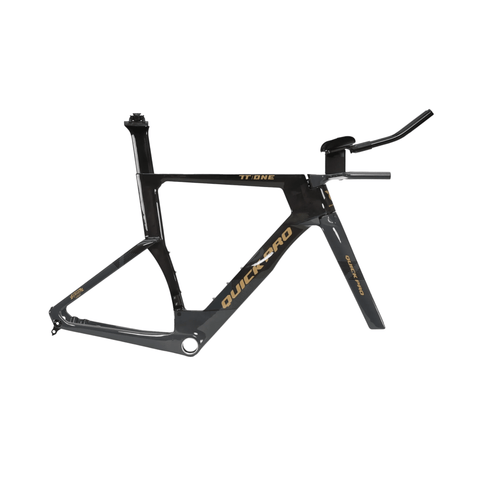

Quick Pro TT ONE Frameset with Cockpit
₹333,000
Sizes in stock: XXS · XS
₹244,999
Sizes in stock: L
Once you have your size from the chart above, you can order the Quick Pro TR ONE directly from The Bike Affair. We currently have 2 in-stock options ranging from ₹244,999 to ₹333,000, with prices shown in INR and inclusive of GST.
We ship nationwide from our store in Kondapur, Hyderabad, with free delivery on orders over ₹2,000. If you would rather see the bike before you buy, you are welcome to visit us in person — our team can check the fit against your riding position.
If your measurements fall between two frame sizes, reach and stack matter more than the number on the chart. Send us your height and inseam and we will tell you which one to take.
