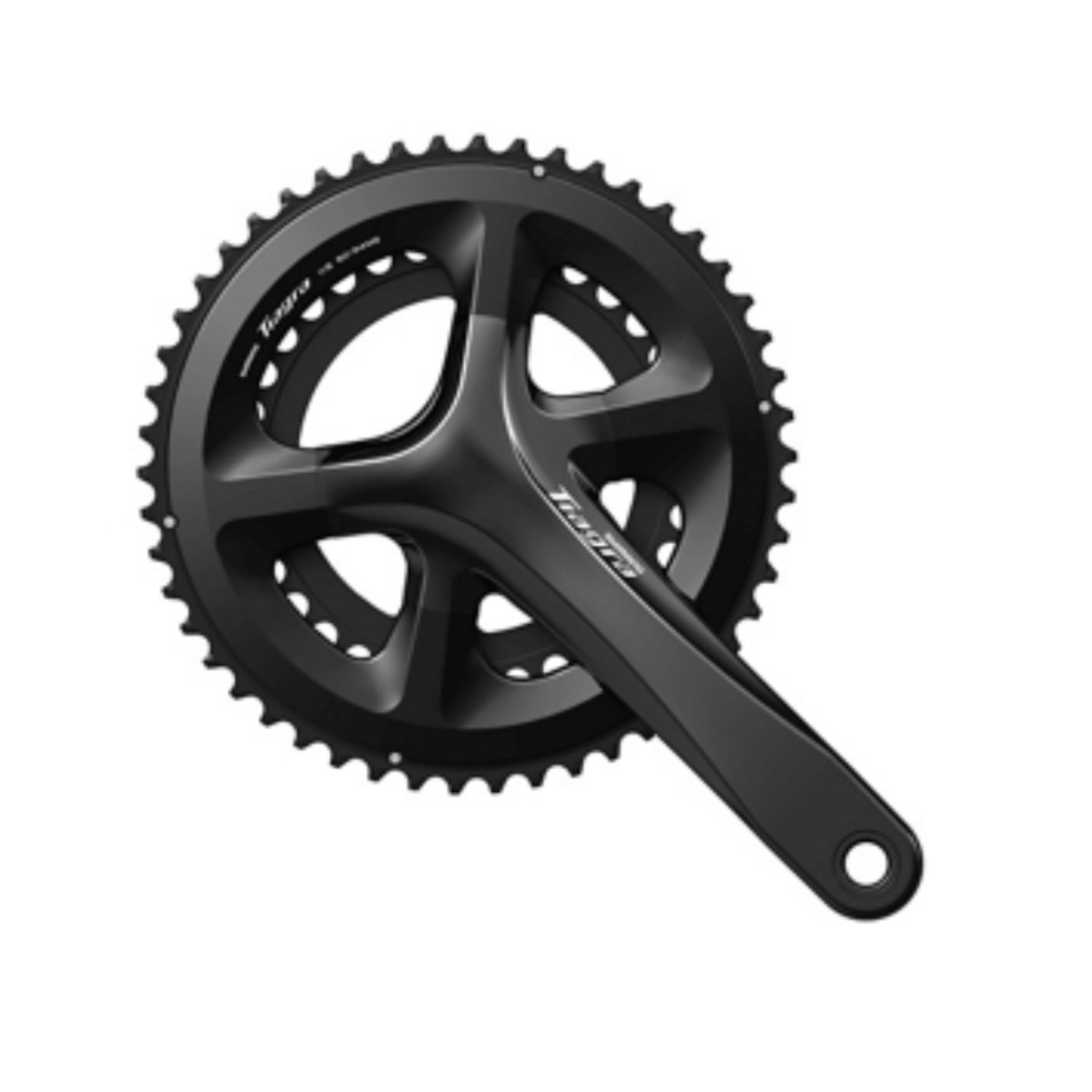

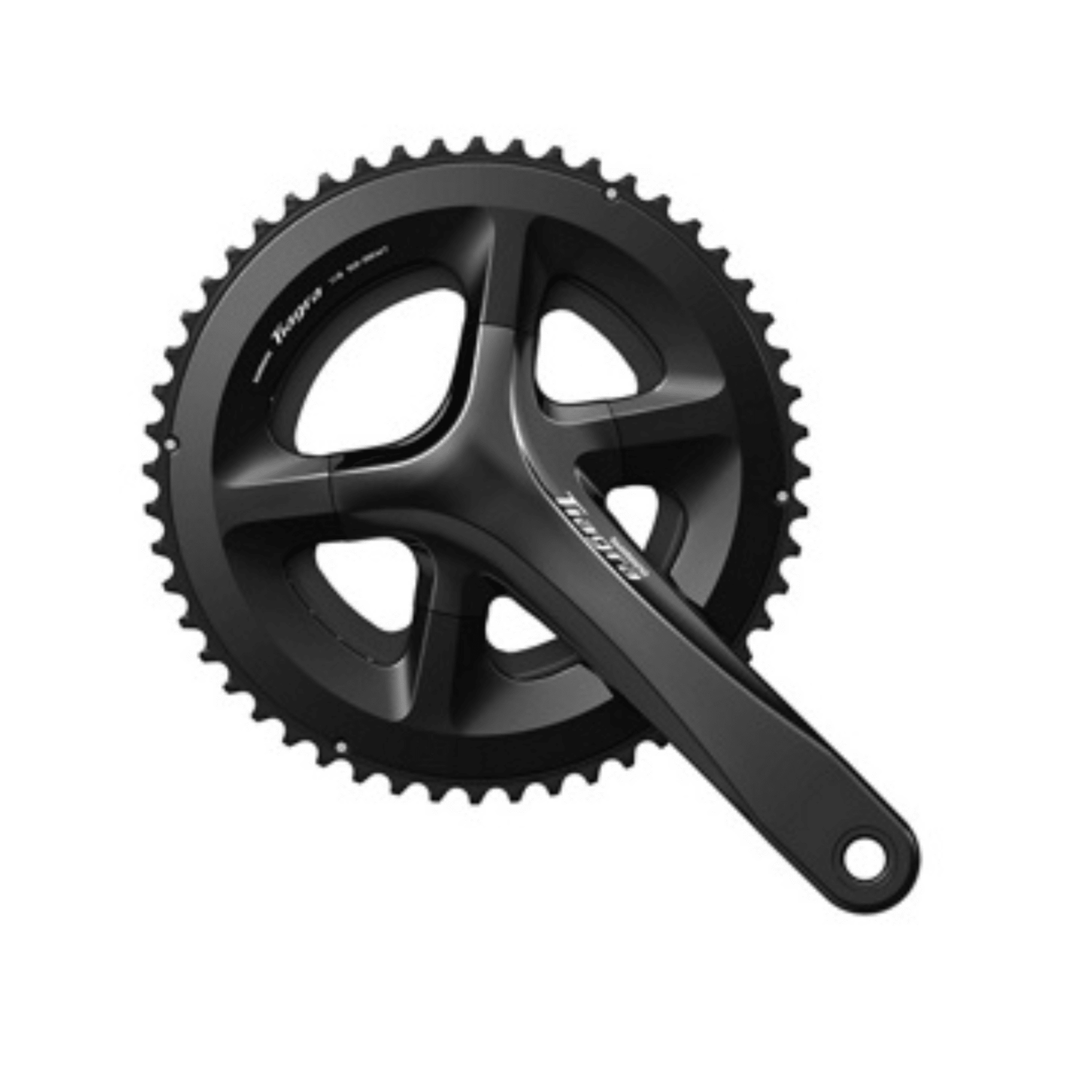

Shimano Tiagra FC-R4000 2x11 Speed Front Chainwheel

EFCR4000AX04
₹12,100
Length
Teeth

Estimated Shipping Widget will be displayed here!

Efficient Road Crankset with High-End Design DNA

Overview

Shimano Tiagra FC-R4000 2x11 Speed Front Chainwheel is designed for road cyclists who want reliable performance, smooth efficiency and dependable power transfer. It brings design influence from Shimano’s higher-end road groupsets into a practical Tiagra-level crankset.

Balanced Weight And Stiffness: The crank is built to deliver a strong balance of low weight, efficiency and stiffness. This helps riders maintain better pedalling response while keeping the setup practical for training, fitness rides and regular road cycling.

Road-Specific Gear Options: Available in 52-36T and 50-34T chainring combinations, the FC-R4000 allows riders to choose gearing based on their riding style and terrain. The compact and semi-compact options make it suitable for climbing, endurance rides and faster road efforts.

Multiple Crank Lengths: With crank arm lengths of 165, 170, 172.5 and 175 mm, riders can select a size that better suits their fit and pedalling preference. This helps improve comfort, cadence and control during longer rides.

Shimano Tiagra FC-R4000 2x11 Speed Front Chainwheel offers a stiff, efficient and reliable crankset option for 2x11 speed road drivetrains.

Features

  • Road Design Influence: Inherits Shimano high-end road crank design DNA for a refined balance of weight and efficiency.
  • Stiff Power Delivery: 2-piece crank structure improves rigidity, helping transmit pedaling force more efficiently.
  • Chainring Choices: Available in 50-34T and 52-36T combinations to suit compact or semi-compact road gearing needs.
  • Multiple Arm Lengths: Offered in 165, 170, 172.5 and 175 mm crank arm lengths for rider fit preference.
  • Wide Bearing Support: Outboard bottom bracket design places bearings wider for better stability and power transfer.

Technology

  • 2-Piece Crank Set: Integrated crank arm and bottom bracket design increases rigidity, reduces weight and improves pedaling efficiency.

Specifications

  • Model No: FC-R4000
  • Series: Tiagra
  • Rear Speeds: 11
  • Compatible Chain: Linkglide, HG 11-Speed
  • Chain Line (mm): 43.5
  • P.C.D. (mm): 110
  • Spider/Gear Arms: 4
  • Chainring Combination: 50-34T, 52-36T
  • Q-Factor (mm): 150
  • Crank Arm Length (mm): 165, 170, 172.5, 175
  • Optional Chain Guard|Without Chain/Bash Guard: Yes
  • 2-Piece Crankset: Yes
  • Compatible Bottom Bracket Type|Outboard: Yes
  • Recommended Bottom Bracket|Threaded (Normal): BB-RS501
  • Recommended Bottom Bracket|Press-Fit: BB-RS500-PB
  • Threaded Bottom Bracket Shell Width (mm): 68, 70
  • Crank Fixing Screw Included: Yes
