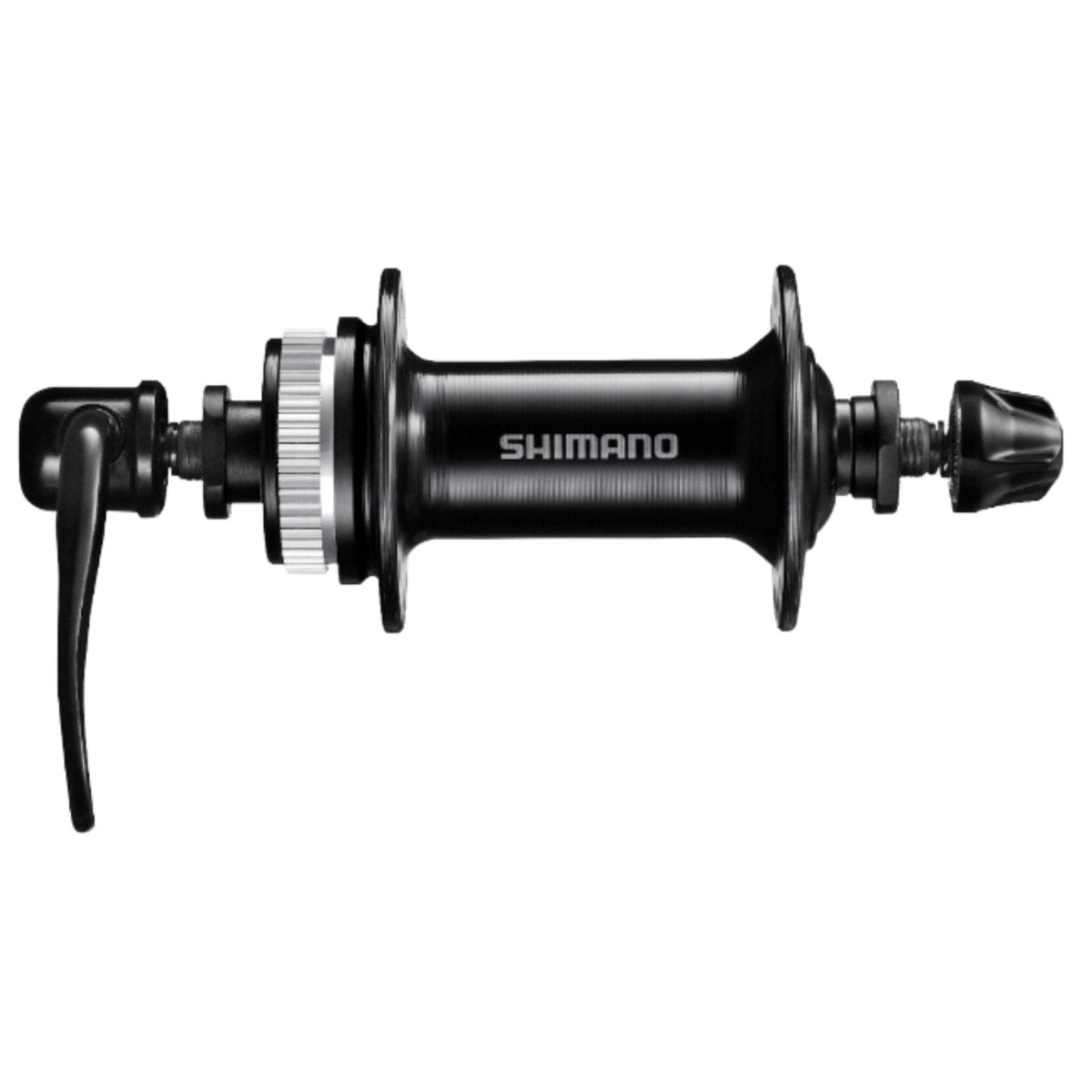

Shimano Tourney HB-TX505 Front Hub

EHBTX505B5
₹720
Holes

Estimated Shipping Widget will be displayed here!

Reliable and High-Performance Front Hub for Disc Brake MTBs

Overview

Upgrade your mountain biking adventures with the reliable and high-performance Shimano Front Hub HB-TX505. Designed specifically for disc brake MTBs, this front hub guarantees smooth and efficient rides, providing you with the confidence to conquer any trail.

Unmatched Stability and Control: The Shimano Tourney TX Front Hub features a Center Lock design, ensuring maximum stability and precise handling during your rides. Feel the confidence of responsive braking and control on any terrain, thanks to its compatibility with disc brakes.

Easy Installation and Quick Release: Simplify your bike maintenance routine with the quick-release feature of the Shimano TX505. Swiftly and effortlessly install or remove your front wheel, saving time and effort whenever needed.

Built to Last: Crafted with Shimano's renowned quality and durability, the HB-TX505 front hub is engineered to withstand the toughest conditions, delivering long-lasting performance and reliability for your off-road endeavors.

Features
  • Enhanced Riding Experience: The Shimano Tourney HB-TX505 front hub is designed specifically for disc brake mountain bikes, offering smooth and efficient performance that boosts your confidence on any trail.
  • Unmatched Stability and Control: With the Center Lock design, this hub ensures maximum stability and precise handling, providing responsive braking and control across varied terrains.
  • Quick Release for Easy Installation: The quick-release feature simplifies your maintenance routine, allowing swift and effortless installation or removal of your front wheel.
  • Durable Construction: Built with Shimano's renowned quality, the HB-TX505 is crafted to endure tough conditions, delivering long-lasting performance and reliability for your off-road adventures.

Technology

  • Center Lock Technology: The Center Lock system allows for easy and secure rotor installation with a spline mount and lock ring, reducing installation time and enhancing braking efficiency through secure and precise mounting.

Specifications
  • Model No: HB-TX505
  • Series: Shimano Tourney TX
  • Color: Black (Hub Shell and Quick Release)
  • Brake Type: Center Lock Disc Brake
  • O.L.D. (Over Locknut Dimension): 100mm
  • Spoke Hole Options: 28H, 32H, 36H
  • External Serration Disc Brake Rotor Lock Ring: Without
  • Axle Fixing Method: Quick Release
  • Quick Release Skewer Length: 129mm, 133mm
  • Flange Distance: 60.2mm
  • Offset: 5.3mm
  • P.C.D. (Pitch Circle Diameter) Left/Right: 44/44mm
  • Flange Diameter Left/Right: 52.8mm (32H/36H), 53.8mm (28H)
  • Seal: Contact
