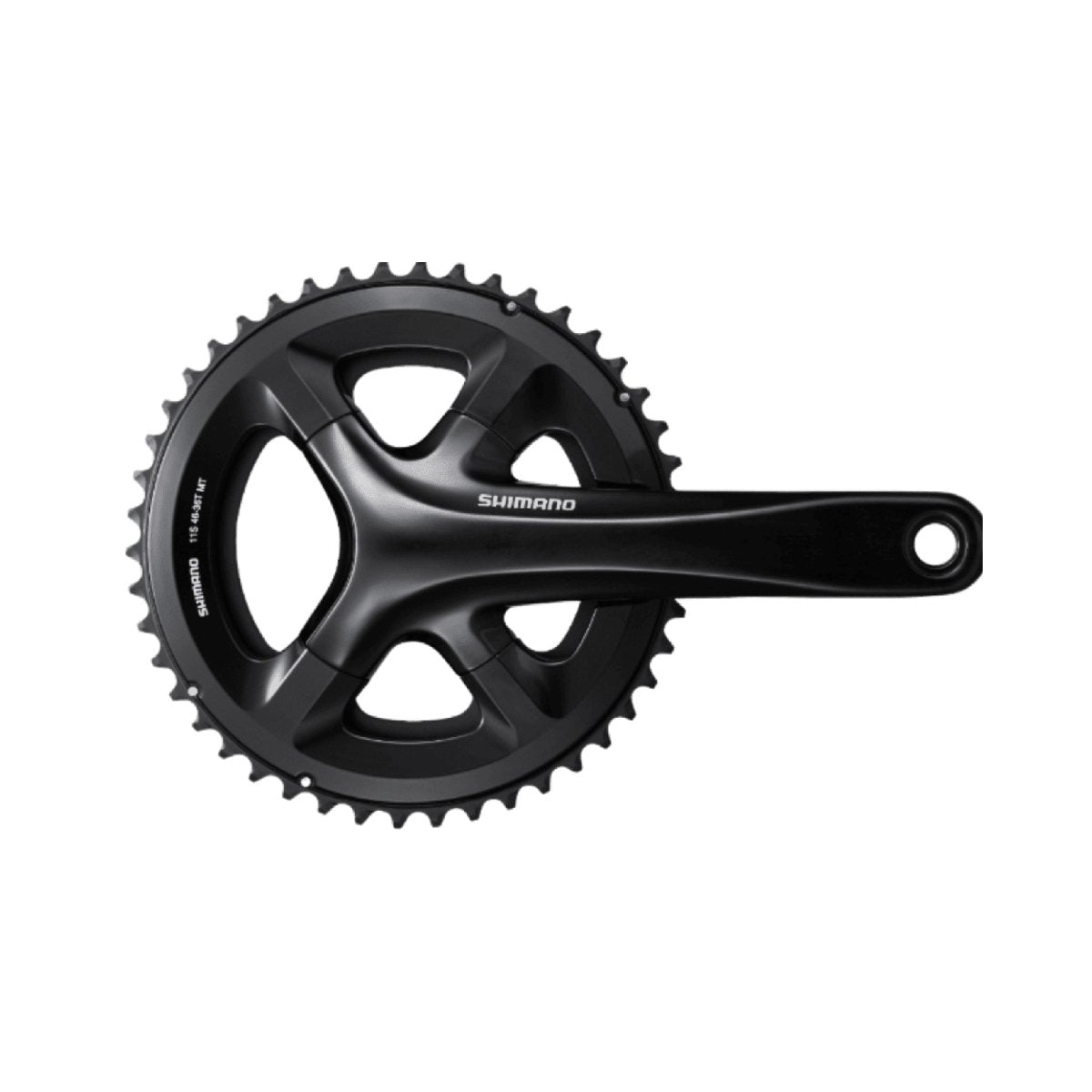

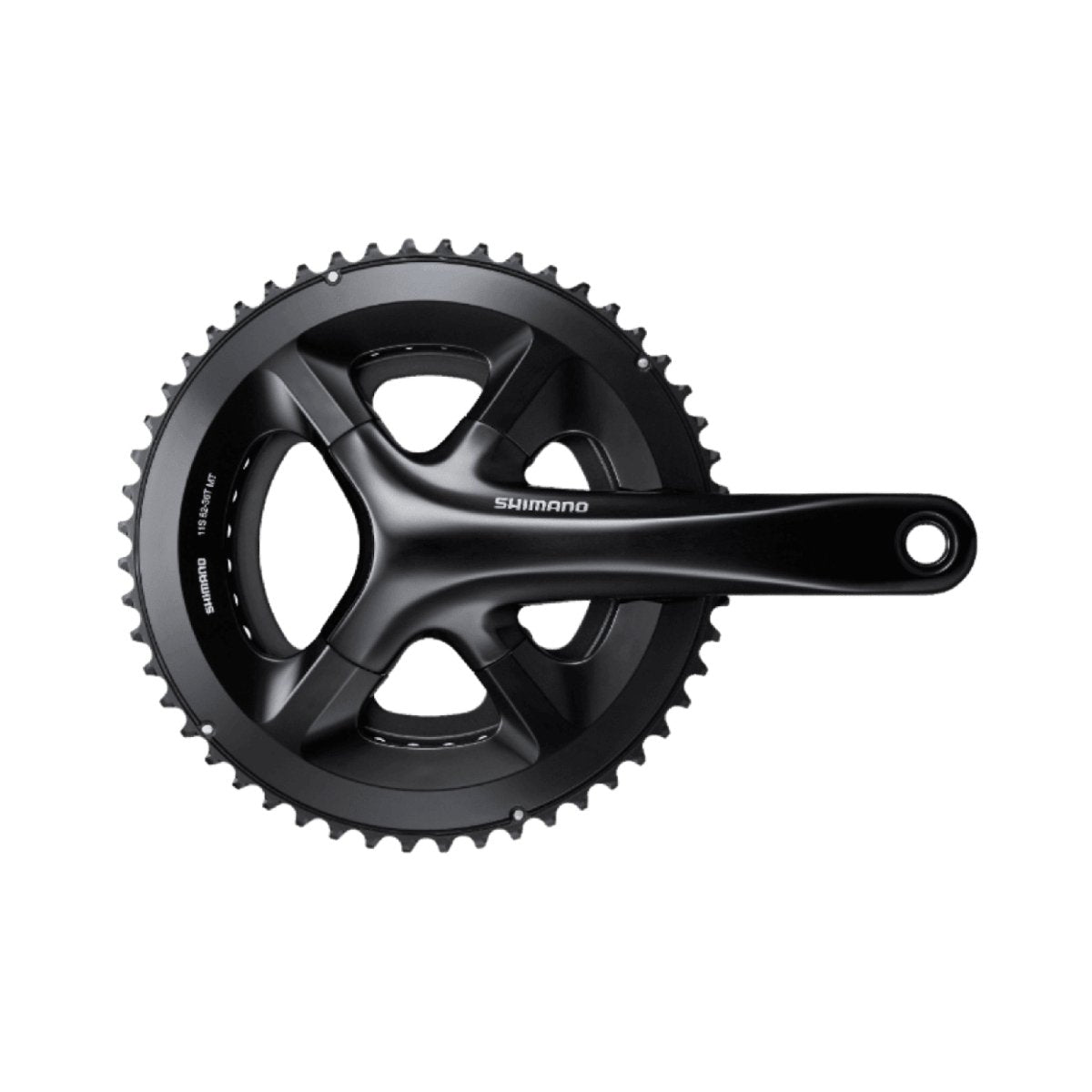

Shimano FC-RS510 11 Speed Front Chainwheel

EFCRS510CX04X
₹11,820
Length
Size

Estimated Shipping Widget will be displayed here!

Versatile and Efficient Crankset Upgrade

Overview

Elevate your road biking experience with the Shimano FC-RS510 11 Speed Front Chainwheel. This 2-piece crankset delivers top-notch performance with its outboard, 24mm bottom bracket, and 2x11-speed drivetrain. Whether you choose the 52-36T, 50-34T, or 46-36T compact chainrings, this crankset is designed to enhance your cycling performance.

Versatile 2x11-Speed Design: Designed for precision and efficiency, the FC-RS510 front chainwheel offers a versatile 2x11-speed setup. Enjoy a wide range of gear options for tackling various terrains and riding scenarios with ease.

Robust 4-Arm Construction: Built with a robust 4-arm construction, the FC-RS510 ensures optimal power transfer and stability during your rides. Experience a reliable and efficient pedaling experience, empowering you to push your limits on the road.

Outboard 24mm Bottom Bracket: The outboard, 24mm bottom bracket design further enhances the crankset's performance and compatibility with modern road frames. Benefit from smooth and consistent rotations, allowing you to maintain a steady pace on any ride.

Compatible with Modern Disc Brake Road Frames: The Shimano FC-RS510 11 Speed Front Chainwheel is fully compatible with modern disc brake road frames. Embrace the latest technology and enjoy precise and reliable braking performance on your road adventures.

Choose from three chainring options - 52-36T, 50-34T, or 46-36T - to suit your preferred gear ratios and riding style. Personalize your setup for optimal comfort and efficiency.

Features
  • Affordable High-End Style: Combines premium aesthetics with an accessible price point.
  • Optimized Design: 4-arm crankset supports 11-speed drivetrains with gear combinations of 52-36T, 46-36T, and 50-34T.
  • Broad Compatibility: Fits frames with O.L.D. 135 mm and 410 mm chainstay lengths for versatile setups.

Technologies

  • HG-EV: Rider-tuned gear combination ensures optimal cadence management with 11-speed durability and improved Hyperglide shifting.
  • HG-X11 Chain: Directional design enables smoother, more accurate shifts with optimized performance for front and rear shifting.
  • 2-Piece Crank Set: Integrated crank arm and bottom bracket increase rigidity, reduce weight, and efficiently transmit pedaling force with low-maintenance precision bearings.

Specifications
  • Model No: FC-RS510
  • Series: Shimano
  • Color: Black
  • Rear Speeds: 11
  • Compatible Chain: Linkglide, HG 11-Speed
  • Chain Line (mm): 43.5
  • P.C.D. Left/Right (mm): 110
  • P.C.D. (mm): 110
  • Spider/Gear Arms: 4
  • Chainring Combination: 46-36T, 50-34T, 52-36T
  • Q-Factor (mm): 150
  • Crank Arm Length (mm): 165, 170, 172.5, 175
  • Optional Chain Guard|Without Chain/Bash Guard: Yes
  • 2-Piece Crankset: Yes
  • Compatible Bottom Bracket Type|Outboard: Yes
  • Recommended Bottom Bracket|Threaded (normal): BB-RS501
  • Recommended Bottom Bracket|Press-Fit: BB-RS500-PB
  • Threaded Bottom Bracket Shell Width (mm): 68, 70
  • Crank Fixing Screw Included: Yes
  • Average Weight: 908 g (50-34T)
