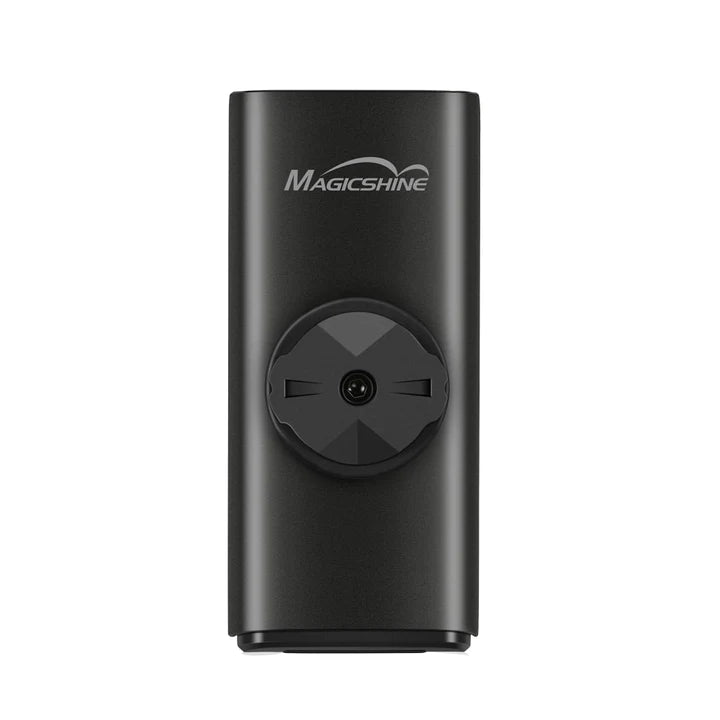

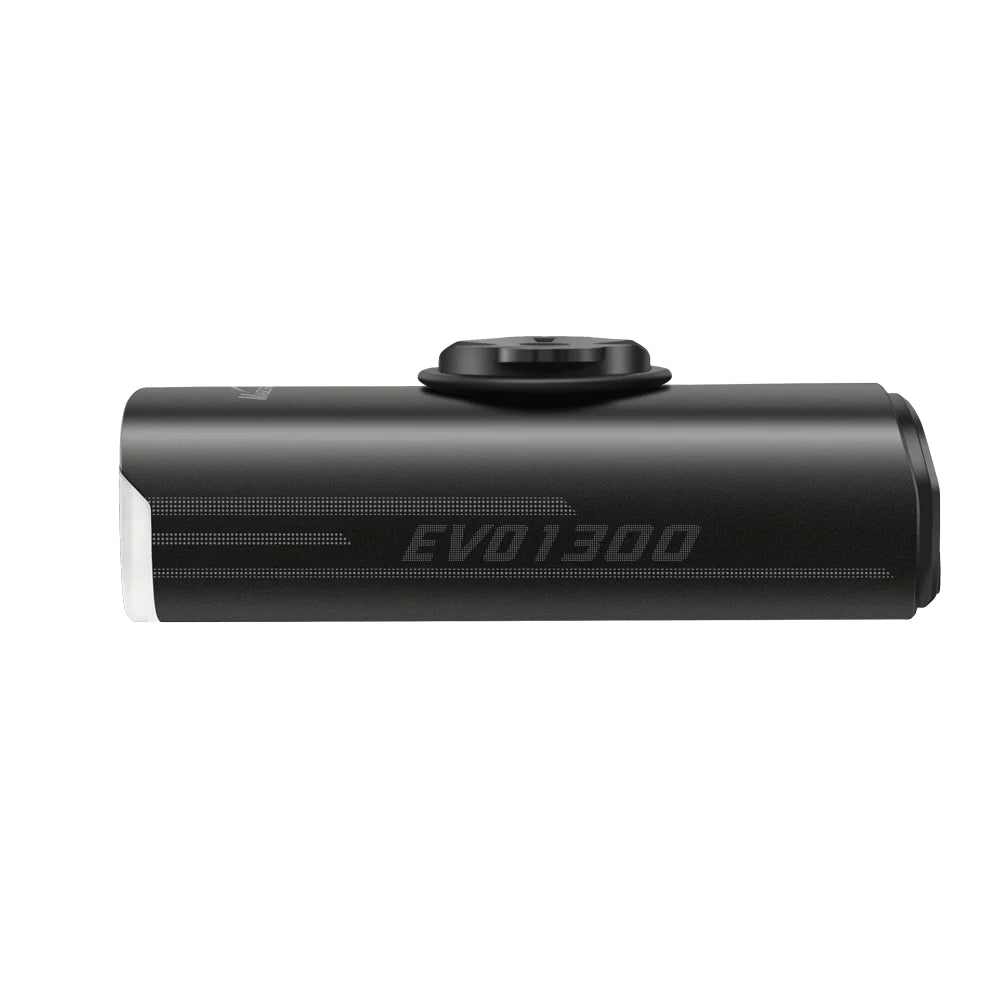

Magicshine EVO 1300 Underneath Mounted Head Light

Introducing the Magicshine EVO 1300 Underneath Mounted Headlight

Powerful Illumination: With a 1300-lumen output and 150m beam distance, the EVO 1300 ensures safe navigation on busy streets, country paths, and challenging terrain.

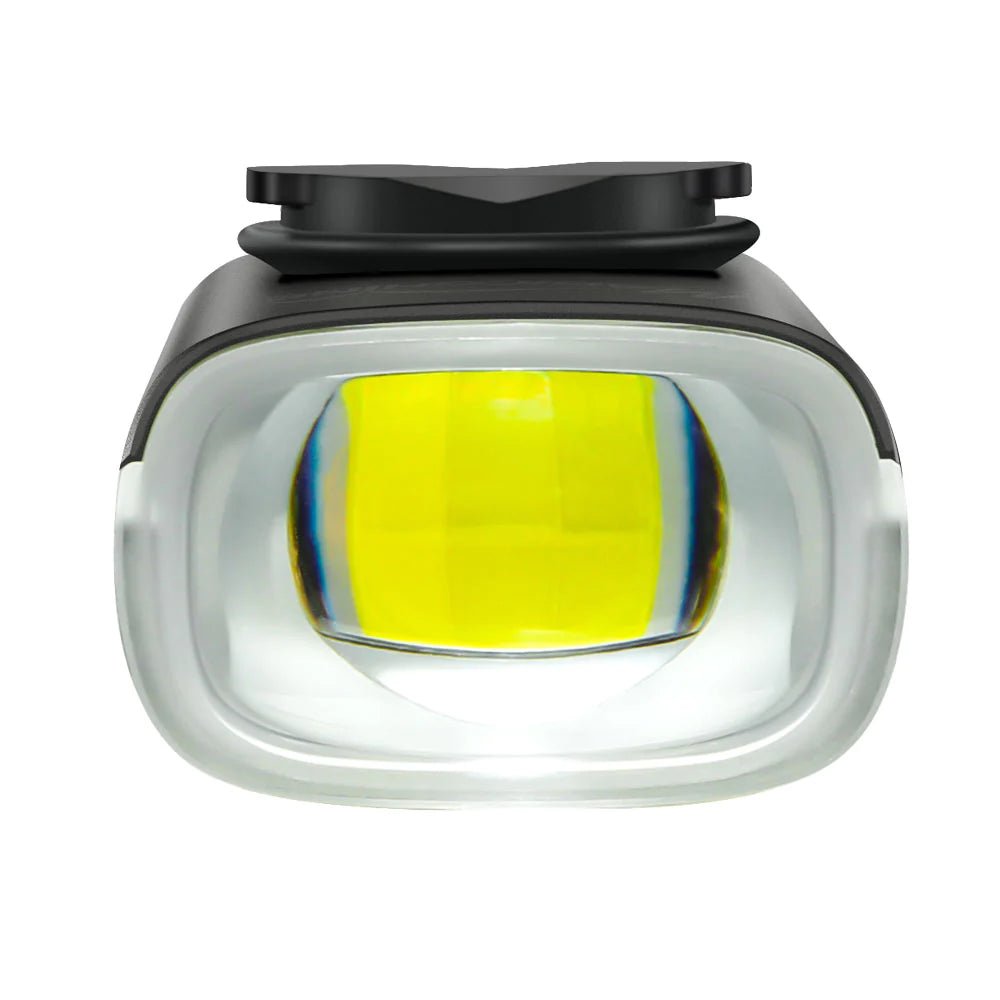

Unique Optical Lens System: The specially designed lens casts a low beam with a clear cut-off line, keeping the beam towards the road and out of the eyes of other road users, enhancing safety for all participants.

Versatile Lighting Options: Switch between low beam and high beam with the touch of a button, providing extra illumination for faster riding or off-road trails.

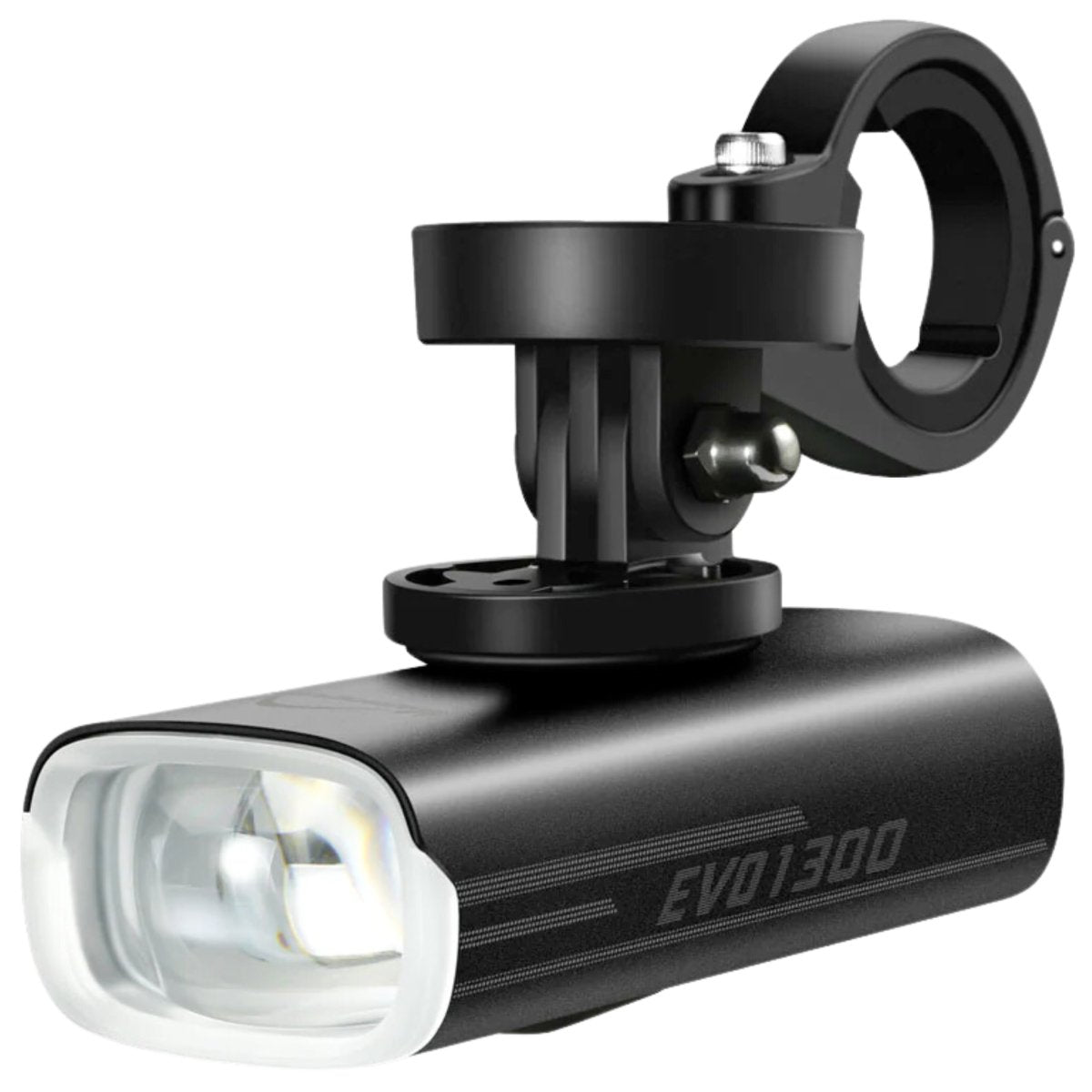

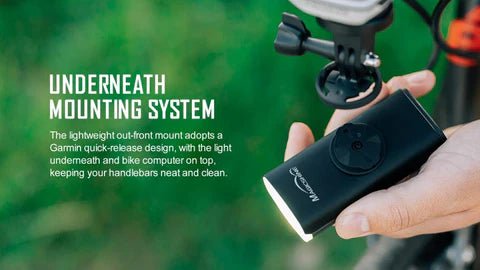

Innovative Mounting System: The EVO 1300 features an innovative mounting system that conserves handlebar space by positioning the light beneath, allowing the bike computer to sit on top. The lightweight out-front mount with a Garmin quick-release design ensures easy and swift installation and removal, taking only a few seconds.

Upgrade your cycling experience with the Magicshine EVO 1300 Underneath Mounted Headlight – where innovation meets performance for safer and more enjoyable rides.

Features

Features of Magicshine EVO 1300 Underneath Mounted Headlight

• High-power LED provides a maximum output of 1300 lumens.

• Unique combination of close-range low beam and far-reaching high beam.

• Cut-off low beam, glare-free for oncoming road users.

• Customize lighting settings for different cycling scenarios via Magicshine App.

• Lightweight out-front mount installs the light underneath most handlebars.

• Dual-button brightness control, jump to high beam with a single push.

• Powered by 2*18500 battery cells with a total capacity of 3200mAh.

• USB-C rechargeable.

• One-piece seamless aluminum housing for efficient heat dissipation and optimum performance.

• Memory function saves the last selected mode.

• Lock function to avoid mis-operation.

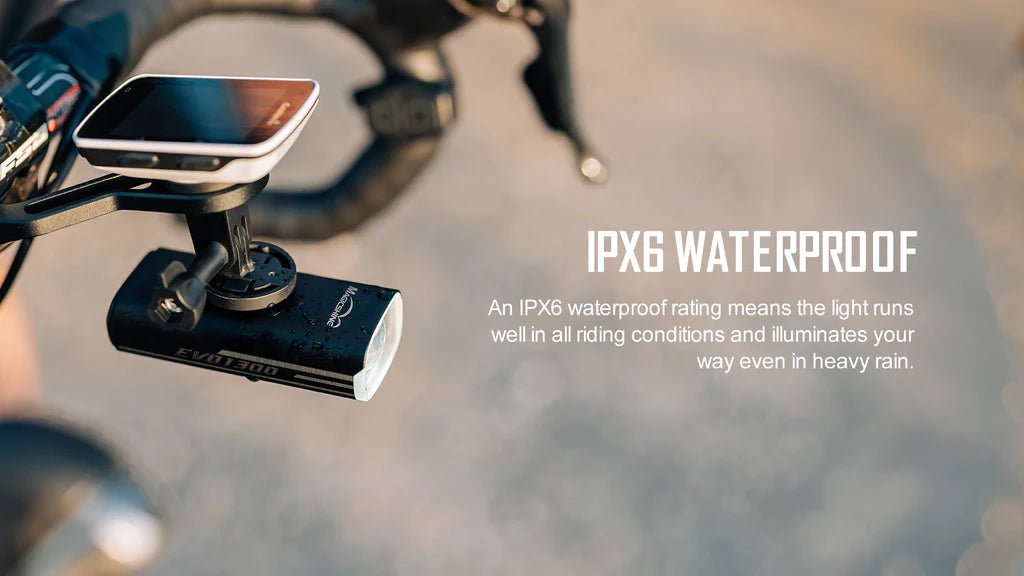

• IPX6 waterproof rating, heavy rain resistant.

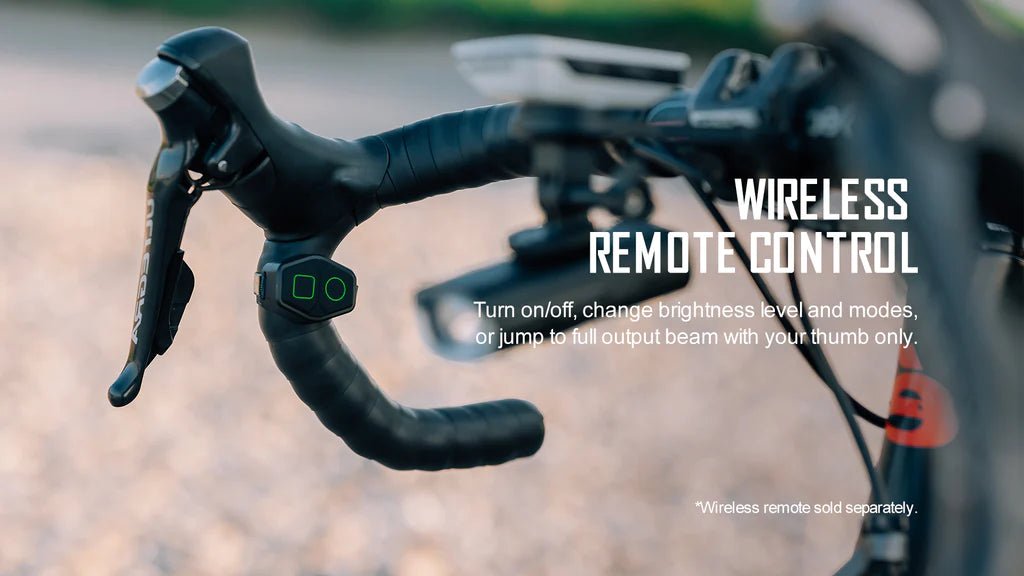

• Optional Wireless remote control allows for simple and secure operation.


Specifications

Specifications of Magicshine EVO 1300 Underneath Mounted Headlight

Instructions

Operating Instructions of Magicshine EVO 1300 Underneath Mounted Headlight

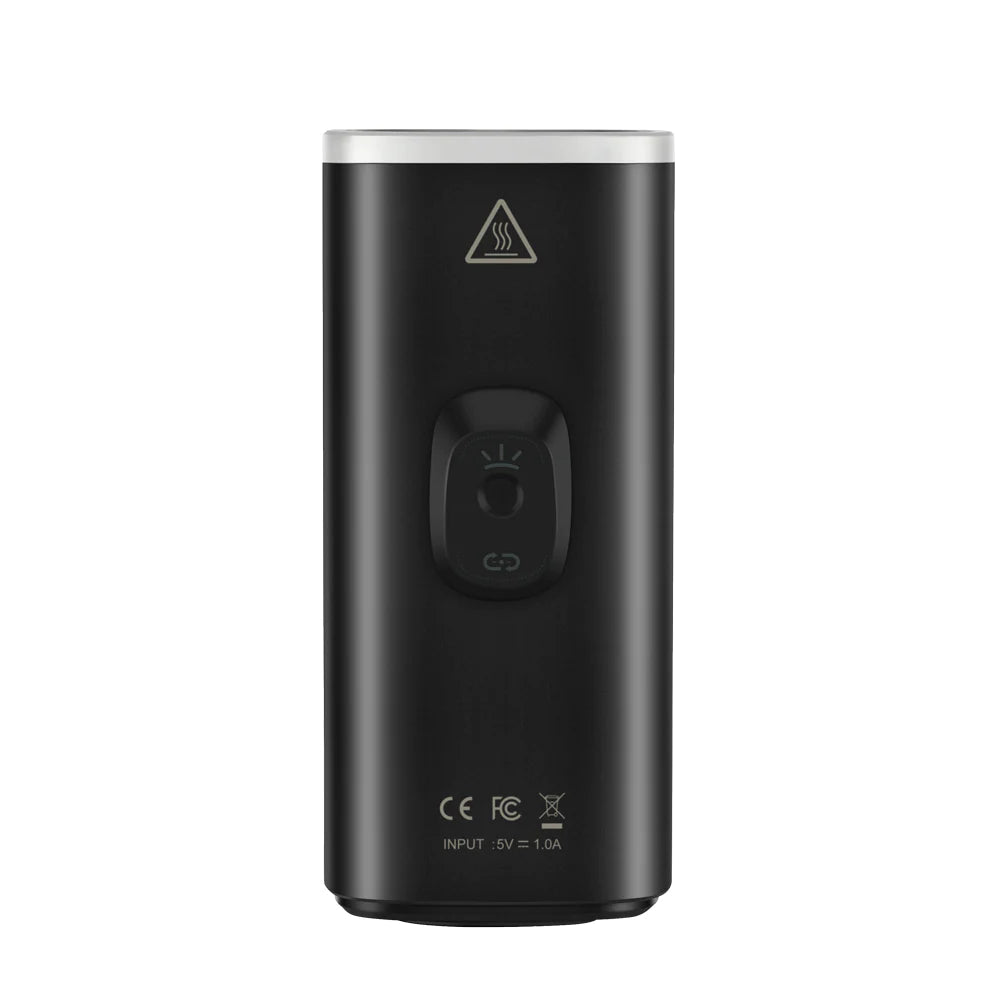

Switch: A switch on the light unit and a wireless remote control all modes and brightness.

On/Off: Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

Adjust Brightness: When the light is on, click the button to change brightness level. The output brightness of the low beam will cycle through Low→Medium→High→Low...

When in a high beam, click the button to change the brightness level in a customized setting.

There is only one brightness level of the high beam by default, and this function is only available when you have customized multiple brightness levels of the high beam via Magicshine App.

Mode Selection: When the light is on, double click the button to change between low beam and high beam.

There is only one brightness level of the high beam by default, and this function is only available when you have customized multiple brightness levels of the high beam via Magicshine App.

Full Output Mode: When the light is on, click the button to change to the full output mode of the high beam (1300LM).

Lock/Unlock: When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.

Battery Indicator - When the light is off, click the power button to display the remaining battery level for 3 seconds.

Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

In The Box

Contents of Magicshine EVO 1300 Underneath Mounted Headlight

• EVO 1300 *1

• Handlebar Out-Front Mount Kit *1
• MJ-6508 Remote Control (incl. Strap) *1
• Wahoo Mount *1

• Screw *2

• 2mm Hex Key *1

• 3mm Hex Key *1

• USB-C Charging Cable *1

• User Manual *1
