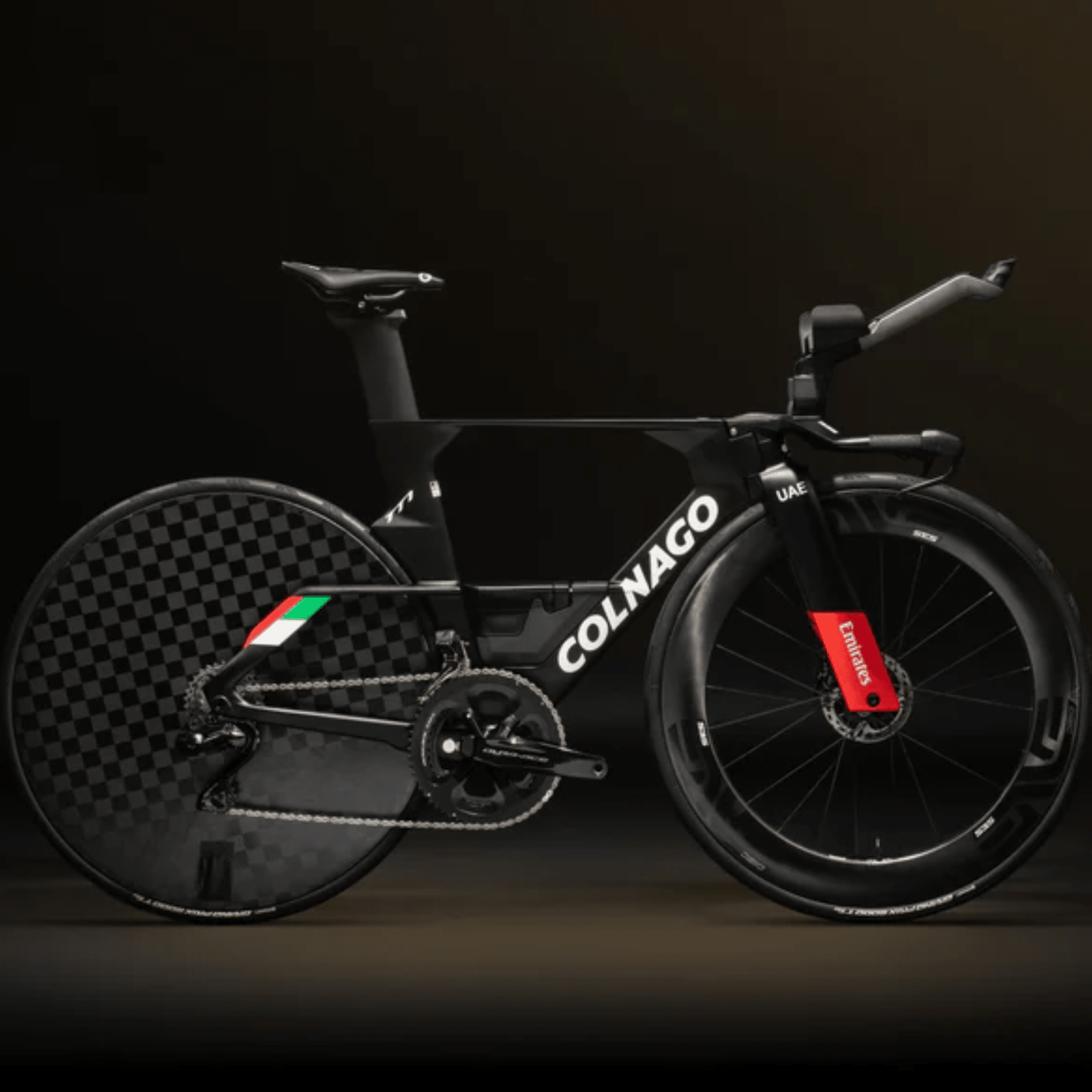

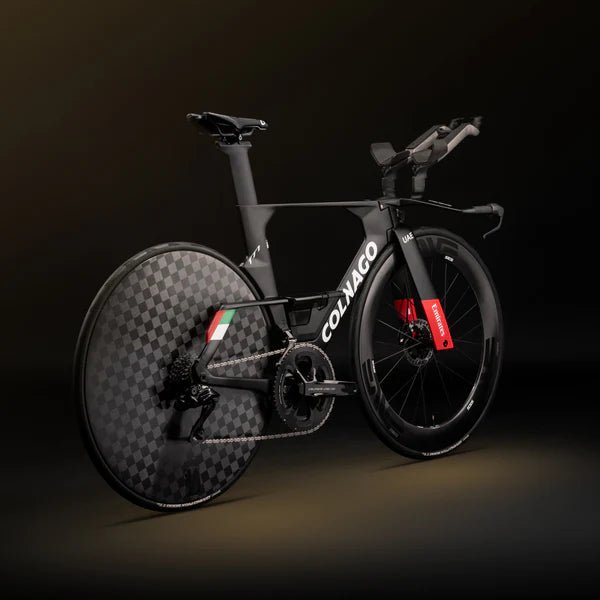

Colnago Time Trial TT1 Frameset

Built to Chase Every Second

Disc Brake TT Platform
Aero-Driven Frame Design
Sharper High-Speed Control

₹724,990

Color: SDM3

Colnago Time Trial TT1 Frameset | The Bike Affair

S M L

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

Delivery estimate

Recommended rider height for the Colnago Time Trial TT1.

	S	S/M	M	M/L	L
Height (In cms.)	155-167	170	172-174	176-178	180-196

Source: Colnago size guide (colnago.com/en/size-guide). Colnago publishes these as individual height steps; contiguous steps have been grouped into ranges here.

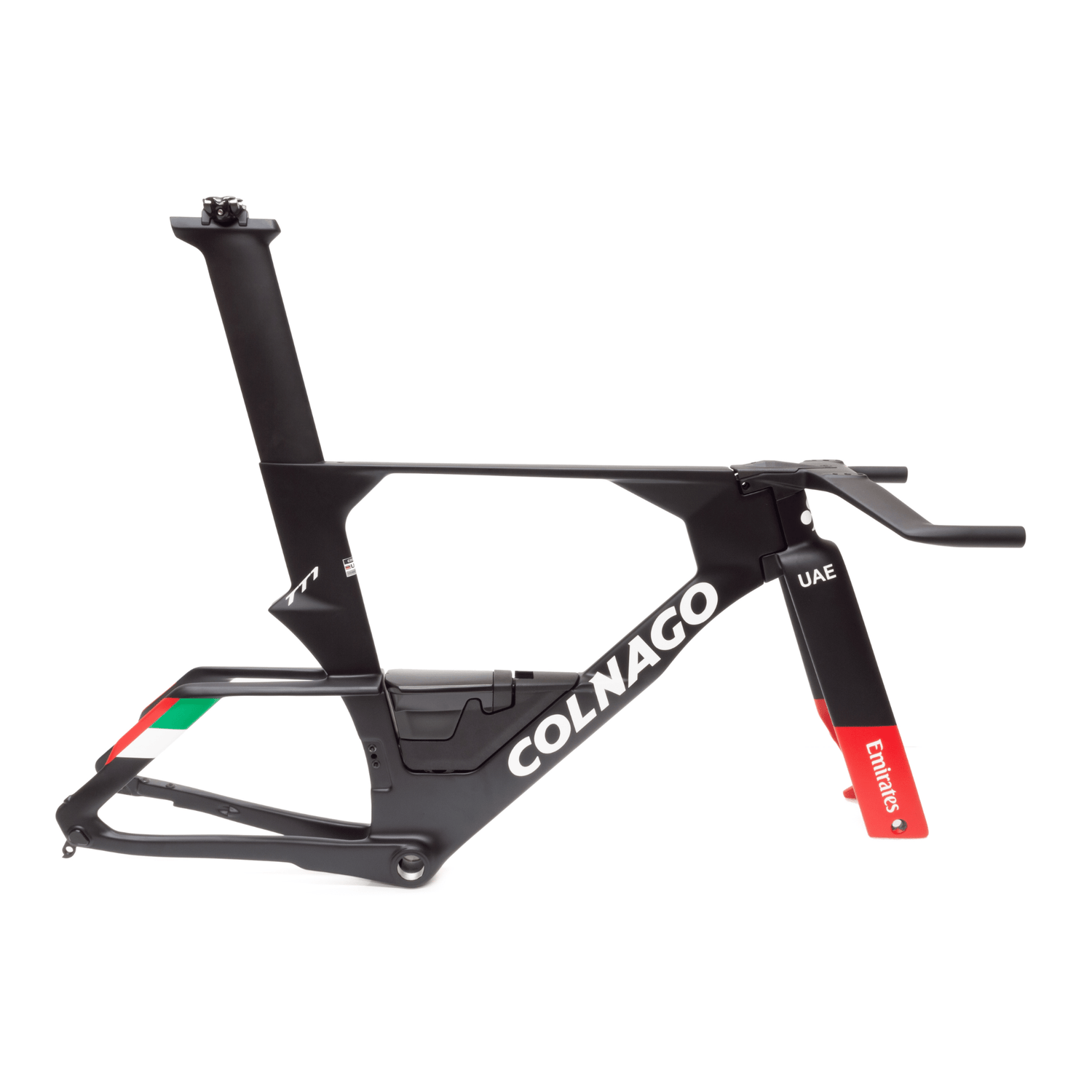

The Colnago Time Trial TT1 Frameset is built for riders who demand maximum speed against the clock. As the first Colnago time trial bike with a disc brake system, it brings together advanced aerodynamic shaping with stronger braking control and a cleaner, more integrated overall design.

Disc Brake Advantage: The move to disc brakes allows better integration of the hydraulic lines within the frame, helping create a more refined and efficient profile. It also improves braking performance and adds confidence in high-speed conditions, while through axles contribute to greater overall rigidity across the bike.

Developed for Faster Efficiency: Built around the latest UCI guidelines, the TT1 uses a more aggressive tube and fork geometry to improve aerodynamic performance. The fork and frame feature a more vertically rigid blade-like shape, designed to reduce drag and support efficient power delivery during high-speed efforts.

Race-Proven Performance: Despite the addition of disc brakes and improved integration, the weight increase compared to the previous Colnago TT model remains minimal. The result is a frameset that offers better safety, sharper braking and elite-level speed for time trials as well as triathlon race stages.

For riders chasing every second in a time trial or triathlon, the Colnago TT1 Frameset delivers aerodynamic precision, modern braking confidence and true race-ready performance.

Product details

Specifications

Model	TT1
Frame Material	Monocoque Carbon
Fork Material, Section Notes	Carbon Bayonet Fork For Disc Brakes, Integrated Cables
Headset	Bearings 19x30x6,5; 36x45° - Included
Seatpost	Colnago Aero Carbon Seat Post Assembly, Adjustable Offset
Seatpost Clamp	Colnago TT1 Custom Wedge + M8x16 Headless Screw

Through Axle	Diameter: 12 mm, Length 100 mm (Front) - 142 mm (Rear)

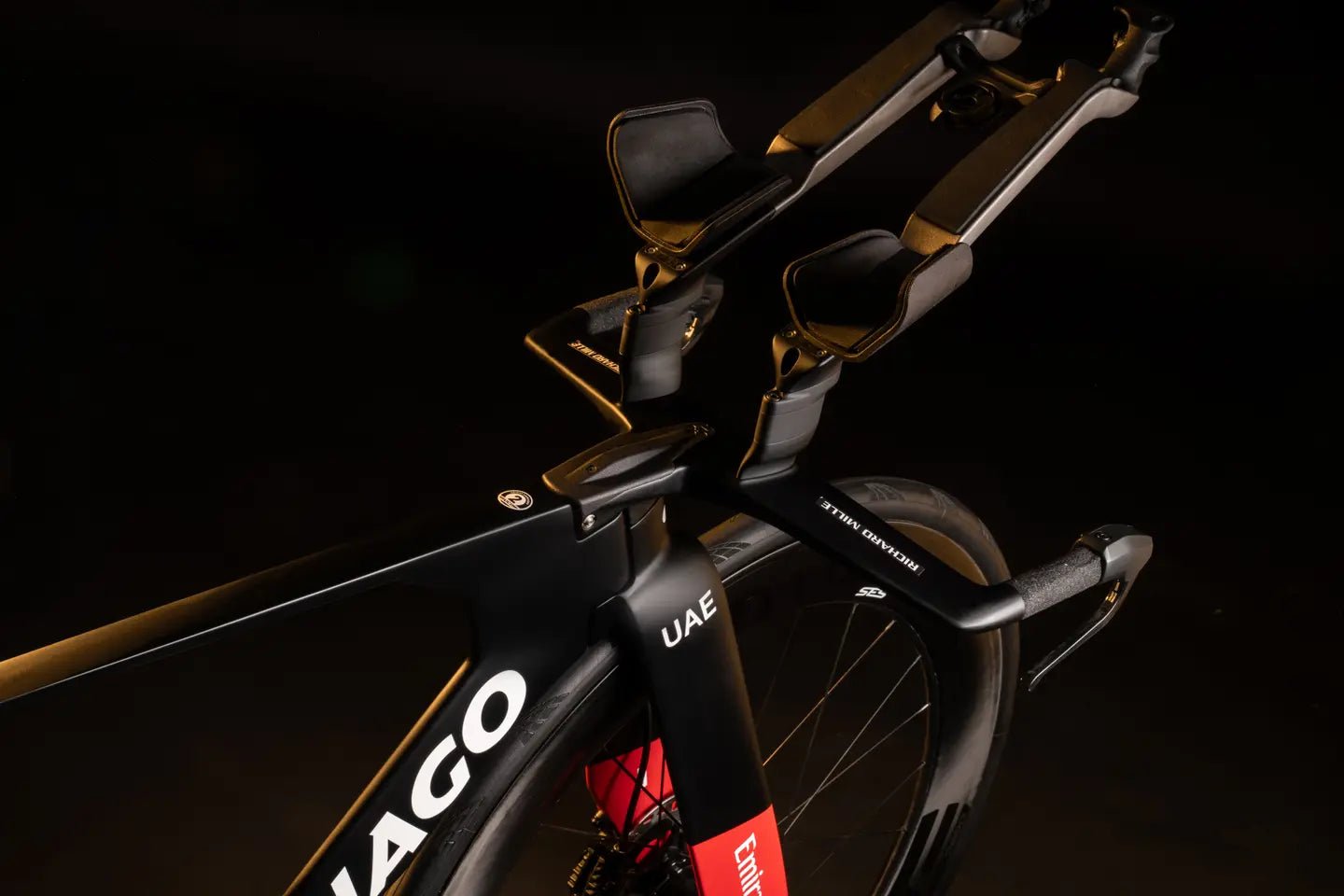

Handlebar	Colnago TT1 Handlebars + Stem Cover Included, Aerobars Not Included
Bottle Cage	Integrated Water Bottle Holder - Included
Aerodynamic Water Bottle For TT1 - Included
Color	SDM3
Size	S, M, L

Features

Disc Brake TT Platform: Colnago’s first disc brake time trial frameset blends stronger braking control with a cleaner integrated race design.

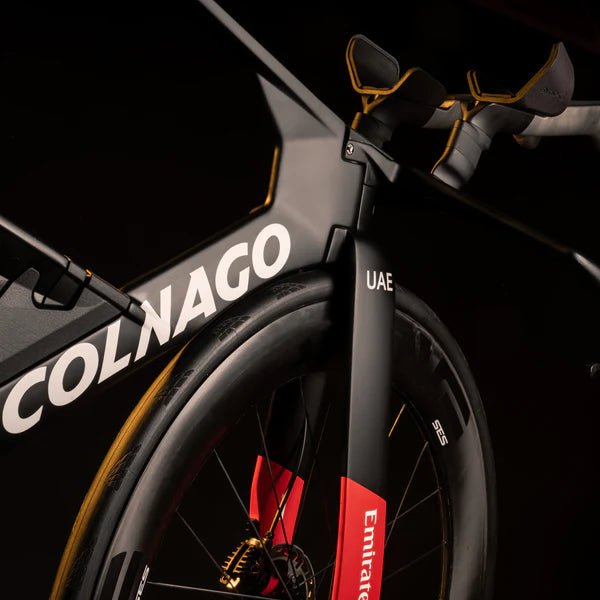

Aero-Driven Frame Design: Built around modern UCI guidelines with aggressive tube and fork shaping for lower drag at high speeds.
Sharper High-Speed Control: Disc brakes and through axles improve braking confidence and add greater rigidity during hard race efforts.
Efficient Blade-Like Structure: The frame and fork use a more vertically rigid profile to support cleaner airflow and direct power delivery.

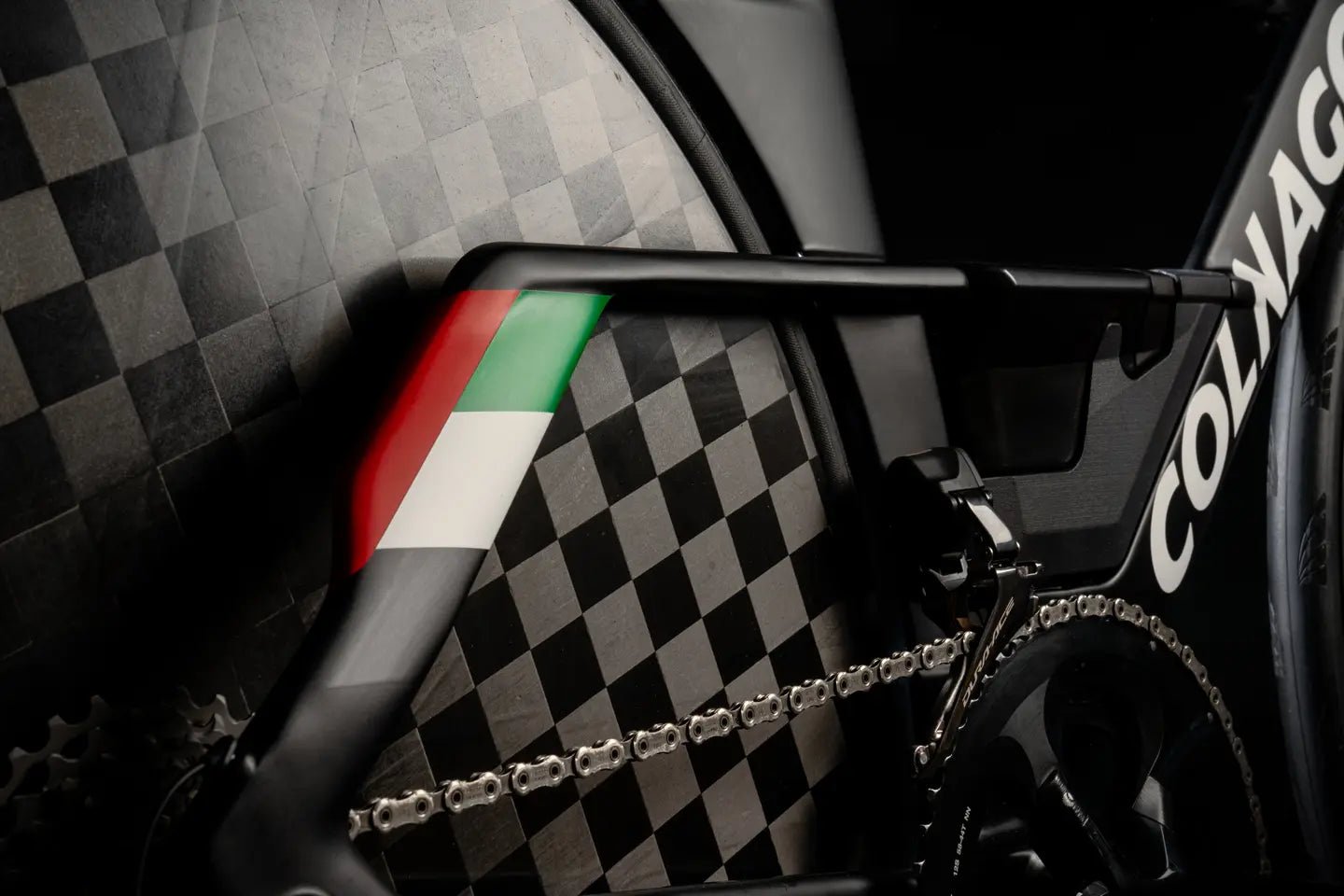

Lowered Aero Chainstays: More aggressive, horizontal chainstays improve comfort and aerodynamics without compromising overall frame stiffness.

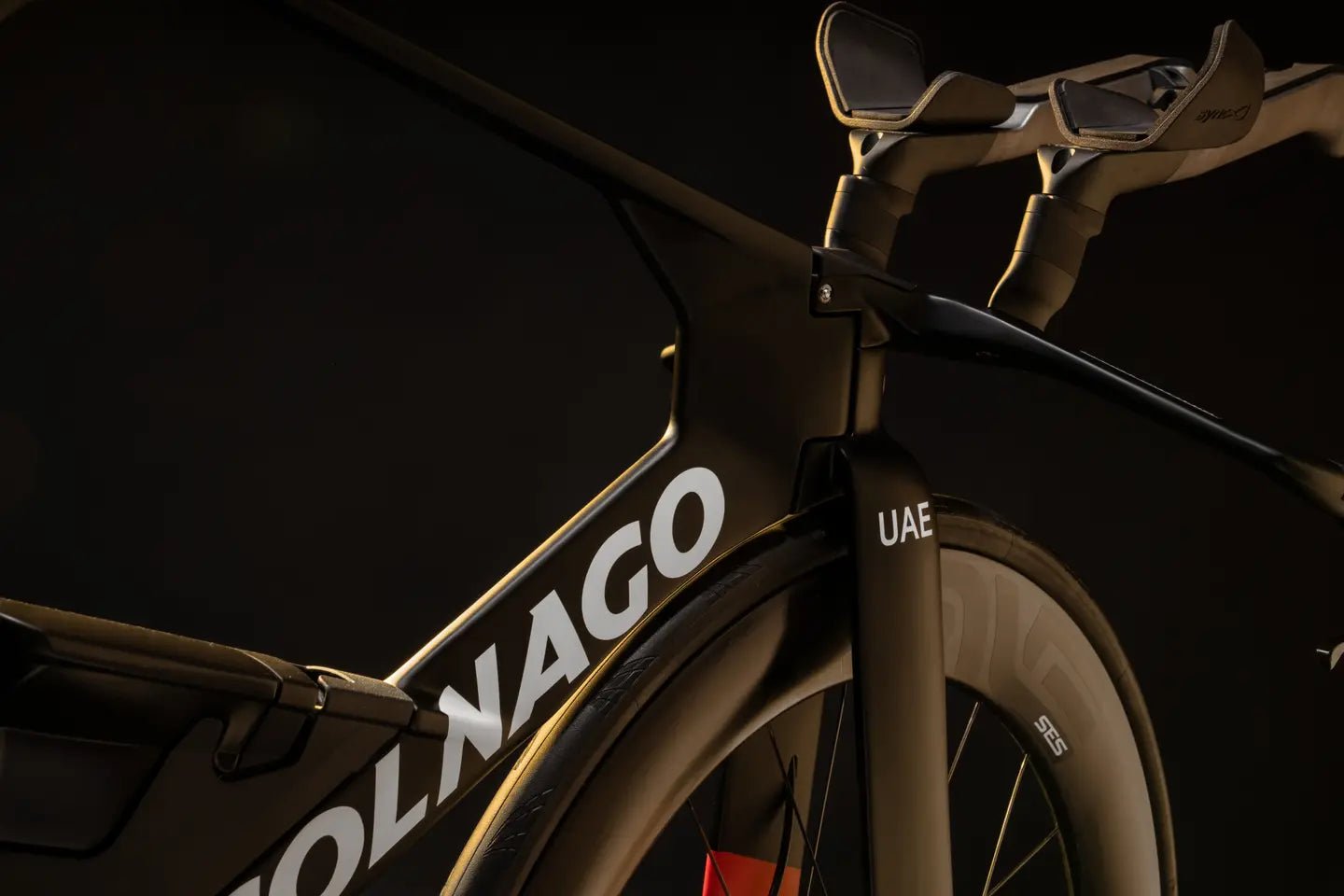

Reduced Front-End Drag: A slimmer front tube area lowers the drag coefficient for a faster and more efficient leading profile.

Technologies

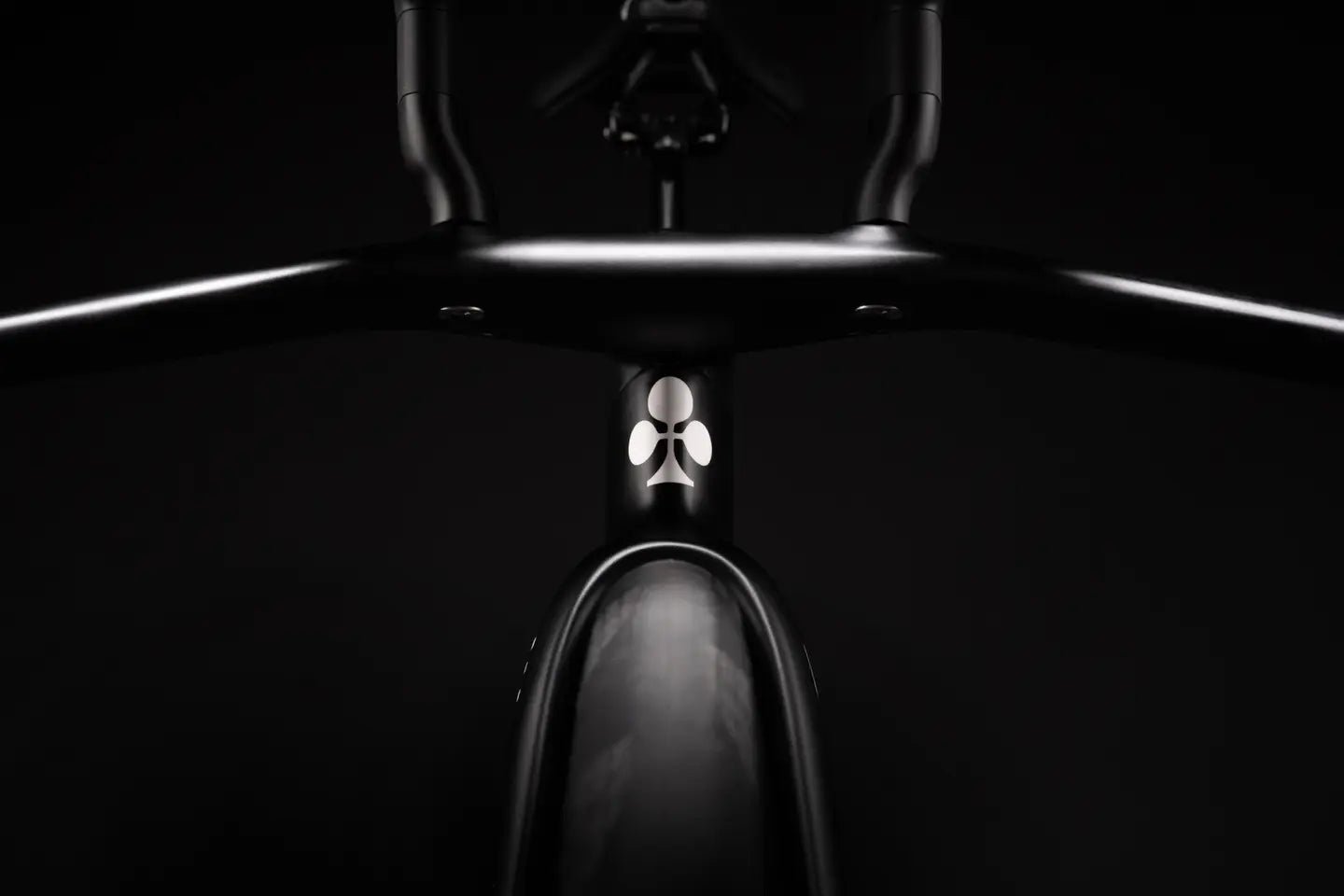

Colnago Base Bar: The Colnago-produced base bar offers a top-level balance of low weight and high rigidity for race-focused performance.
Integrated Bottle System: The 3D-printed cage and custom aerodynamic bottle are shaped to improve airflow and bottle access at speed.
