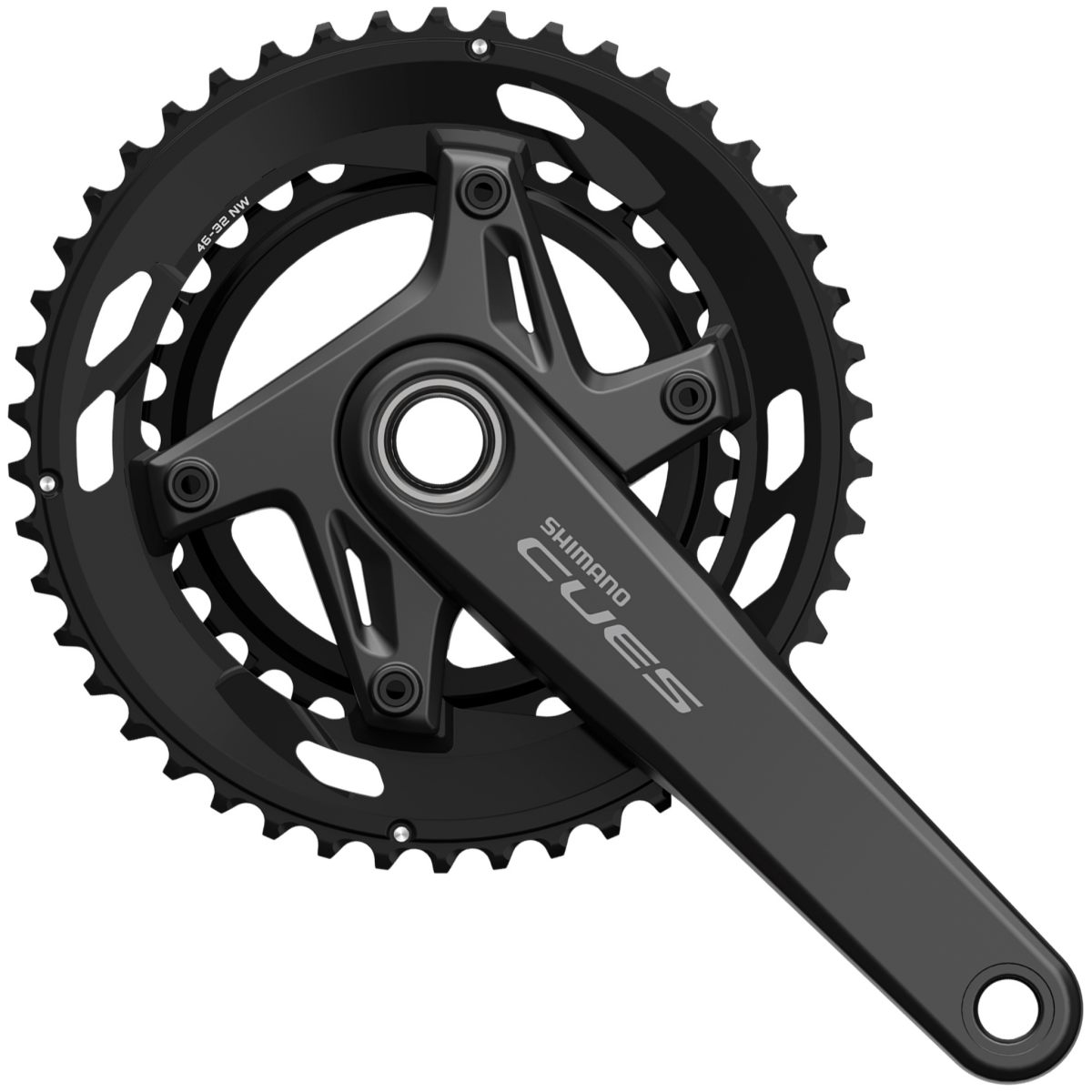

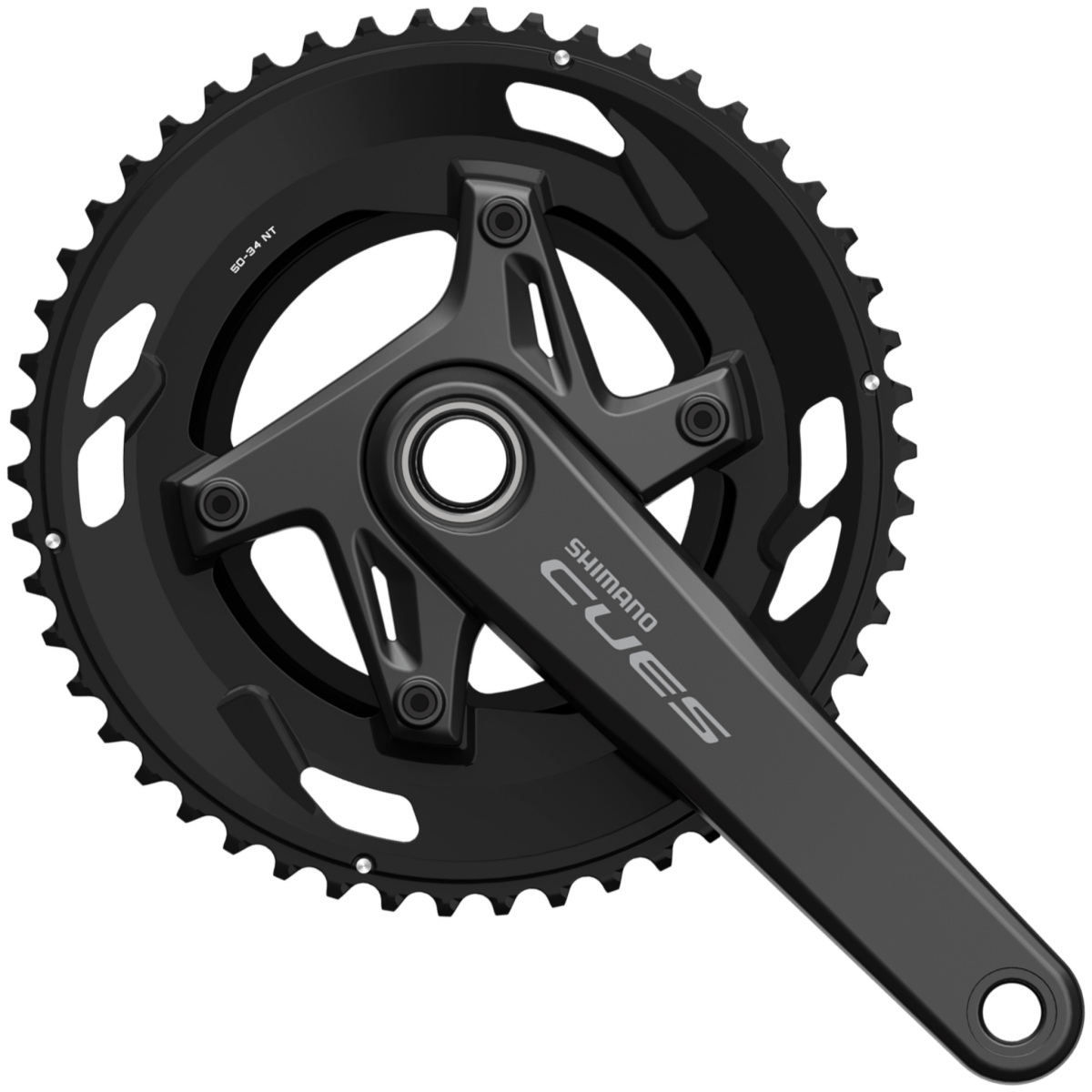

Shimano Cues 2-Piece FC-U6030-2 9/10-Speed Front Chainwheel

EFCU60302CX62
₹7,260
Length
Size

Versatile double crankset with wide gear options

Description

The Shimano Cues FC-U6030-2 is a front double crankset built for consistent performance across mixed terrain. Whether you’re cruising on tarmac or venturing into gravel paths, it offers smooth, dependable pedaling.

Optimized Gear Range for Versatility: Available in wide-range options of 50-34T or 46-32T, this crankset provides flexible gearing for climbs, descents and everything in between. It’s well-suited for both endurance road rides and adventurous gravel outings.

2-Piece Construction for Stiffness and Control: The two-piece design enhances structural rigidity, ensuring that more of your pedaling power is transferred efficiently to the drivetrain. It also helps in reducing overall weight for a lighter ride feel.

Smooth Shifting Across 9/10-Speed Systems: Designed for compatibility with 9 and 10-speed drivetrains, the FC-U6030-2 ensures crisp and consistent front shifting. It maintains chain stability while allowing quick transitions between chainrings.

Whether you're commuting, exploring, or training, this Shimano Cues 2-Piece FC-U6030-2 crankset is engineered for long-term use with minimal maintenance.

Features
  • Flexible Gear Range: Offers 50-34T and 46-32T combinations for efficient climbing, cruising, and descending on mixed terrain.
  • Efficient Power Transfer: 2-piece design improves stiffness and lowers weight, ensuring responsive pedaling across varied surfaces.
  • Reliable Shifting Performance: Designed for smooth, accurate front shifts across 9/10-speed drivetrains with stable chain transitions.
  • Durability for Daily Rides: Built to withstand long-term use with minimal maintenance—ideal for commuters, tourers and gravel riders.
  • Multiple Crank Length Options: Available in 165, 170, 172.5 and 175 mm lengths to suit a range of rider preferences and fit.

Technology

  • 2-Piece Crank Set: Integrates crank arm and bottom bracket for lightweight rigidity and precise power delivery. Its wider bearing position boosts stability and reduces maintenance.

Specifications
  • Model No: FC-U6030-2
  • Series: Cues
  • Rear Speeds: 10/9
  • Compatible Chain: LinkGlide, HG 11-Speed
  • Chain Line (mm): 47
  • O.L.D.|Thru (mm): 142
  • O.L.D.|QR/Nut (mm): 135
  • P.C.D. (mm): 110
  • Spider/Gear Arms: 4
  • Chainring Combination: 46-32T, 50-34T
  • Q-Factor (mm): 152
  • Crank Arm Length (mm): 165, 170, 172.5, 175
  • Optional Chain Guard|Without Chain/Bash Guard: Yes
  • 2-Piece Crankset: Yes
  • Compatible Bottom Bracket Type|Outboard: Yes
  • Recommended Bottom Bracket|Threaded (Normal): BB-RS501
  • Recommended Bottom Bracket|Press-Fit: BB-RS500-PB
  • Threaded Bottom Bracket Shell Width (mm): 68, 70
