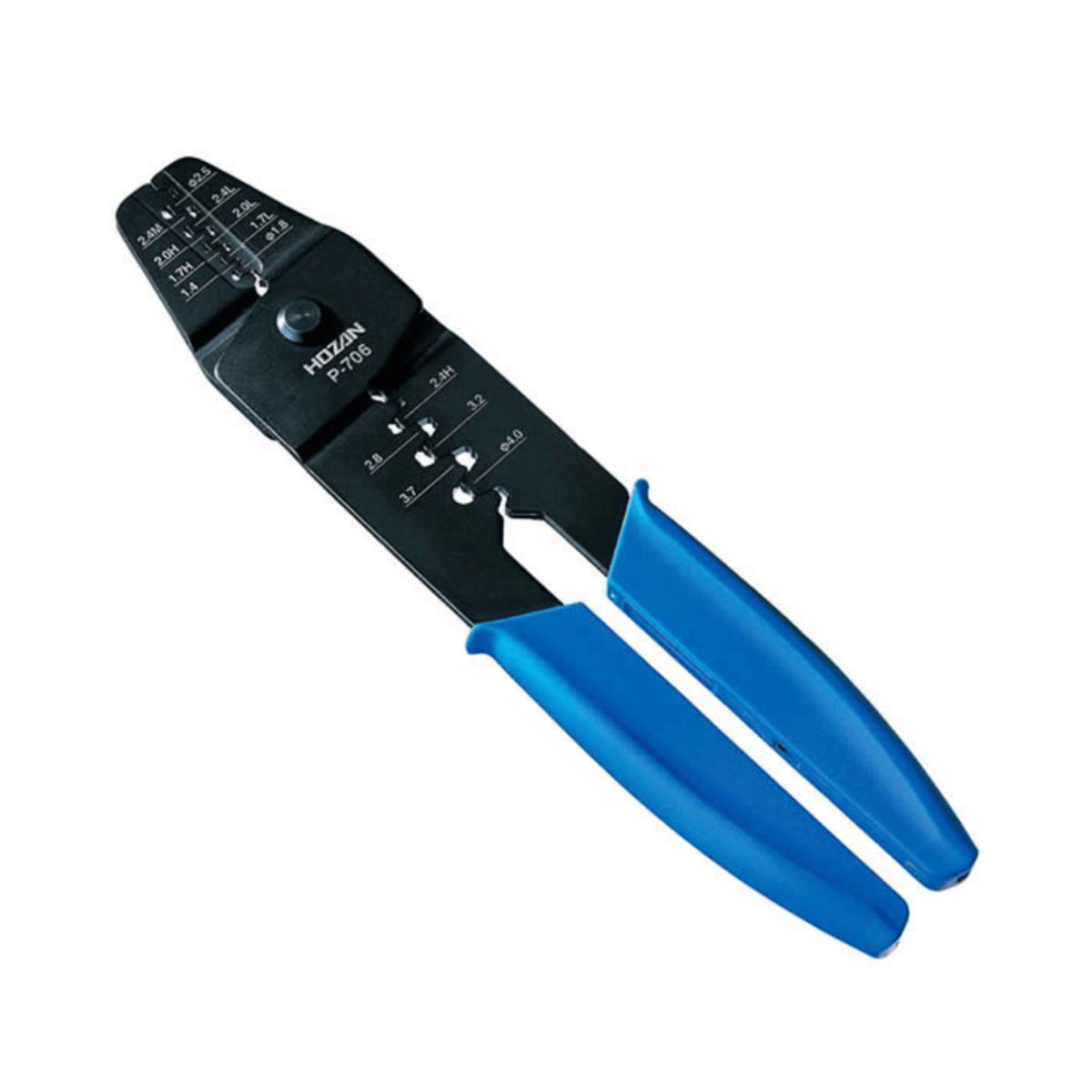

Hozan P-706 Crimping Tool

HZ-P-706
₹7,656

Estimated Shipping Widget will be displayed here!

Precision Crimping Tool for Open Barrel Terminals

Overview

The Hozan P-706 Crimping Tool is engineered for accurate and secure crimping of open barrel terminals and contact pins. Its precise die design ensures reliable connections, making it ideal for fine electrical and mechanical work.

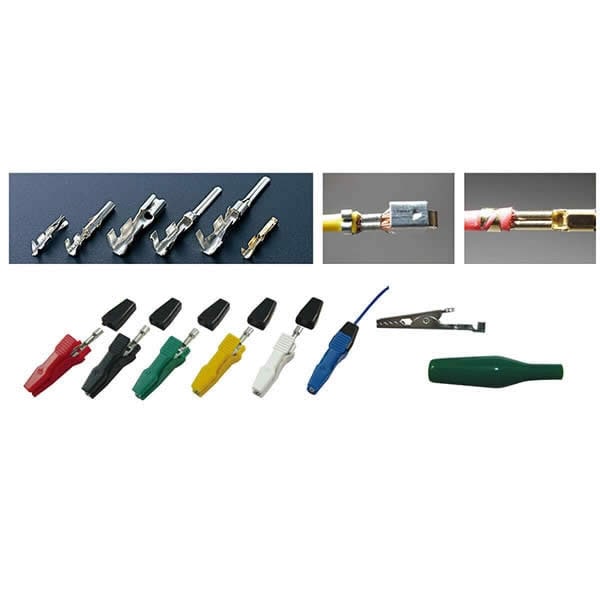

Designed for Small Contact Pins: Featuring a thin-step die area, the tool allows precise crimping of small contact pins commonly used in connectors and wiring systems. It ensures firm, uniform crimps for dependable conductivity.

Wide Wire Size Compatibility: Suitable for wire sizes ranging from AWG #28 to #14, the P-706 accommodates a variety of applications—from delicate electronics to standard wiring tasks.

Durable, Lightweight and Easy to Handle: Weighing just 200g, the crimping tool offers excellent balance and control. Its compact form makes it comfortable to use for extended periods without hand fatigue.

The handle cover is not insulated—do not use the tool in live electrical environments. For best results, always ensure power sources are disconnected before crimping.

Features
  • Accurate Crimping Performance: Designed for open barrel terminals and small contact pins, ensuring consistent, high-quality crimps with precise die alignment.

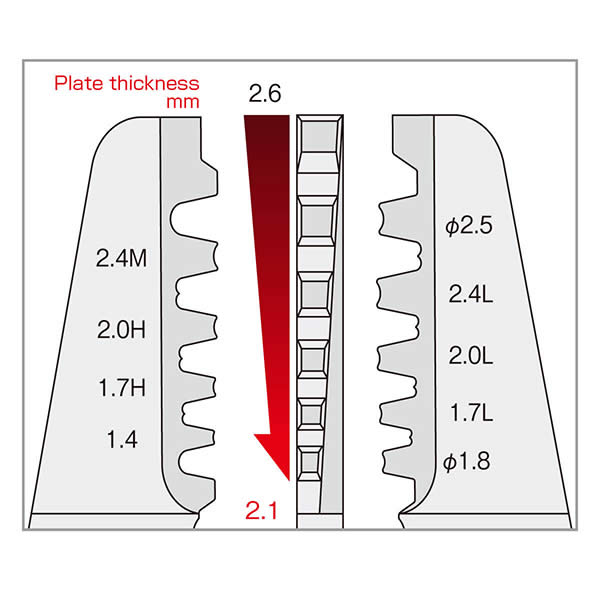

  • Thin-Step Die Design: Features a stepped die structure ideal for small terminal sizes used in precision electrical connectors.
  • Wide Wire Range Compatibility: Supports AWG #28 to #14 (0.08–2.0mm²), making it suitable for a variety of delicate and standard wiring tasks.
  • Compact and Lightweight Build: Weighing only 200g, the tool offers comfortable handling and steady control for long-term use.
  • Durable Construction: Built for professional reliability and longevity, perfect for fine electrical or mechanical applications.

Specifications
  • Product Number: HZ-P-706
  • Wire Sizes: AWG #28–#14 (0.08–2.0mm²)
  • Weight: 200 g
  • Country of Origin: Japan

For Conductor:
Nominal Sizes: Die Width |Crimp Height | Compatible Wire Sizes (Reference) | Insulation OD (Reference) mm φ

  • Size 1.4: Die Width 1.4 mm | Crimp Height 0.7 mm | AWG 28–24 | 0.08–0.2 mm² | Insulation Ø 0.7–1.2 mm
  • Size 1.7L: Die Width 1.7 mm | Crimp Height 0.7 mm | AWG 28–22 | 0.08–0.3 mm² | Insulation Ø 0.9–1.5 mm
  • Size 1.7H: Die Width 1.7 mm | Crimp Height 1.1 mm | AWG 24–18 | 0.2–0.8 mm² | Insulation Ø 0.9–1.5 mm
  • Size 2.0L: Die Width 2.0 mm | Crimp Height 0.9 mm | AWG 28–18 | 0.08–0.8 mm² | Insulation Ø 1.1–1.8 mm
  • Size 2.0H: Die Width 2.0 mm | Crimp Height 1.3 mm | AWG 24–18 | 0.2–0.8 mm² |Insulation Ø 1.1–1.8 mm
  • Size 2.4L: Die Width 2.4 mm | Crimp Height 1.2 mm | AWG 20–16 | 0.5–1.25 mm² | Insulation Ø 1.3–2.2 mm
  • Size 2.4M: Die Width 2.4 mm | Crimp Height 1.5 mm | AWG 16–14 | 1.25–2.0 mm² | Insulation Ø 1.3–2.2 mm

For Insulation:
Nominal Sizes: Die Width | Crimp Height | Insulation OD (Reference) mmφ

  • Size 2.4: 2.4 | 2.4 | 1.3 to 2.2
  • Size 2.8: 2.8 | 2.8 | 1.6 to 2.6
  • Size 3.2: 3.2 | 3.2 | 1.8 to 3.0
  • Size 3.7: 3.7 | 3.7 | 2.1 to 3.5

For Insulation (For Round Crimps):
Nominal Sizes: Die Width | Crimp Height | Insulation OD (Reference) mmφ

  • Size φ1.8: 1.8 | 1.4 | 1.2 to 1.8
  • Size φ2.5: 2.5 | 2.1 | 1.8 to 2.5
  • Size φ4.0: 4.0 | 3.5 | 2.3 to 3.8
