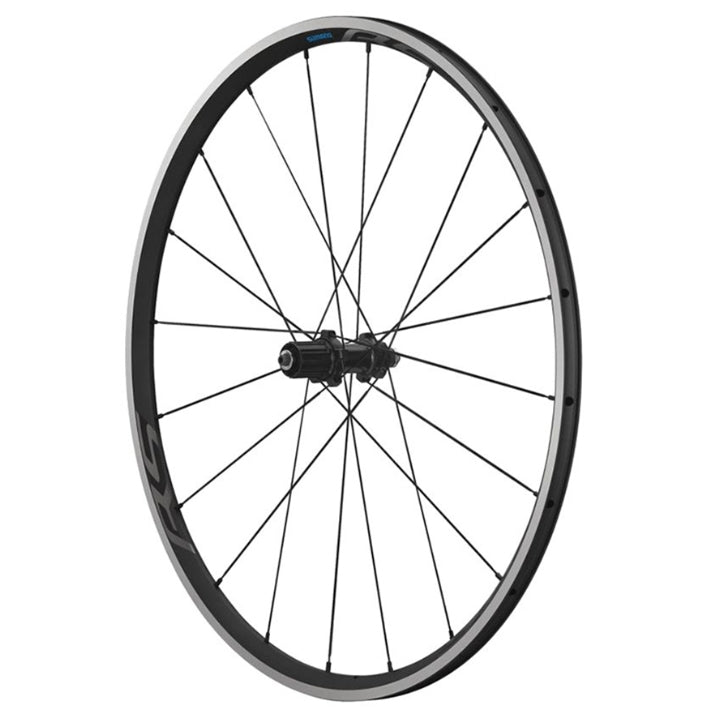

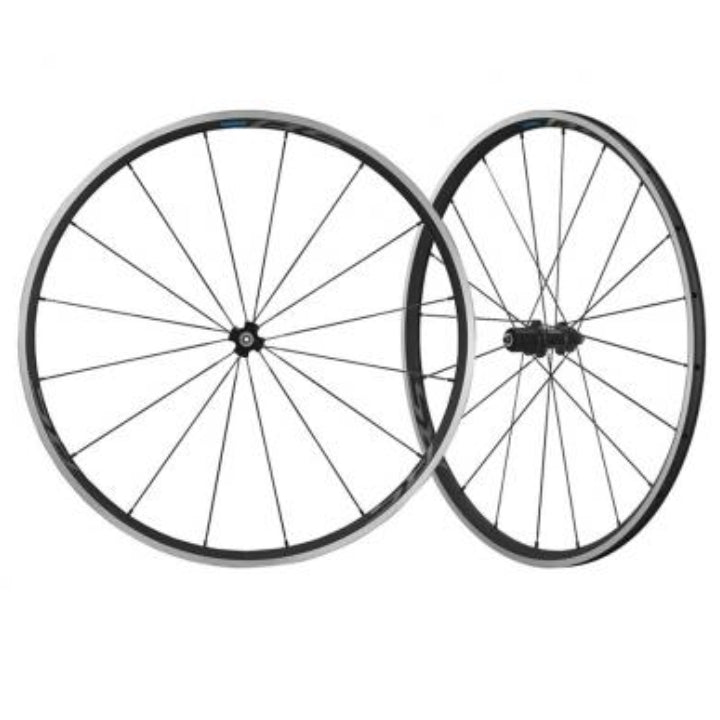

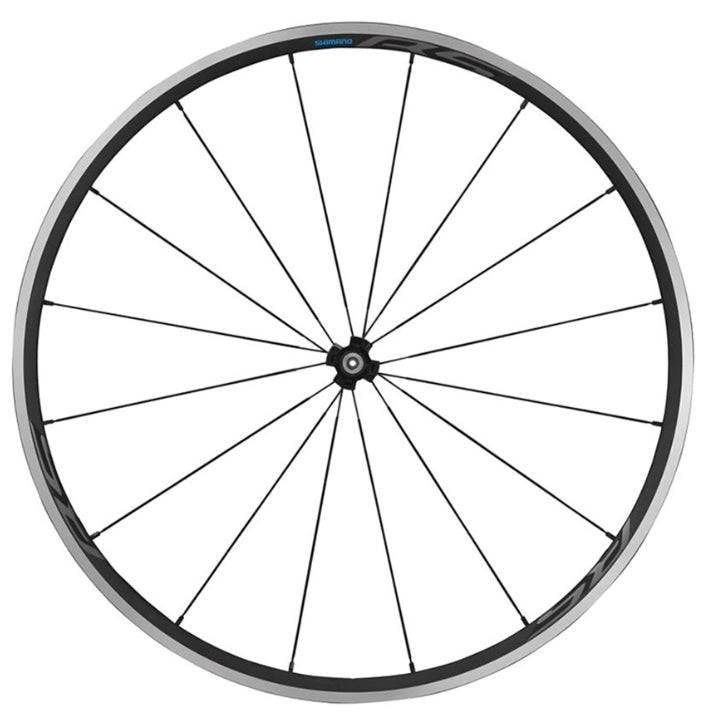

Shimano 105 WH-RS330-CL Rim Brake Wheelset
Shimano 105 WH-RS330-CL Rim Brake Wheelset is backordered and will ship as soon as it is back in stock.
Sign up to be the first to know when the product is back in stock
Introducing the Shimano 105 WH-RS330-CL Rim Brake Wheelset
Shimano 105 - Clincher - 30 mm Rim Depth - Rim Brake - Quick Release - Front & Rear Wheel
Trickle-Down Technology: Benefit from cutting-edge technology trickled down from Shimano's renowned Dura-Ace and Ultegra series, ensuring top-tier performance without the premium price tag.
Lightweight Construction: The lightweight 30mm RS330 rims are meticulously crafted with a focus on aerodynamics, providing you with enhanced speed and efficiency on every ride.
Aerodynamic Design: Shimano's WH-RS300-CL clincher wheels feature a streamlined design with fewer spokes (16 in front and 20 in the rear), maximizing aerodynamic efficiency and reducing drag for unparalleled speed.
Straightpull Construction: Engineered with Straightpull construction at the 105 R7000 level, this wheelset boasts higher torsional rigidity, resulting in quick and responsive acceleration that keeps you ahead of the pack.
Optimized Rim Width: The wider 17C rims are optimized for wider tires, offering superior comfort and reliability while ensuring a balanced and affordable ride that's suitable for various road conditions.
Elevate your cycling performance with the Shimano 105 WH-RS330-CL Rim Brake Wheelset, where quality, performance, and affordability intersect to deliver an unparalleled riding experience.
Features
Features of Shimano 105 WH-RS330-CL Rim Brake Wheelset
- Optimal balance between rigidity, durability and lightweight
- Shimano manufactured 30 mm profile rims and spokes
- Material: Rims, Hubs, Nipples: Aluminium. Hub Axle, Freehub Body: Steel. Spokes: Stainless Steel
- OPTBAL Spoke System
Specifications
Specifications of Shimano 105 WH-RS330-CL Rim Brake Wheelset
| Model No | WH-RS330-CL-F | WH-RS330-CL-R |
| Model Name | WH-RS330-CL | WH-RS330-CL |
| Series | Shimano | Shimano 105 R7000 Series |
| Color | Black | Black |
| Average Weight | 875 | 1176 |
| Rear Speeds | - | 11/10* |
| Remarks | * The adapter is needed to use 10-speed cassette | |
| Specification | F | R |
| Color|1 Hub shell | Black | Black |
| Color|1 Quick Release | Black | Black |
| Front/Rear | Front | Rear |
| Brake Type | Rim Brake | Rim Brake |
| O.L.D. (mm) | 100 | 130 |
| Wheel Size | 622 x 15C (700C) | 622 x 15C (700C) |
| Tire|Type | Clincher | Clincher |
| Tire|Recommended Size | 23-622 - 32-622 | 23-622 - 32-622 |
| Rim|Height (mm) | 30 | 30 |
| Rim|Internal Width (mm) | 15 | 15 |
| Rim|External Width (mm) | 20.8 | 20.8 |
| Rim|Rim Joint | Sleeve | Sleeve |
| Rim|Offset Rim | - | Yes |
| Rim|Requires Rim Tape | Yes | Yes |
| Spokes|Number | 16 | 21 |
| Spokes|Straight Pull | Yes | Yes |
| Spokes|Bladed | Yes | Yes |
| Spokes|Butted | Yes | Yes |
| Spokes|Diameter (mm) | 2 | 2 |
| Axle Fixing Method | Quick Release | Quick Release |
| Quick Release Skewer Length (mm) | 133 | 163, 168 |
| Spline Type|HG Spline L (Road 12/11-Speed) | - | Yes |
| Engagement Type | - | Pawl Ratchet |
| OPTBAL (2:1) | - | Yes |
| Seal|Hub | Contact | Contact |
| Seal|Freehub Body | - | Contact |
| Internal Grease Sleeve | Yes | Yes |
| Compatible Spoke Protector | - | CP-W124 |
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW | CATEYE RR-550-WUW SW |
| Reflector|AS | CATEYE RR-550-WUA SW | CATEYE RR-550-WUA SW |
| Reflector|DIN | CATEYE RR-317-WUA SW | CATEYE RR-317-WUA SW |
Technology
Technology of Shimano 105 WH-RS330-CL Rim Brake Wheelset
Cup & Cone Bearing:
Shimano cup & cone bearings use angular contact to effectively displace lateral and vertical loads for smooth rotation and excellent durability. Plus, their design makes them easier to adjust and service.
OPTBAL:
The OPTBAL rear wheel spoke system features 21 spokes—14 on the drive side and 7 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.
