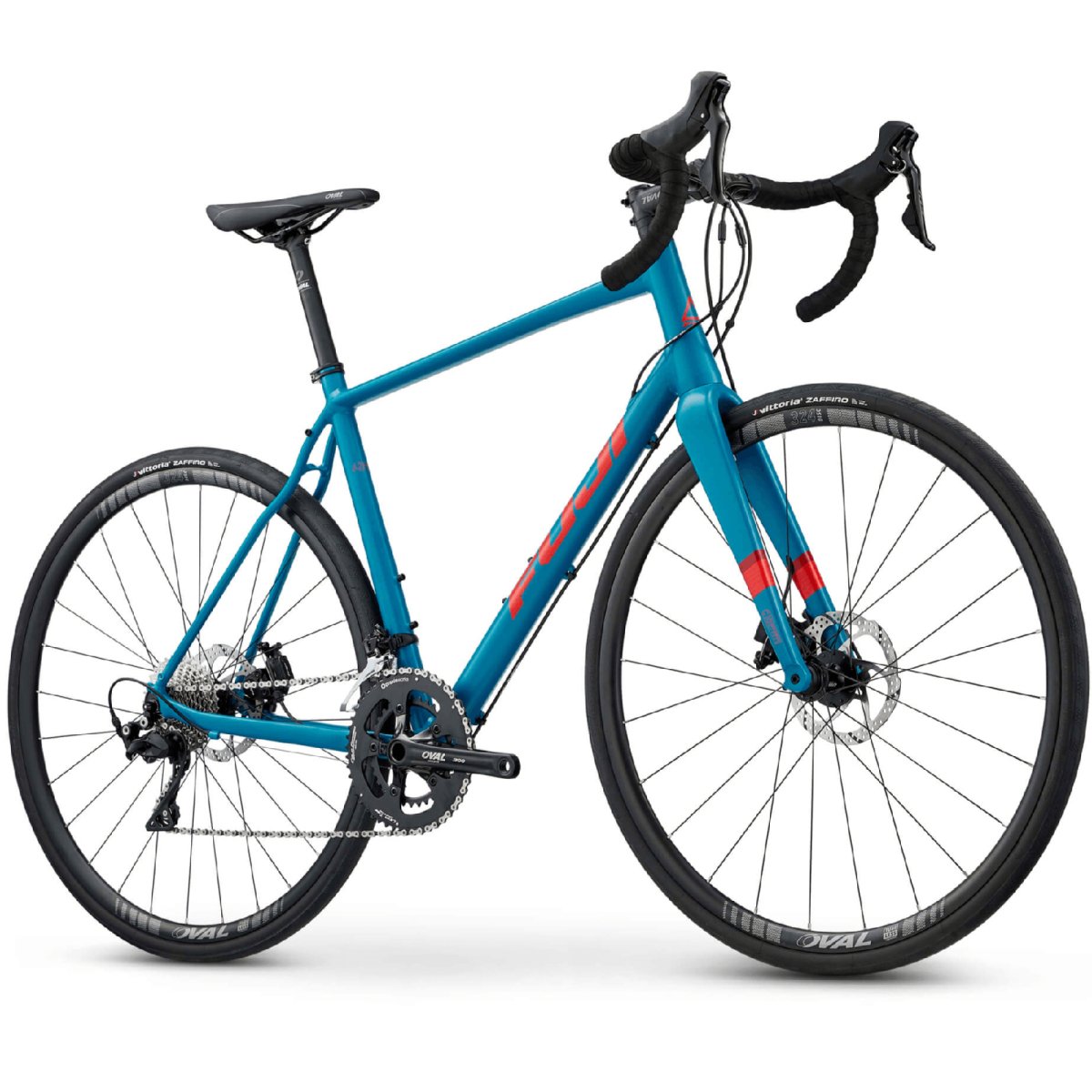

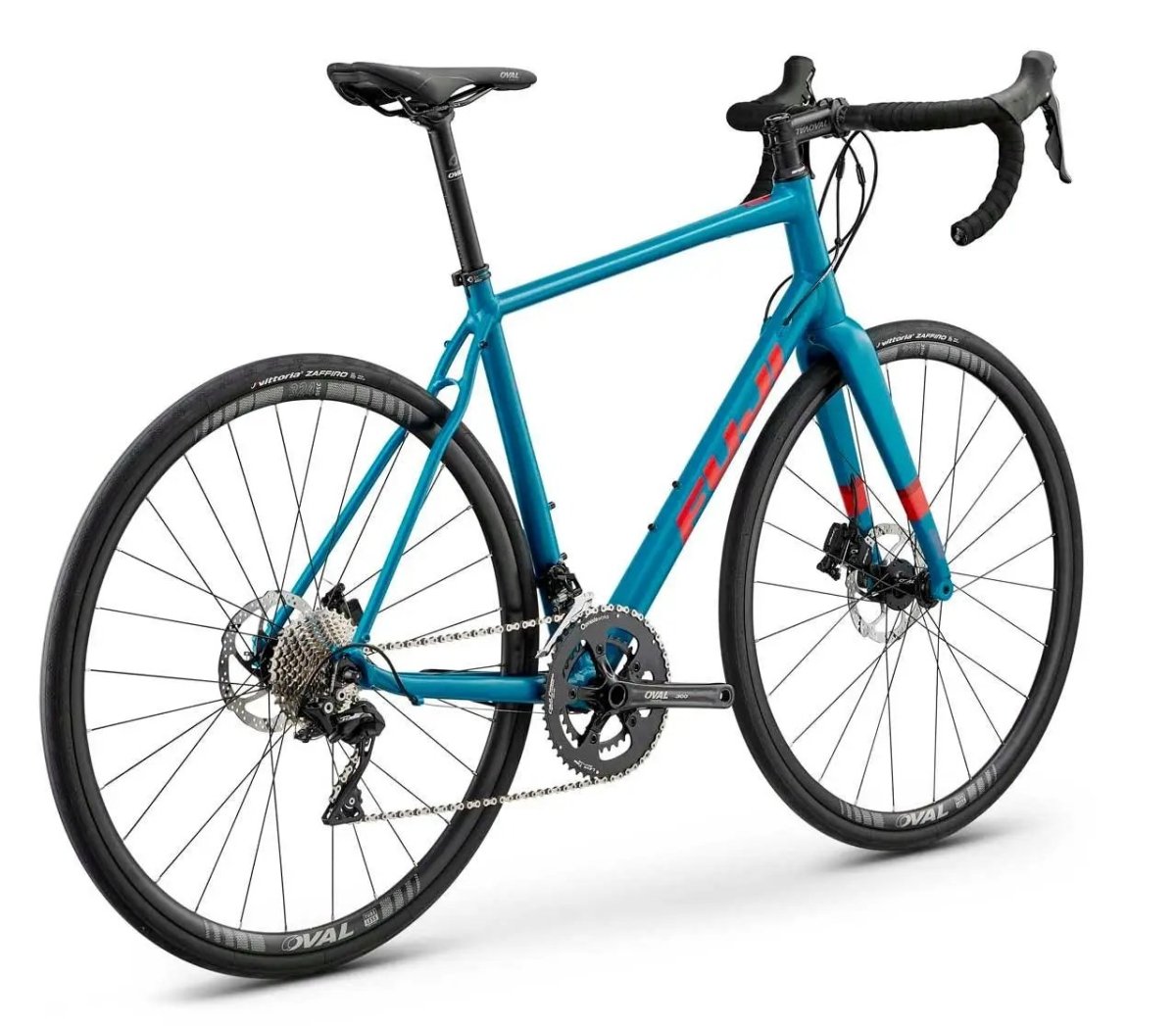

Fuji Sportif 1.1 Road Bicycle
Fuji Sportif 1.1 Road Bicycle
Get Out & Go: The Fuji Sportif 1.1 Road Bicycle is the perfect companion for riders seeking comfort, performance, and excellent value. With its well-equipped features and affordable price, this bike provides everything you need to hit the road and enjoy your ride. Drawing inspiration from our top-level Gran Fondo endurance bike, the Sportif incorporates a longer wheelbase and taller headtube to enhance rider comfort and reduce fatigue.
Endurance Geometry: Designed with endurance in mind, the Sportif features a taller headtube and longer chainstay, promoting an upright riding position that balances speed and stability. Enjoy a fast and spirited ride without sacrificing comfort.
Wave Seatstay: The wave seatstays of the Sportif disrupt and diffuse road vibrations, providing a smoother and more comfortable ride. Experience increased comfort and improved ride quality on any terrain.
Carbon Fork (on select models)*: Enhancing the premium frame design, the ultra high-modulous monocoque full carbon fork reduces weight and contributes to a smoother ride. *Available on select models.
Internal Cable Routing: The Sportif features internal cable routing, resulting in improved aerodynamics, prolonged cable lifespan, and a clean and sleek appearance.
Tapered Head Tube: With a tapered head tube, the Sportif ensures increased front-end stiffness and stability. This design optimizes steering control and responsiveness without adding unnecessary weight.
Thru-Axle: Equipped with thru-axles, the Sportif offers enhanced wheel security and overall lateral stiffness. Enjoy precise steering and optimal control during your rides.
Tire Clearance: Ample tire clearance allows for up to 35mm tires, providing versatility and adaptability for various road conditions.
Specifications
Specifications of Fuji Sportif 1.1 Road Bicycle
Frame | A2-SL alloy, tapered head tube, 68mm english threaded BB |
Fork | C10 carbon monocoque, tapered carbon steerer, 100x12mm thru-axle |
Crankset | FSA Gossamer 50/34T |
Bottom Bracket | FSA Mega Exo |
Derailleur | Front & Rear: Shimano 105 |
Shifters | Shimano 105 Dual Control, 2 x 11-speed |
Cassette | Shimano 105, 11-34T |
Chain | KMC X11 |
Wheelset | Oval Concepts 324 Disc, 24/28H |
Tires | Vittoria Zaffiro V, 700 x 30c, 26tpi |
Tubes | 700 x 30 presta |
Brakeset | TRP HY/RD, cable-hydraulic disc, 160/140mm rotors(46/49cm) |
Brake Levers | Shimano 105 |
Headset | FSA, 1 1/8” upper - 1 1/2” lower, integrated |
Handlebar | Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep |
Stem | Oval Concepts 313, 3D-forged 6061, +/-6° |
Tape | Selle Italia Smootape Corsa |
Saddle | Selle Italia X3 Boost |
Seatpost | Oval Concepts 300, alloy, 27.2mm |
Size | M (54cm) |
Geometry
Geometry of Fuji Sportif 1.1 Road Bicycle
Size | XXS | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|---|
Seat Tube C to T | 420 | 450 | 480 | 500 | 520 | 540 | 570 |
Seat Tube Effective | 460 | 490 | 520 | 540 | 560 | 580 | 610 |
Top Tube Effective | 505 | 515 | 530 | 545 | 560 | 580 | 600 |
Head Tube Length | 100 | 125 | 150 | 170 | 190 | 215 | 235 |
Seat Tube Angle / Actual | 75 | 74.5 | 73.8 | 73.5 | 73 | 73 | 73 |
Headtube Angle | 71 | 71.5 | 71.5 | 73 | 73 | 73 | 73 |
Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheelbase | 984 | 986 | 995 | 984 | 993 | 1013 | 1033 |
BB Drop | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
Fork Offset | 52 | 52 | 52 | 43 | 43 | 43 | 43 |
Trail | 63 | 60 | 60 | 60 | 60 | 60 | 60 |
Stack | 505 | 531 | 554 | 581 | 601 | 625 | 644 |
Reach | 370 | 368 | 369 | 373 | 376 | 389 | 403 |
Standover | 712 | 737 | 762 | 784 | 804 | 825 | 849 |
Stem | 80 | 80 | 80 | 90 | 90 | 110 | 110 |
Handlebar Width | 380 | 400 | 400 | 420 | 420 | 440 | 440 |
Crank | 170 | 170 | 170 | 170 | 175 | 175 | 175 |
Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
