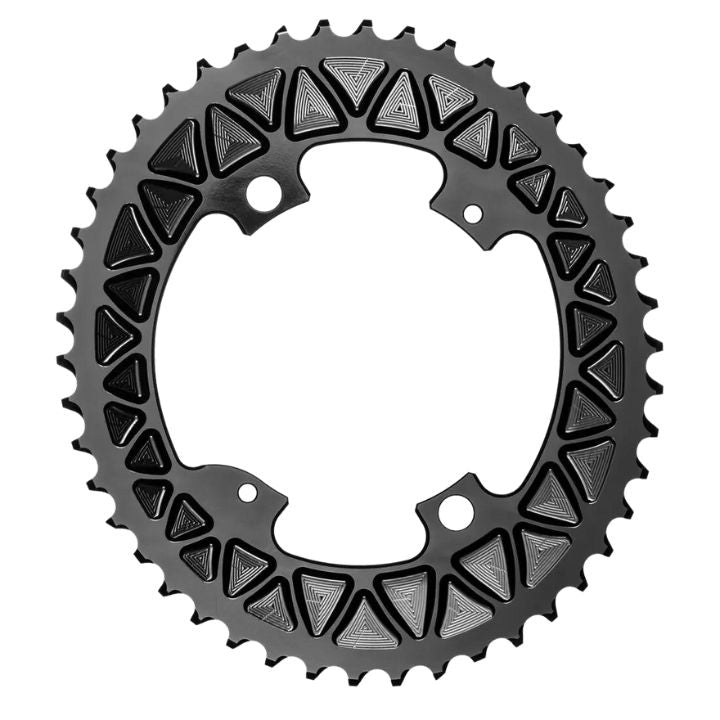

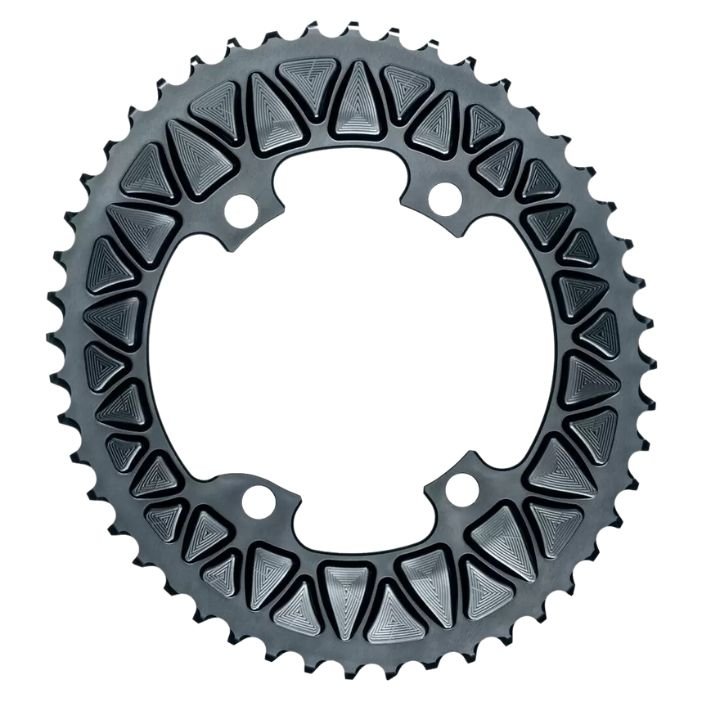

Absolute Black Oval Road/Gravel Sub-Compact Chainring 2X 110/4 BCD (48T/46T)

ROV4X/4BK_46T
₹12,995
Color: Black
Size

How To Use

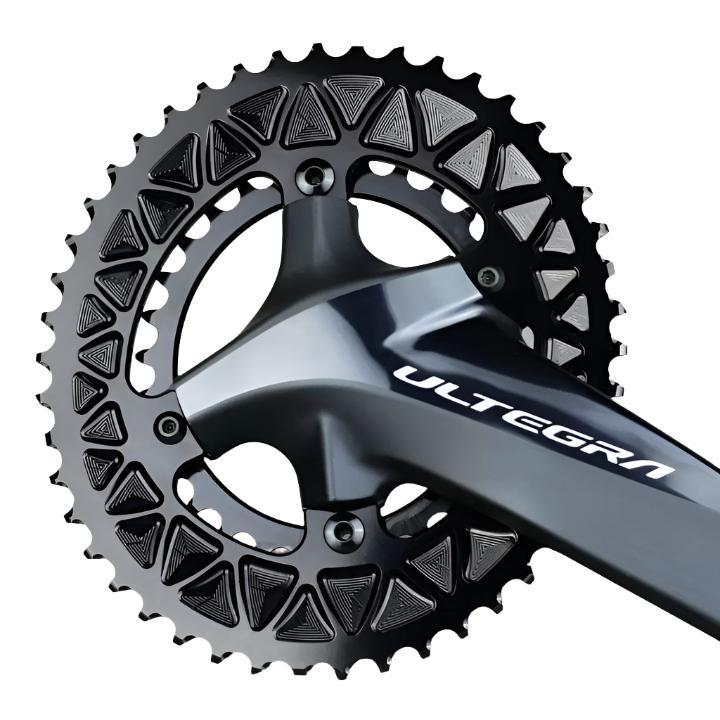

How To Mount:

  1. Remove your crank from the bike.
  2. Unscrew the 4 bolts holding the chainrings together using a T-30 Torx key.
  3. Remove both original rings.
  4. For 46/30T: Place the big chainring on the crank. Locate the triangular mark on the small chainring and ensure it sits behind the crank. Use the provided bolts (2x M5 Torx T-25 and 2x M7 Torx T-30) to lock both chainrings in place. Torque M5 bolts to 4-5Nm and M7 bolts to 5-7Nm.
  5. For 48/32T: Follow the same procedure, using the provided M7 bolts (Torx T-30) and torquing them to 5-7Nm.

Important:

  • Sub Compact chainrings only work in predefined size combinations. Add 30T and 46T, or 32T and 48T chainrings to your basket or set. Mounting bolts are included with the small ring.
  • 30T can only work with 46T and special bolt set 46/30. (bolts included with small ring)
  • 32T can only work with 48T and special bolt set 48/32. (bolts included with small ring)
  • No other combination or mix of rings will work. Aesthetic bolt covers are not offered for this design.
  • Always use a new chain when fitting new chainrings.
  • SRAM Yaw Front Derailleur Compatibility: Not compatible with SRAM Yaw front derailleurs. Replace with a Shimano equivalent for compatibility.

Speed at Cadence Calculation:

  • 46x11T combination reaches 47.5km/h (29.5mph) at 90rpm, increasing to 53km/h (32.9mph) at 100rpm.
  • 48x11T combination reaches 49.7km/h (30.9mph) at 90rpm, increasing to 55km/h (34.3mph) at 100rpm.

Premium Sub-Compact Oval Chainrings for Optimal Climbing

Description

Absolute Black proudly presents the premium Gravel-Road 110/4 oval chainrings in Sub-compact sizes, designed to revolutionize your climbing performance and enhance cadence. With an emphasis on increased cadence for reduced perceived effort, these chainrings empower riders to conquer any terrain with confidence.

Optimized Climbing and Cadence: Elevate your climbing capabilities with the Sub-compact sizes of 48/32T and 46/30T, allowing you to tackle steep gradients and alpine ascents with ease. By optimizing your cadence, these chainrings enable smoother pedaling and enhanced efficiency, ensuring you can ride anywhere and climb anything.

Unparalleled Versatility: Absolute Black stands out as the sole provider of super compact chainring sizes compatible with all Shimano 110/4 BCD cranks. Whether you prefer the 30T or 32T option, these chainrings offer unparalleled versatility, allowing you to tailor your drivetrain for optimal performance across diverse riding conditions.

Enhanced Efficiency and Performance: Backed by extensive research and development, Absolute Black oval chainrings deliver unmatched efficiency and performance gains. Experience smoother power delivery, improved traction, and reduced fatigue, allowing you to ride longer, harder, and more comfortably than ever before.

Crafted for Durability and Reliability: Engineered with precision and crafted from premium materials, Absolute Black oval chainrings are renowned for their durability, reliability, and long-lasting performance. Ride with confidence knowing you're equipped with the finest oval chainring technology available.

Whether you're tackling challenging climbs on the road or exploring rugged gravel terrain, the Absolute Black Oval Road/Gravel Sub-Compact Chainring 2X 110/4 BCD (48T/46T) empowers you to conquer any climb with confidence and ease.

Features
  • Optimized Climbing and Cadence: Sub-compact sizes of 48/32T and 46/30T enable you to tackle steep gradients and alpine ascents with ease. Optimized cadence ensures smoother pedaling and enhanced efficiency.
  • Unparalleled Versatility: Only Absolute Black offers these super compact chainring sizes compatible with all Shimano 110/4 BCD cranks, providing unparalleled versatility and customization options.
  • Enhanced Efficiency and Performance: Extensive research and development ensure smoother power delivery, improved traction, and reduced fatigue.
  • Crafted for Durability and Reliability: Made from premium materials, these chainrings ensure long-lasting performance and reliability even under demanding conditions.

Advantages:

  • Special oval shape helps you climb easier and faster (Patent Pending)
  • Eliminates mashing on long climbs and the need for larger cassettes
  • Ideal for sportive races and steep climbs, preventing the need to walk
  • Maintains high top speeds on flat terrain
  • Reduces stress on knees and keeps legs fresher for longer
  • Allows better cadence maintenance while climbing
  • Reduces possibility of leg cramps

Specifications
  • Size: 46T (99g), 48T (110g)

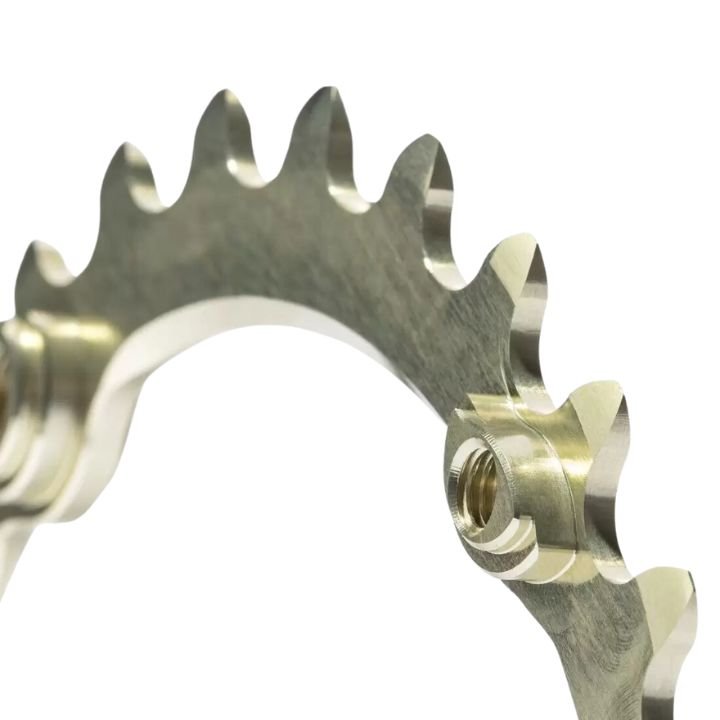

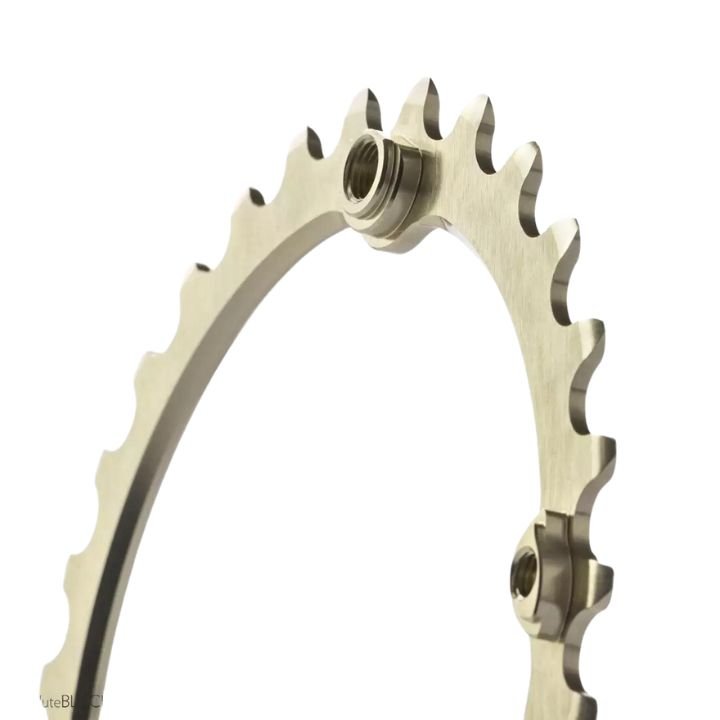

  • Color Options: Black, Grey, Champagne

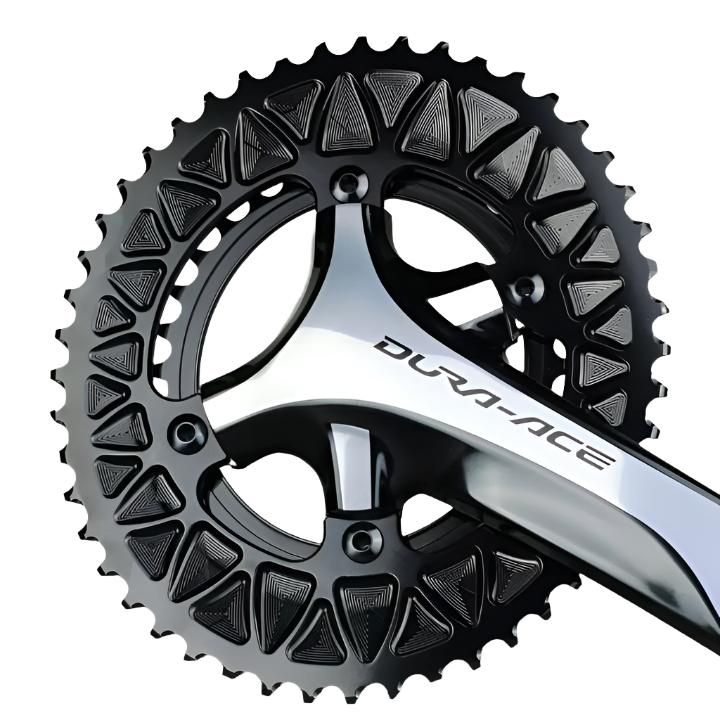

  • Compatibility: Shimano Dura-Ace 9100, R9120, R9150 & R9170 Di2, Ultegra 8000, R8020, R8050 & 8070 Di2, 105 R7000, R7020, R7070, Dura-Ace 9000 & Di2, Ultegra 6800 & Di2, Shimano 105 5800, Tiagra 4700; 10 / 11 / 12spd compatible.
  • Bolts: Special bolts included with 30T (2xM5 TI / 2xM7 AL), and 32T (4xM7 AL).

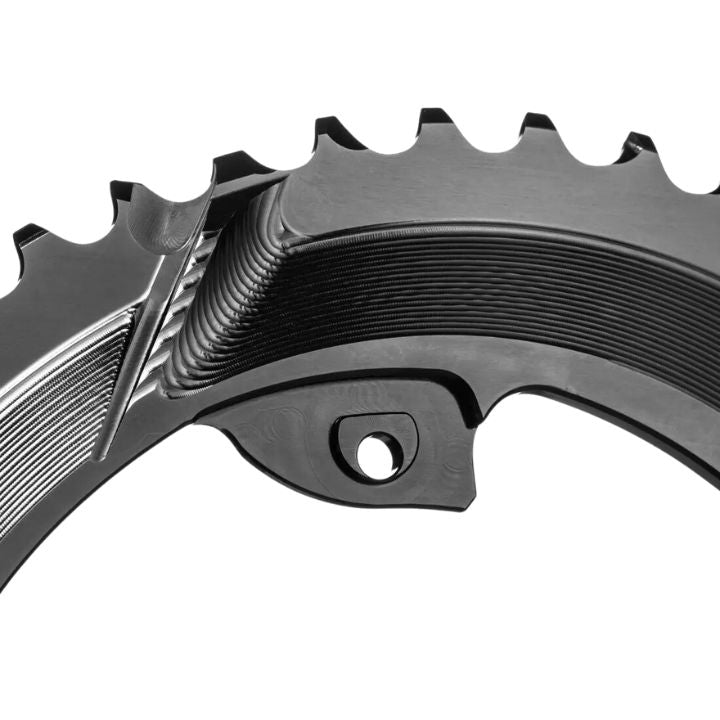

  • Material: CNC machined 7075 Txxx Aluminum with Type II anodizing for long-lasting construction.
  • Ovality: Optimized for each size separately. 46/48T - 10-11.2% ovality. Timing of 108 - 110.5° after TDC (top dead center) - Ideal for climbing (Patent Pending).
