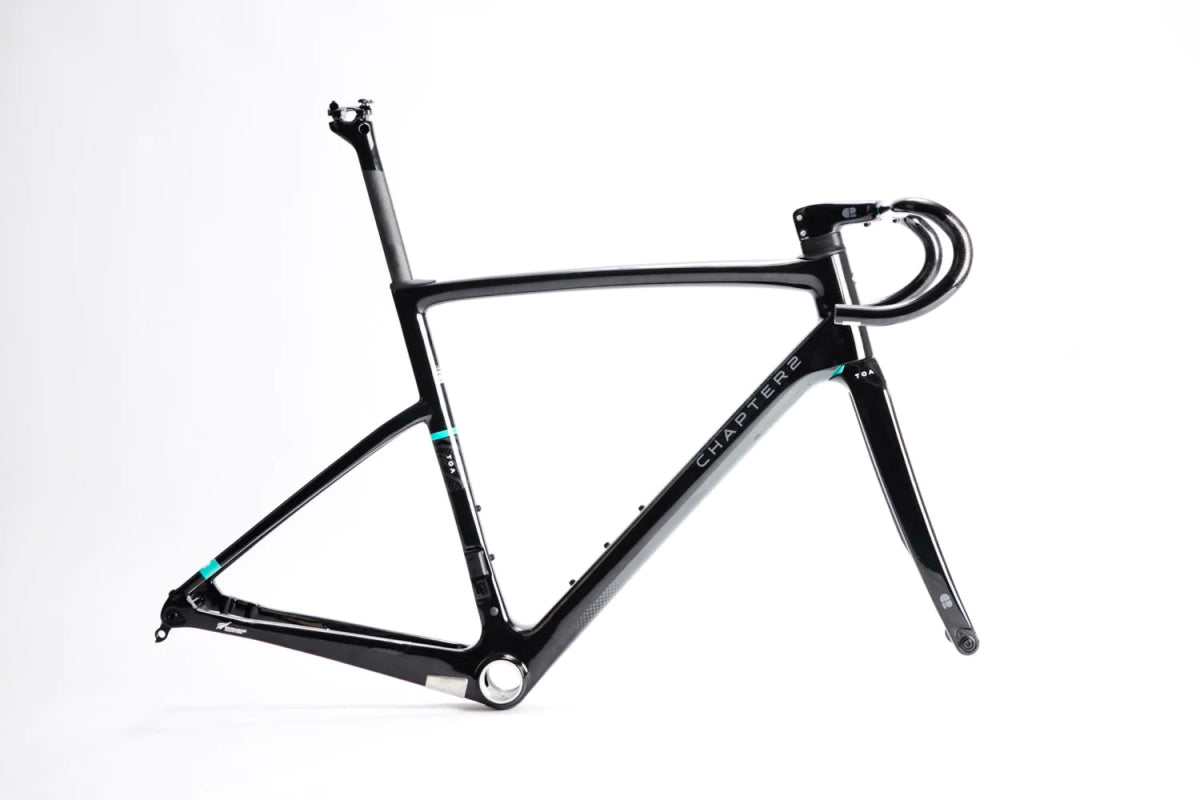

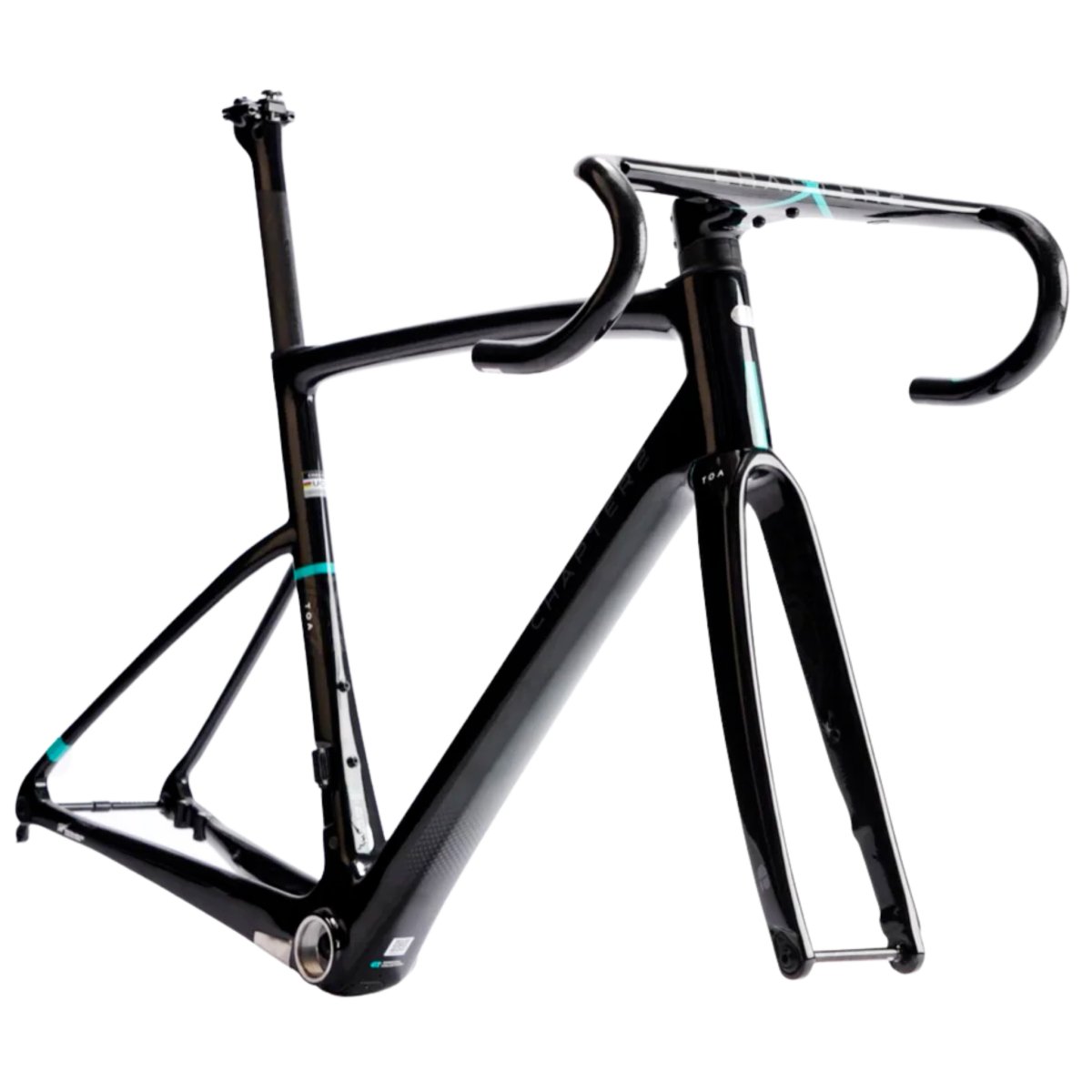

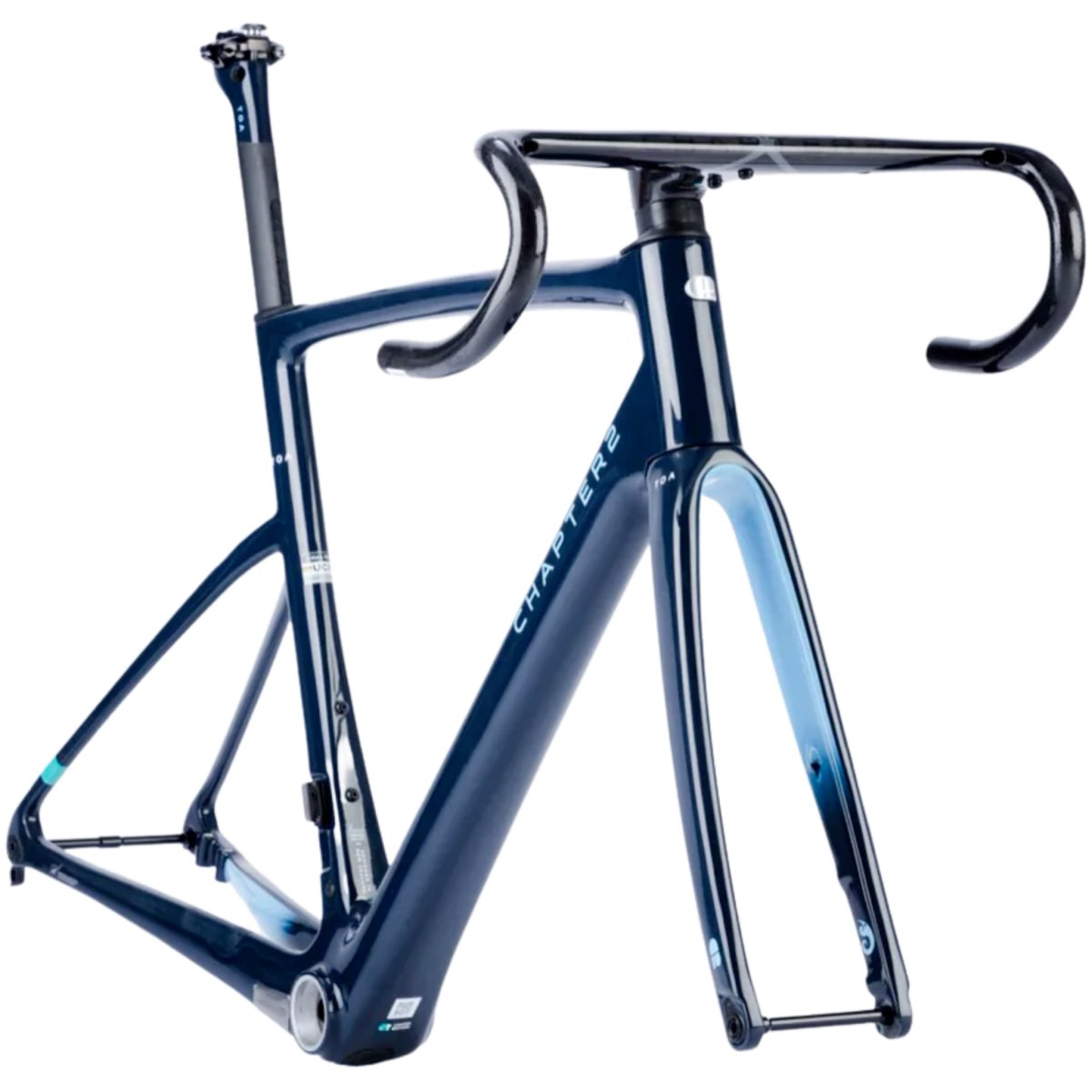

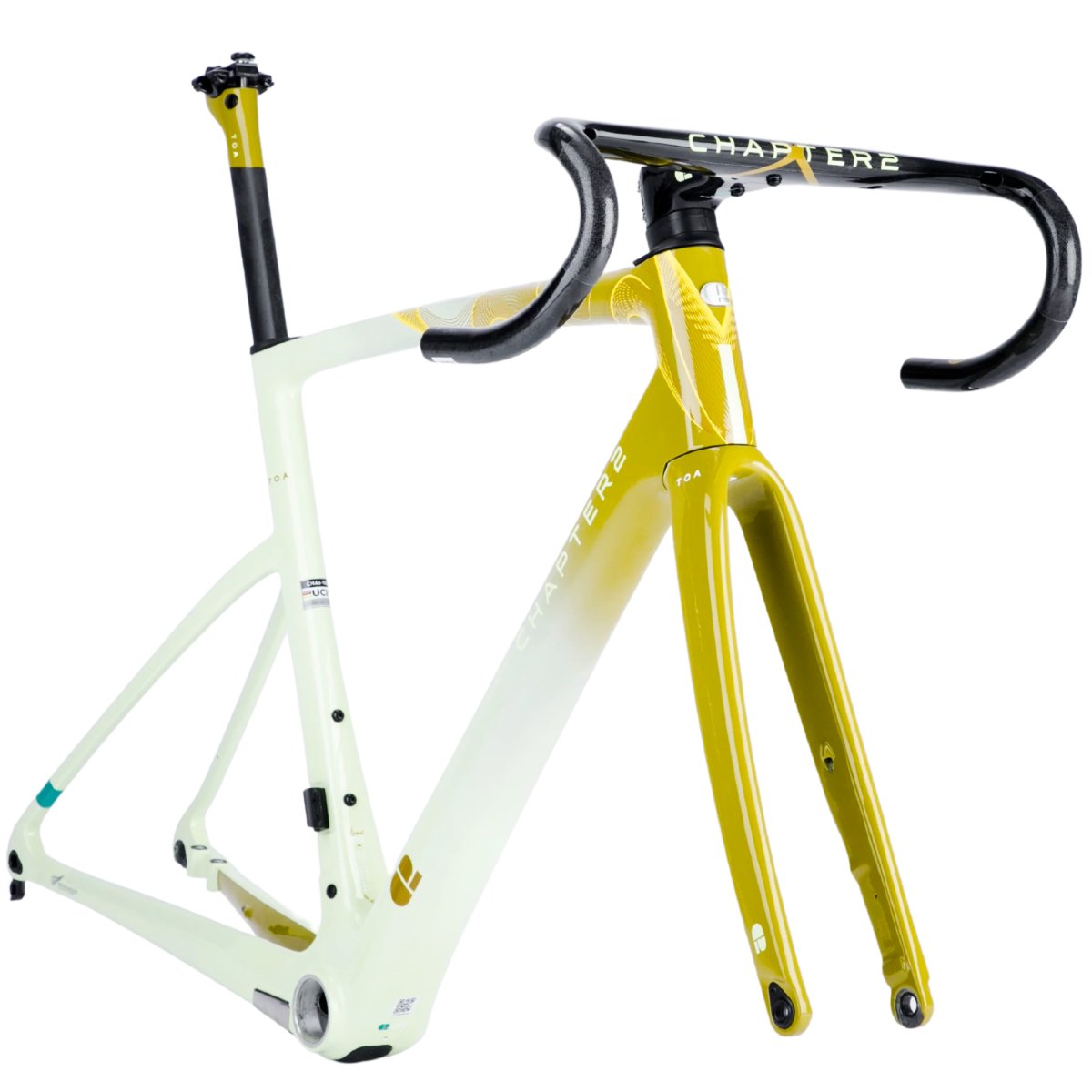

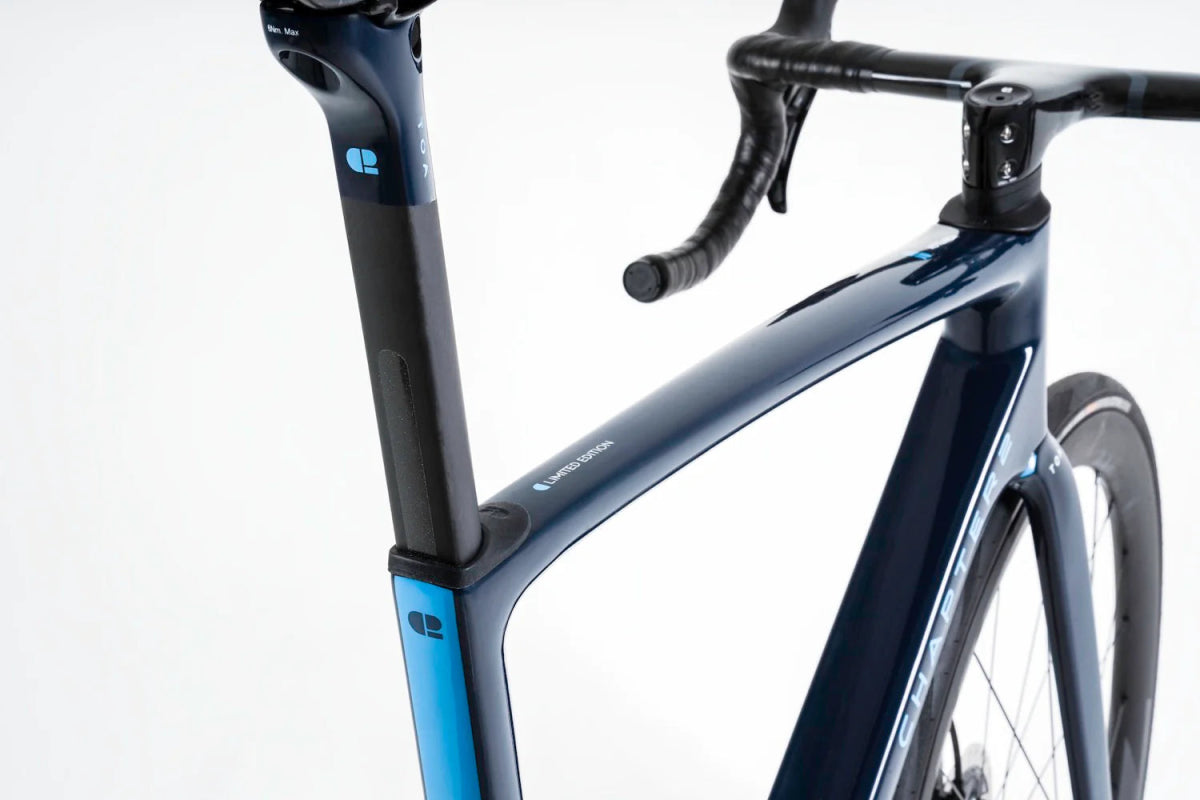

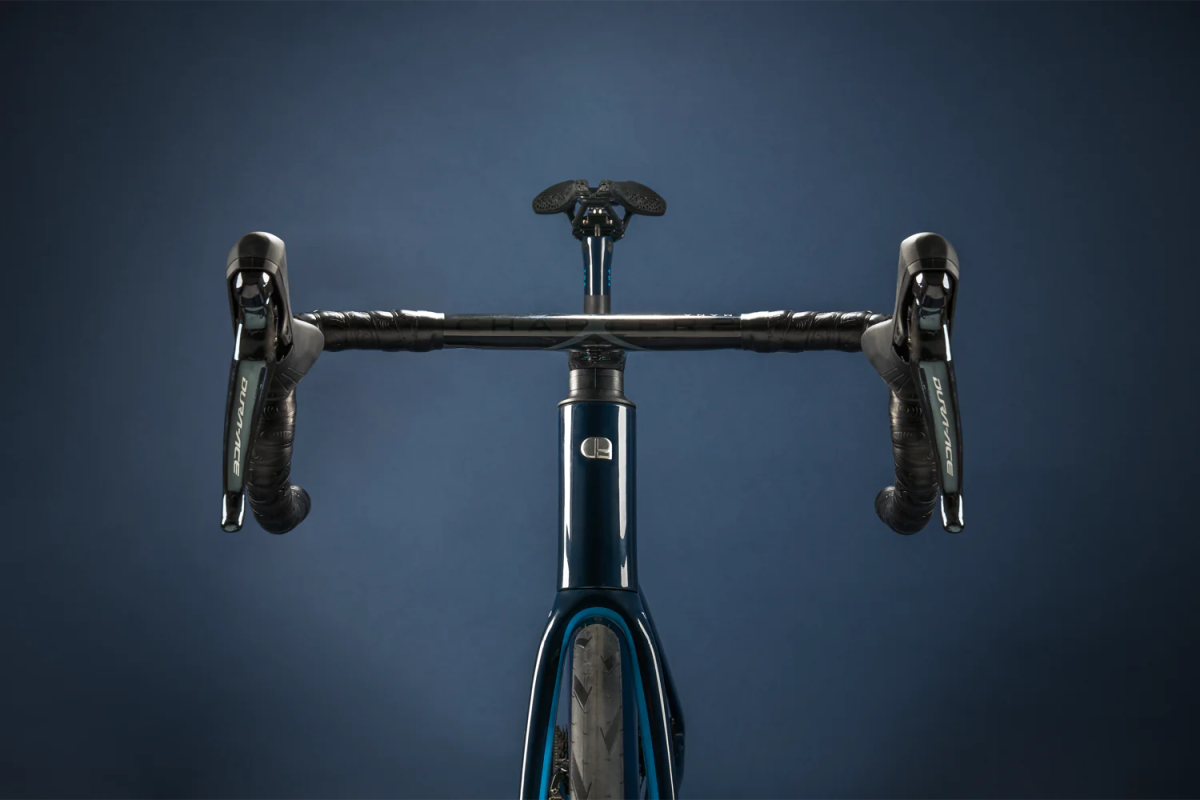

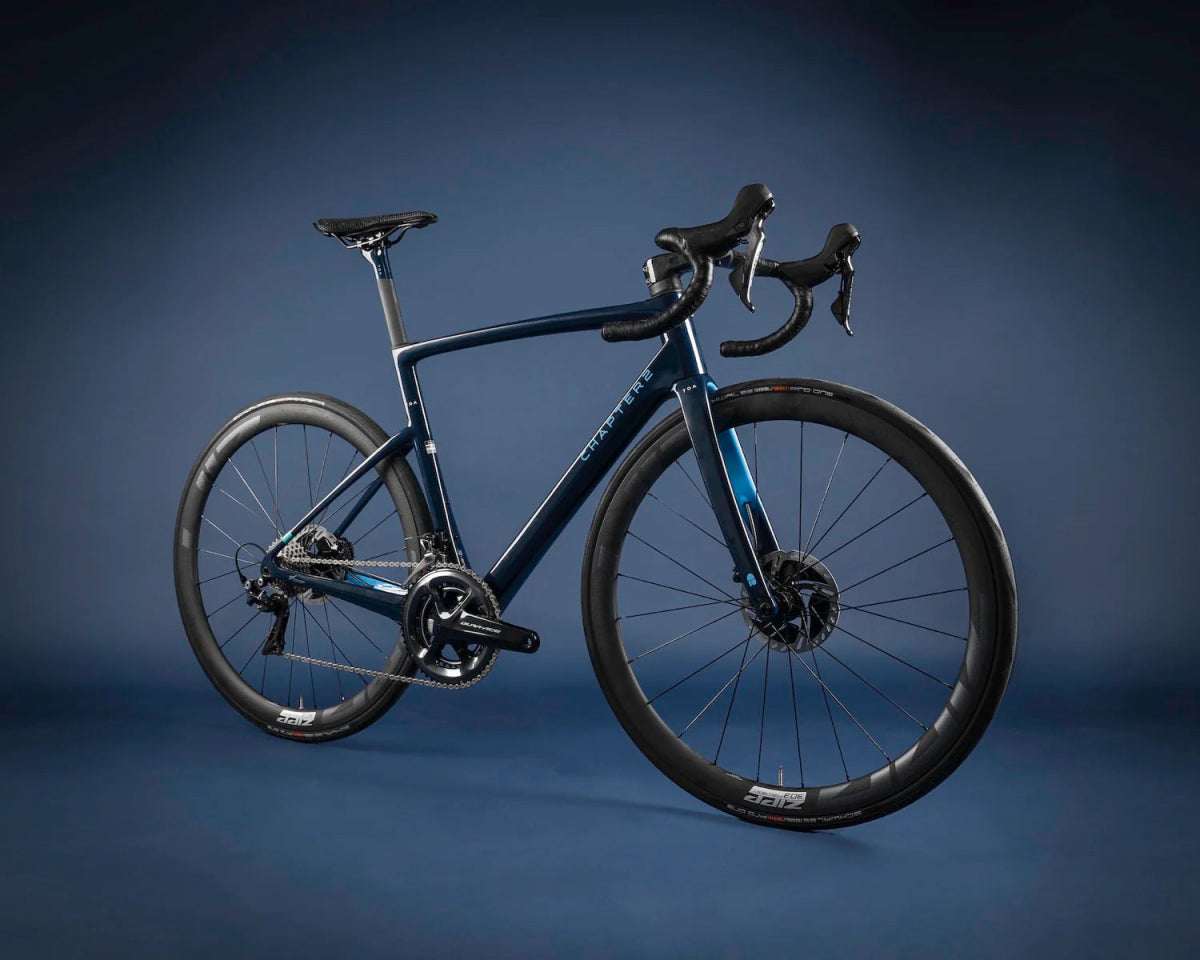

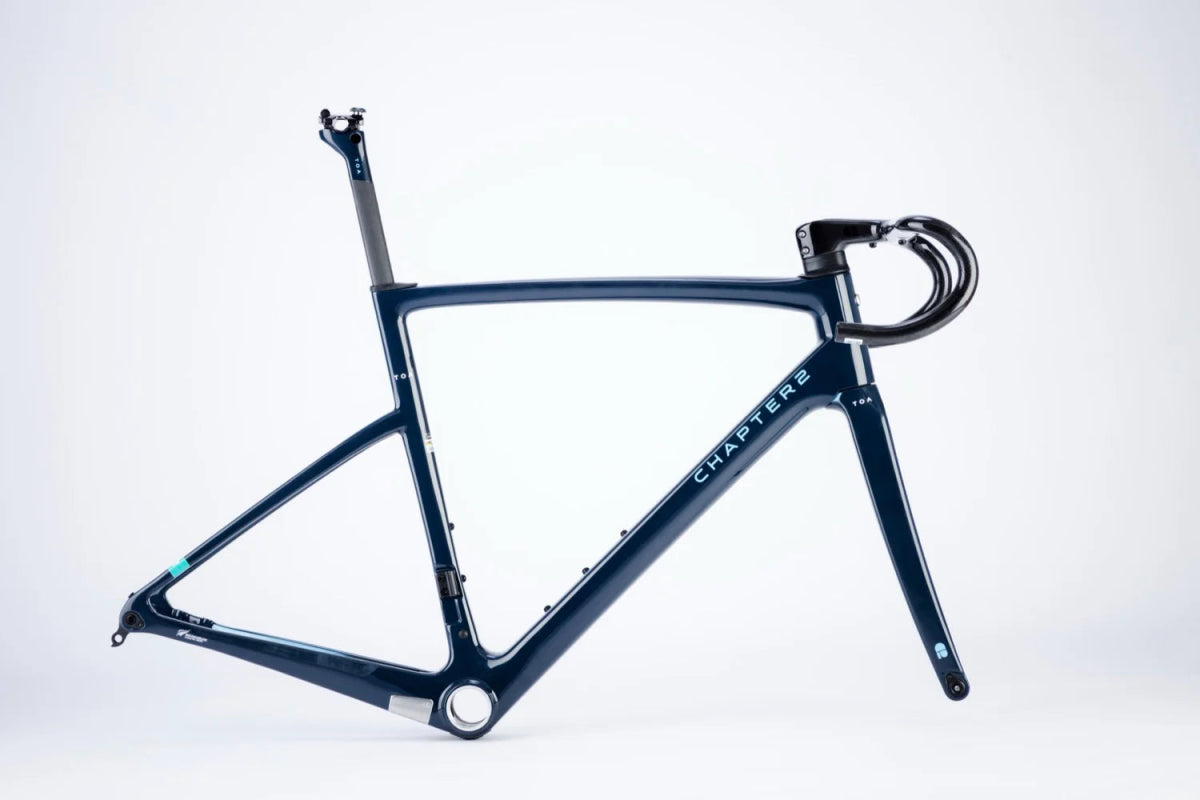

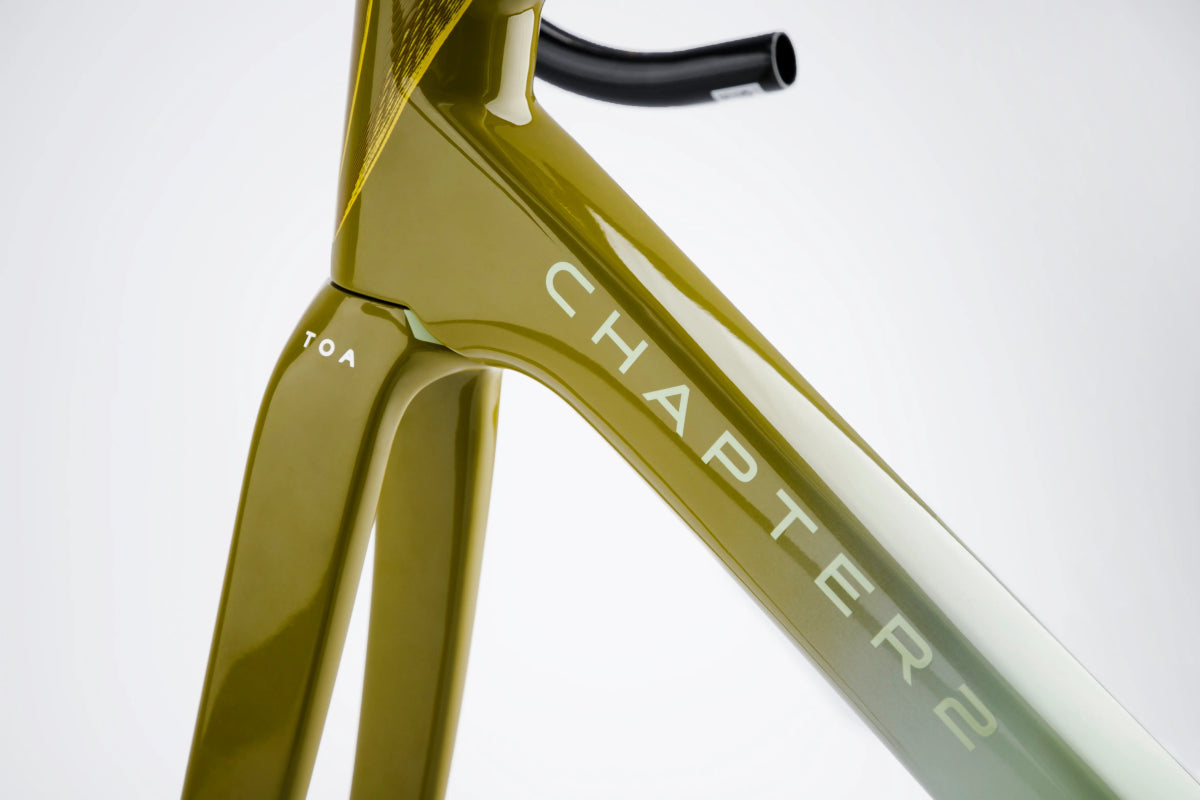

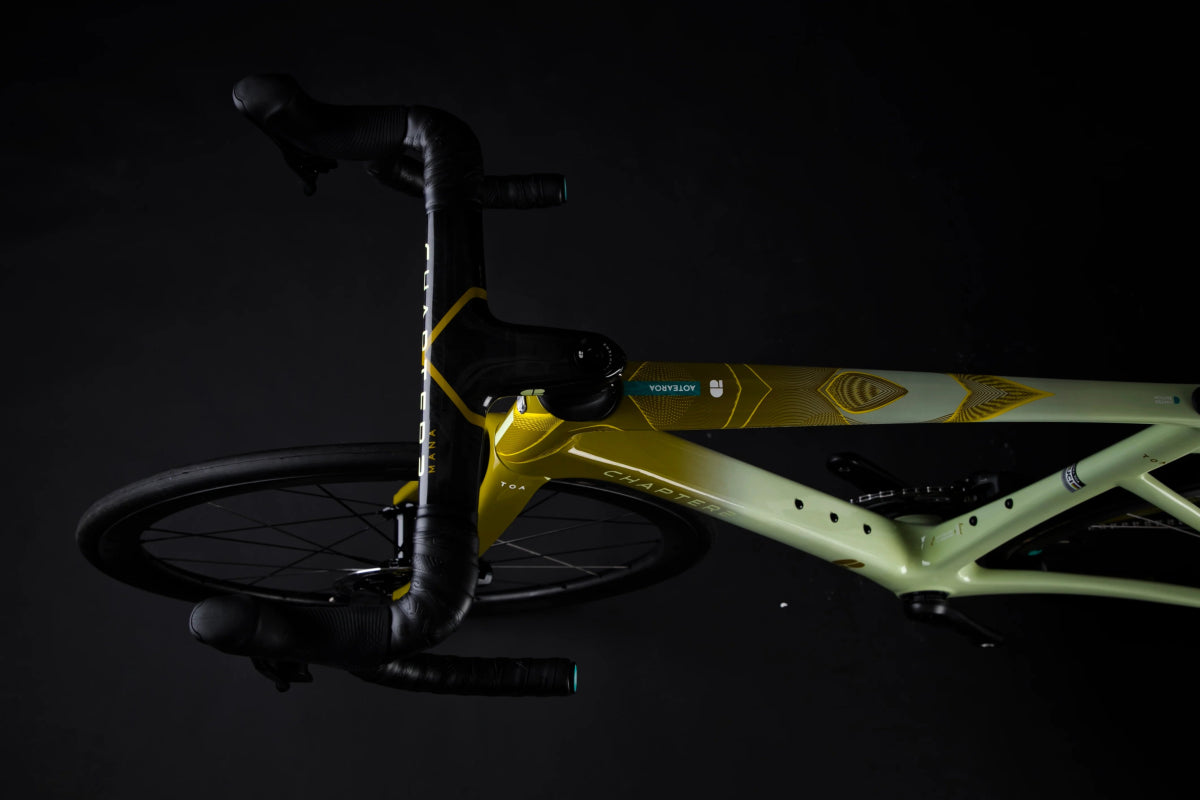

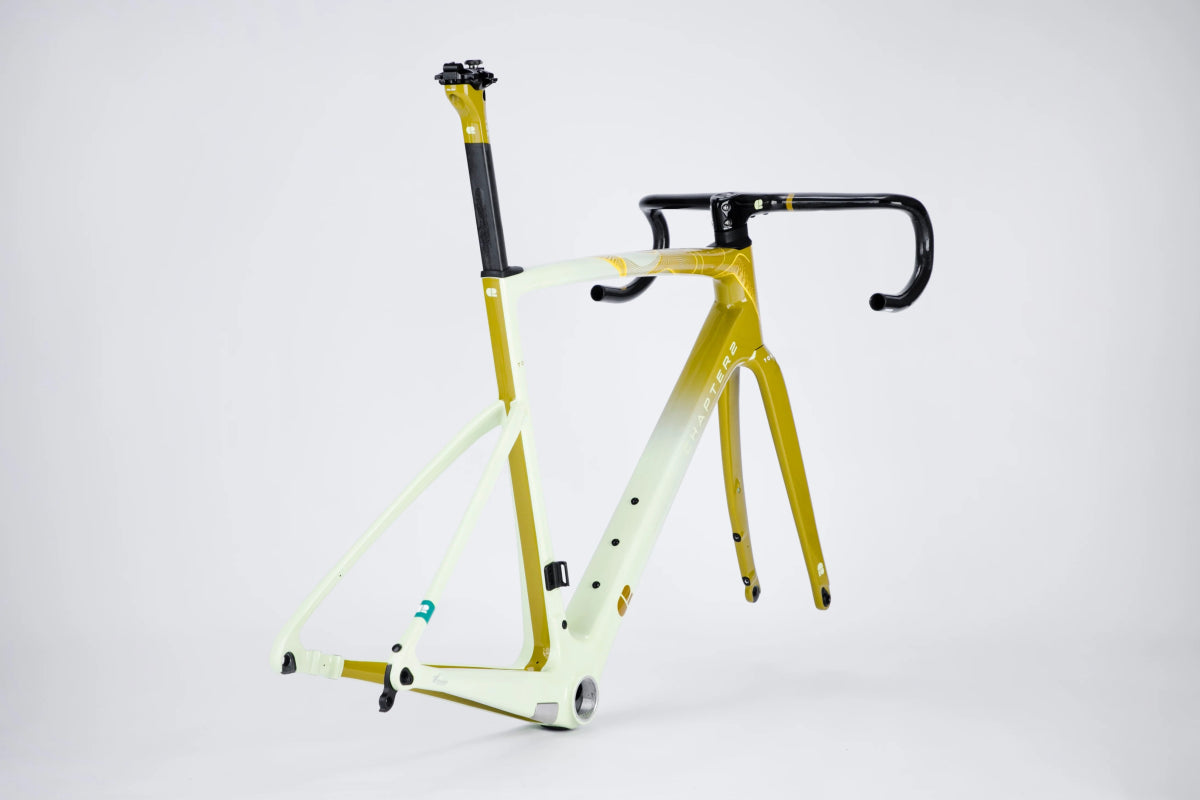

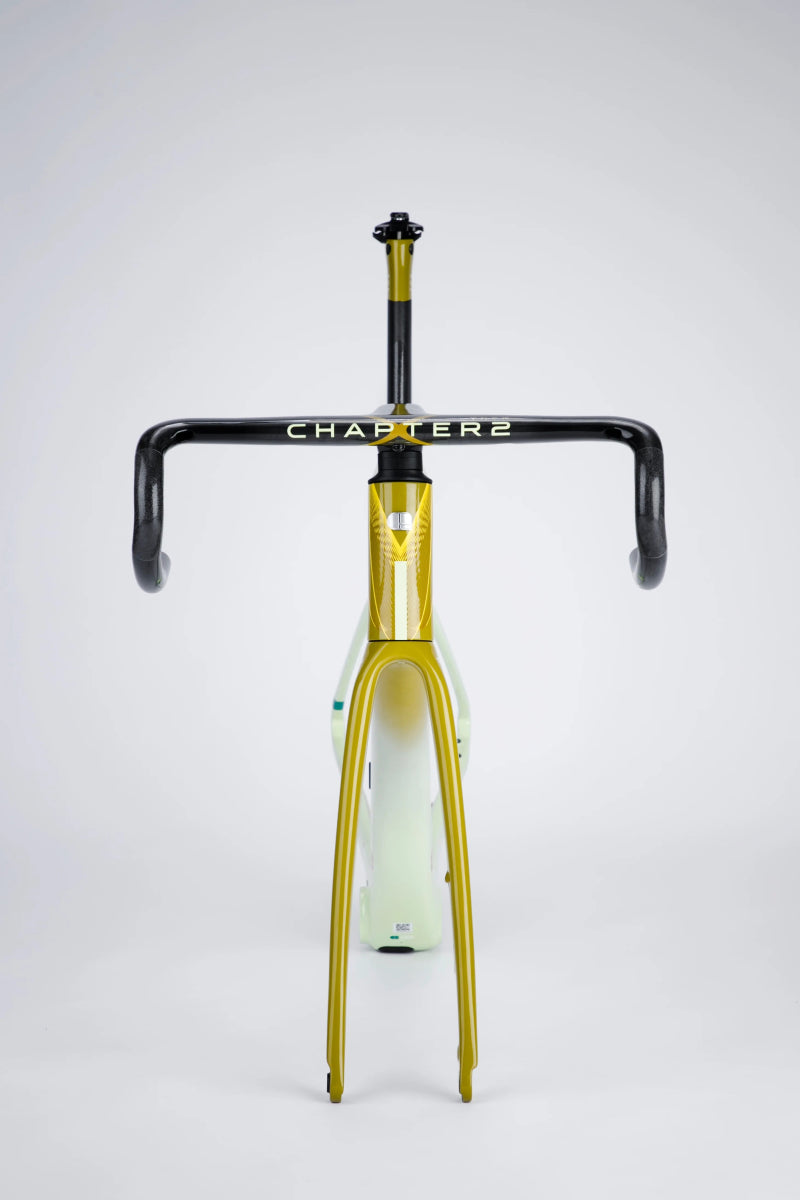

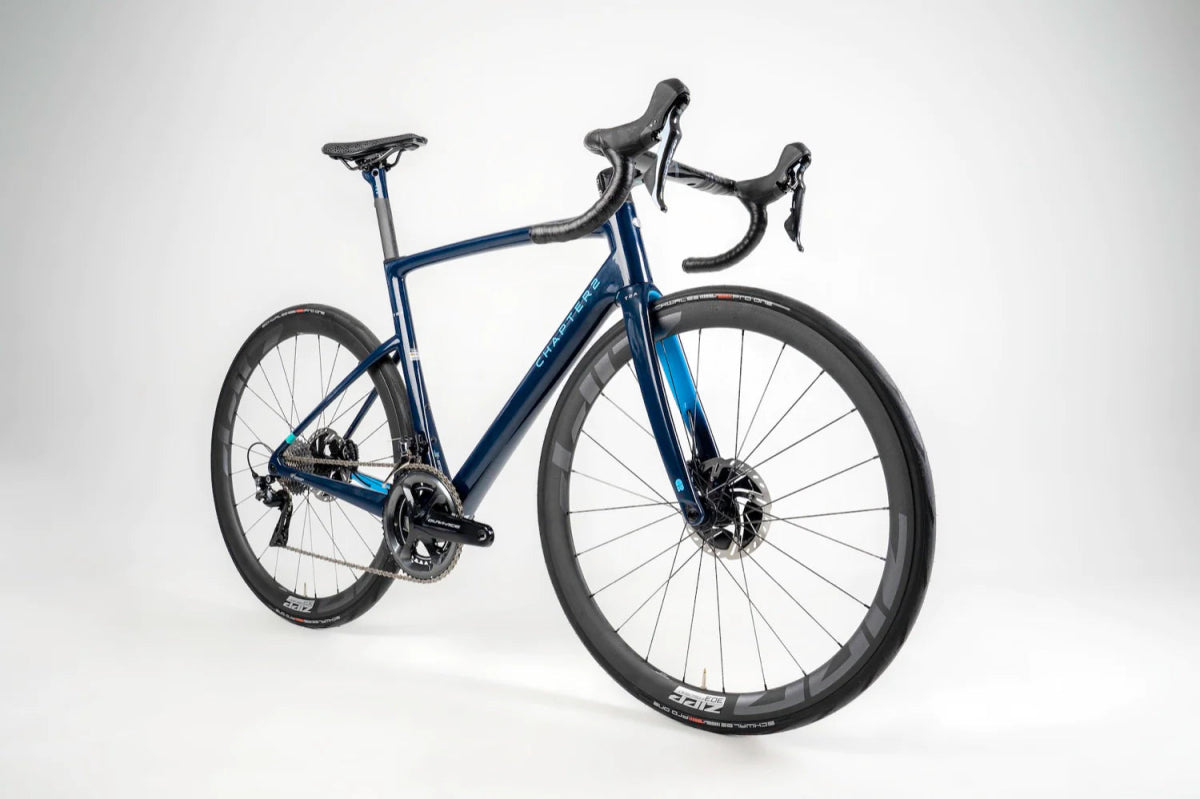

Chapter 2 TOA Race Disc Brake Frameset
118082FSZZZ03_S
Frequently Bought Together

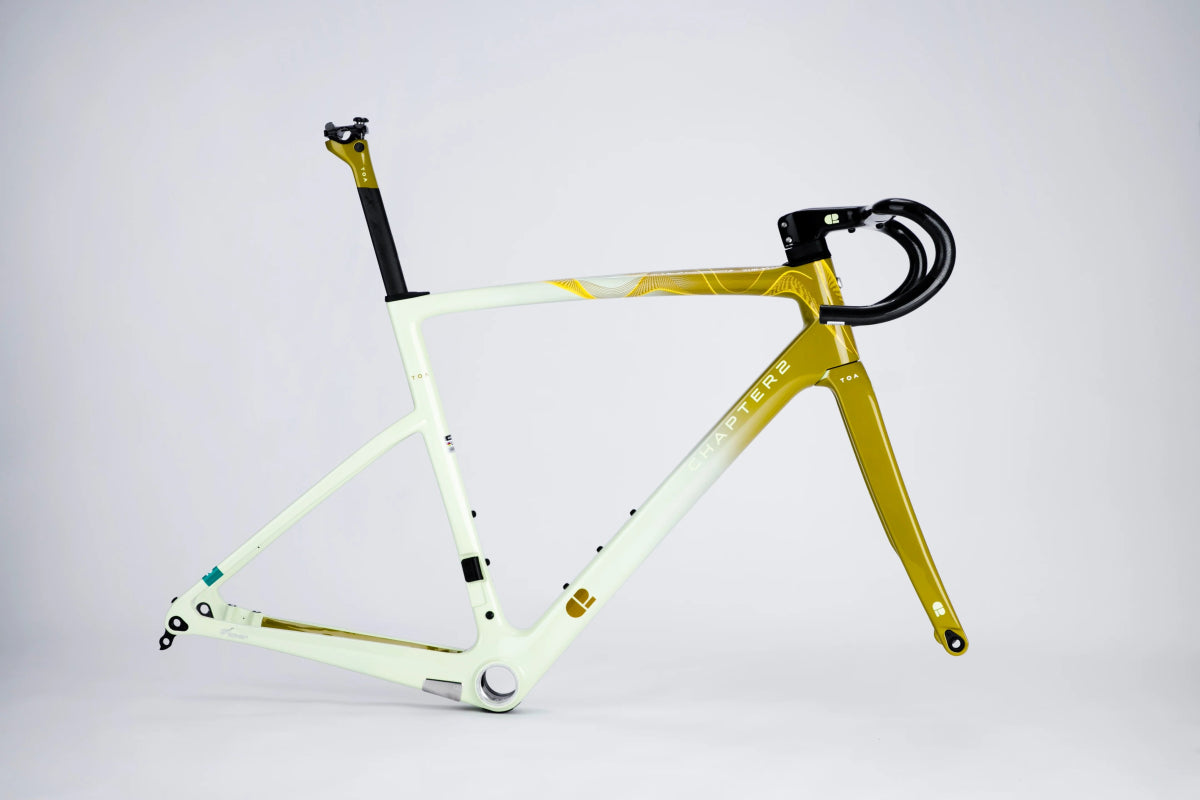

Chapter 2 TOA Race Disc Brake Frameset: Victorious Engineering, Unmatched Performance
Embark on a journey of victory with the Chapter 2 TOA Race Disc Brake Frameset—an exquisite creation that stands as the culmination of 2-½ years of meticulous development. "TOA," meaning "to be victorious, win" in Maori, embodies an all-encompassing carbon fiber race-ready frame platform that sets new standards in design, engineering, and manufacturing precision.
Performance All-Road Excellence: Drawing inspiration from the Tere's Performance All-Road DNA and the AO's versatility, the TOA redefines excellence in road cycling. Every detail has been carefully considered to deliver a frame that represents the epitome of race-ready perfection.

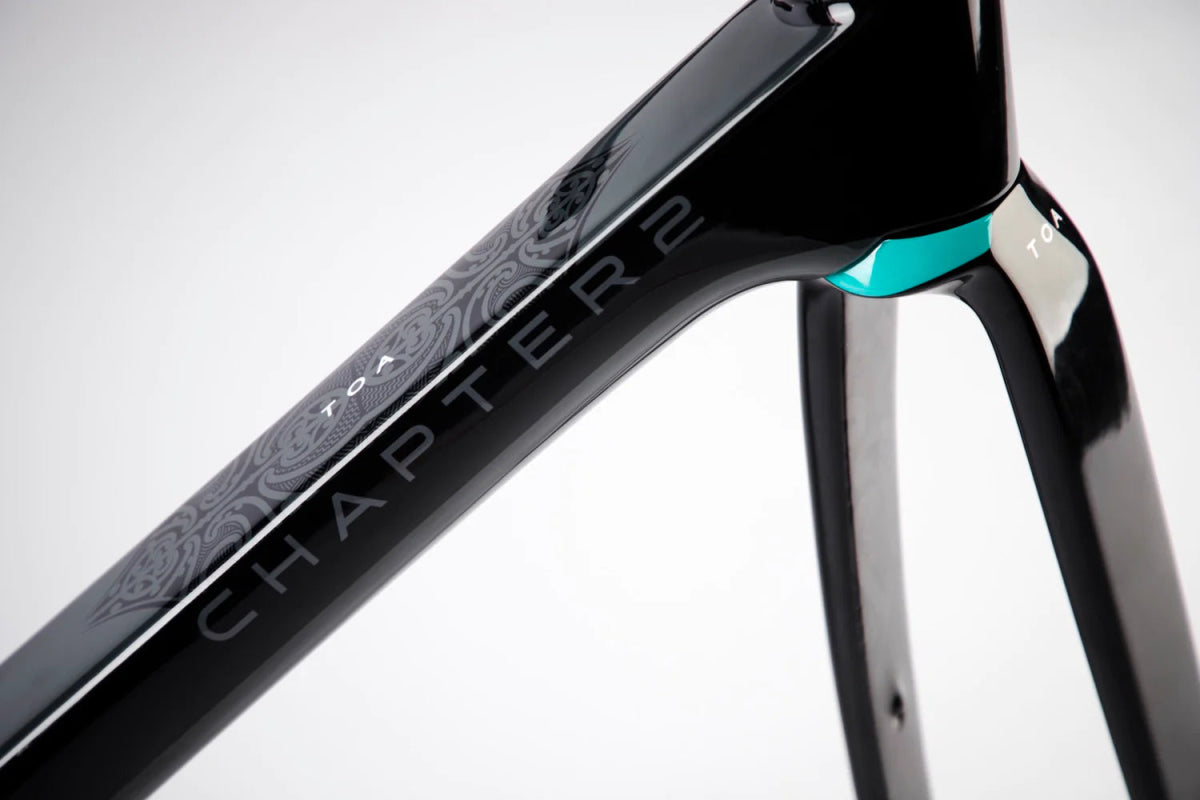

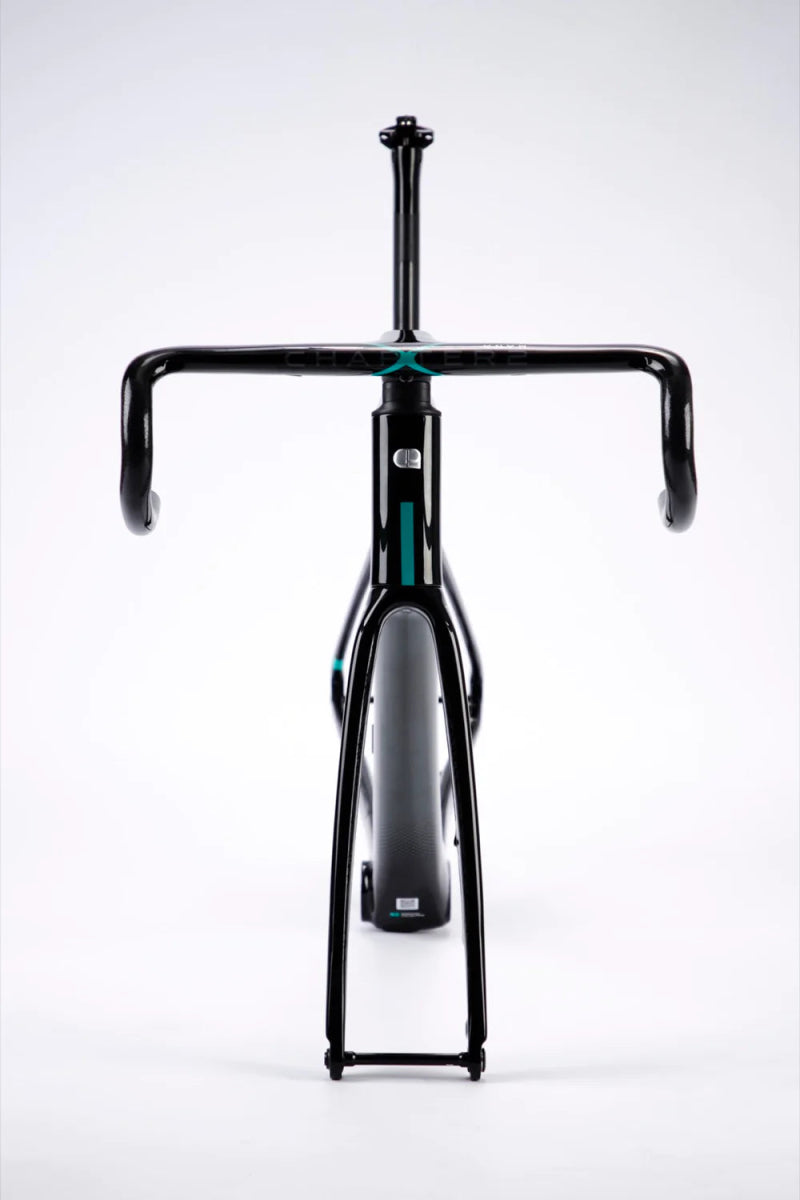

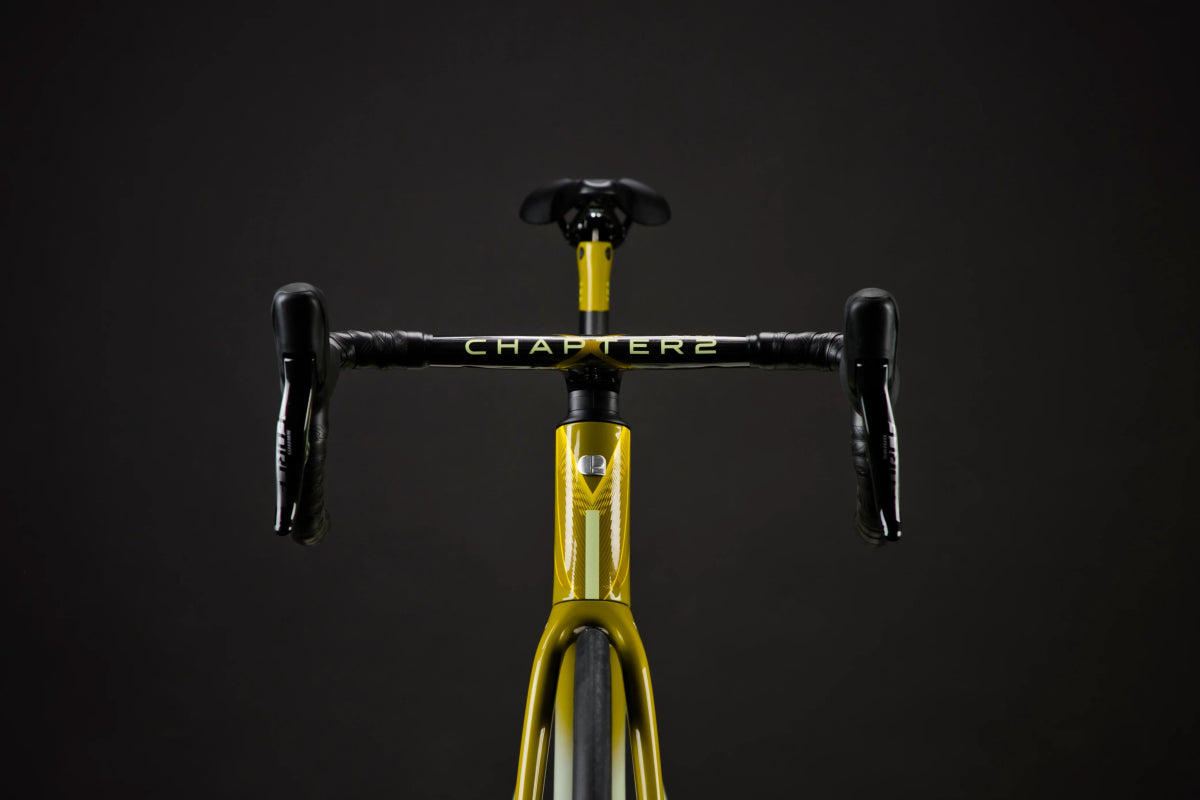

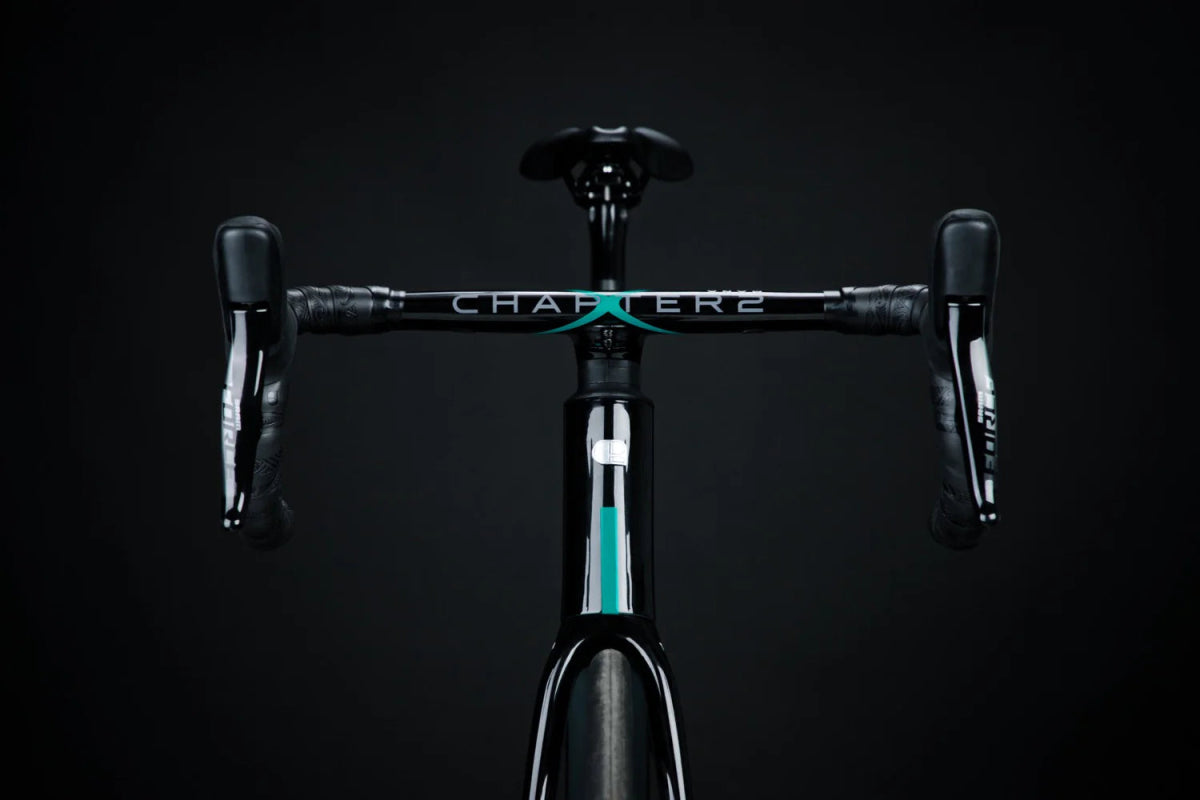

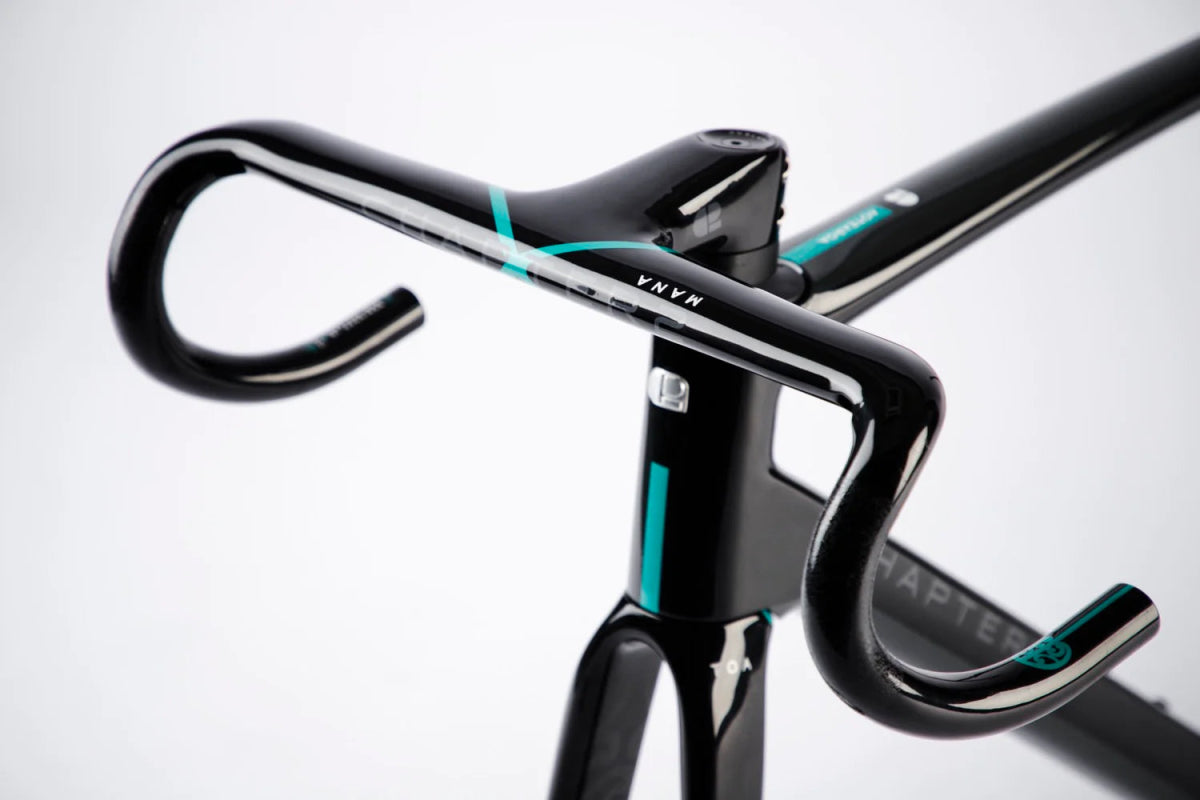

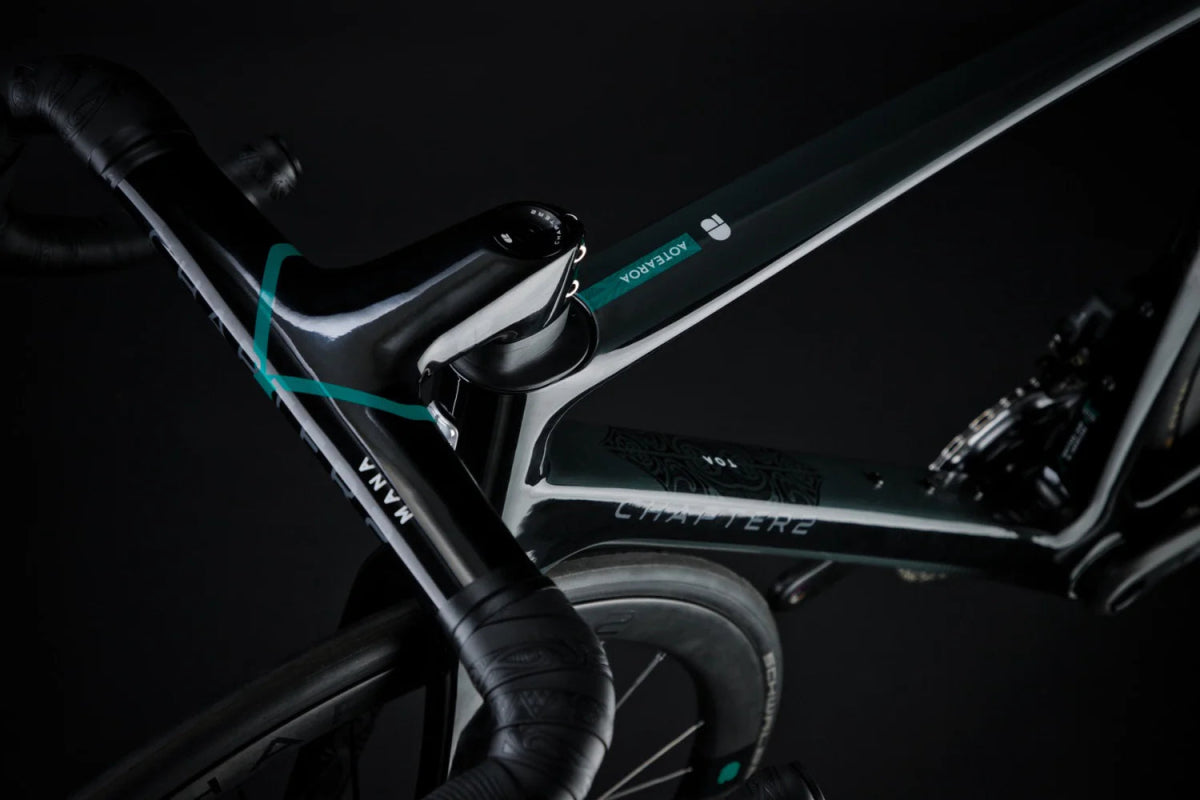

Aerodynamic Seamless Transition: The TOA takes aesthetics and aerodynamics to new heights by concealing all cables and hoses from sight and the wind. This meticulous design creates a seamless transition between the Mana Bar and the TOA's Kamm-Tail chassis, enhancing aerodynamic efficiency and elevating the overall riding experience.

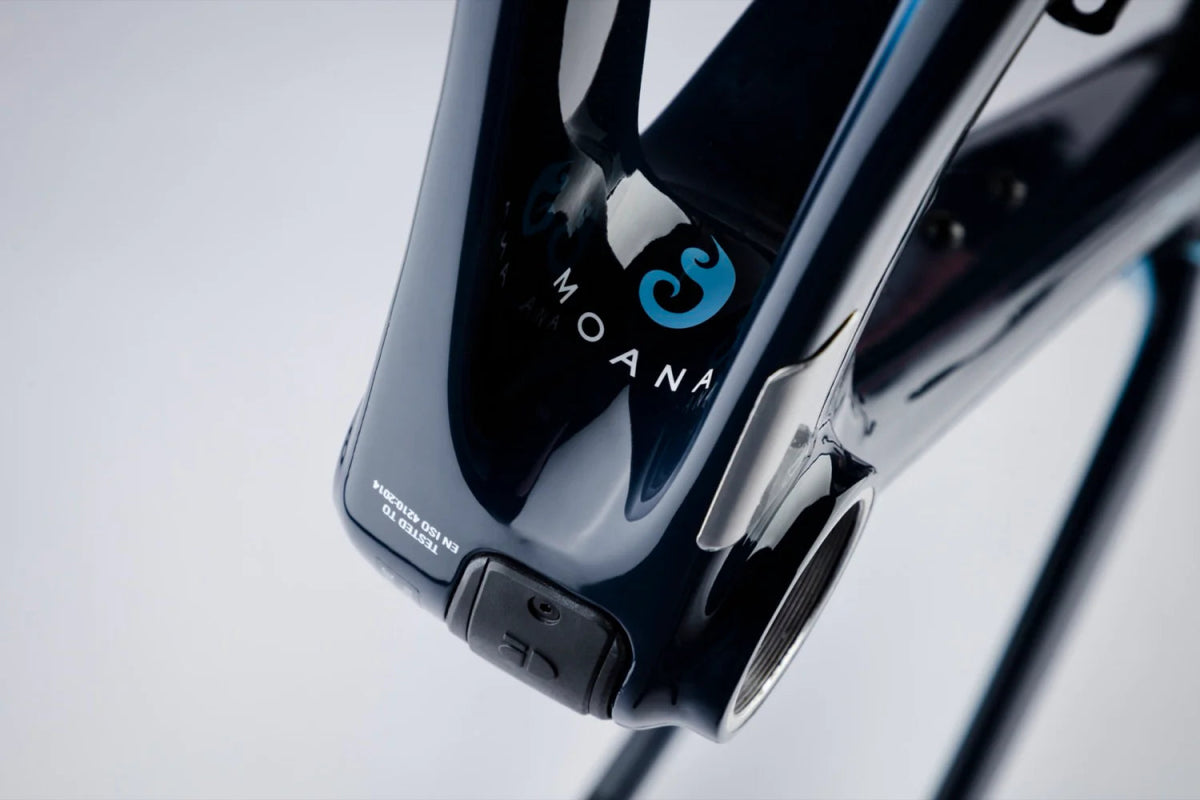

T47 Bottom Bracket Innovation: Ease of maintenance meets enhanced stiffness with the TOA's T47 Bottom Bracket. The aluminum BB Shell, in harmony with high-tensile carbon strategically laid into the BB area, increases stiffness by an impressive 7.3% over the Tere. Experience unparalleled power transfer and responsiveness with this innovative design.

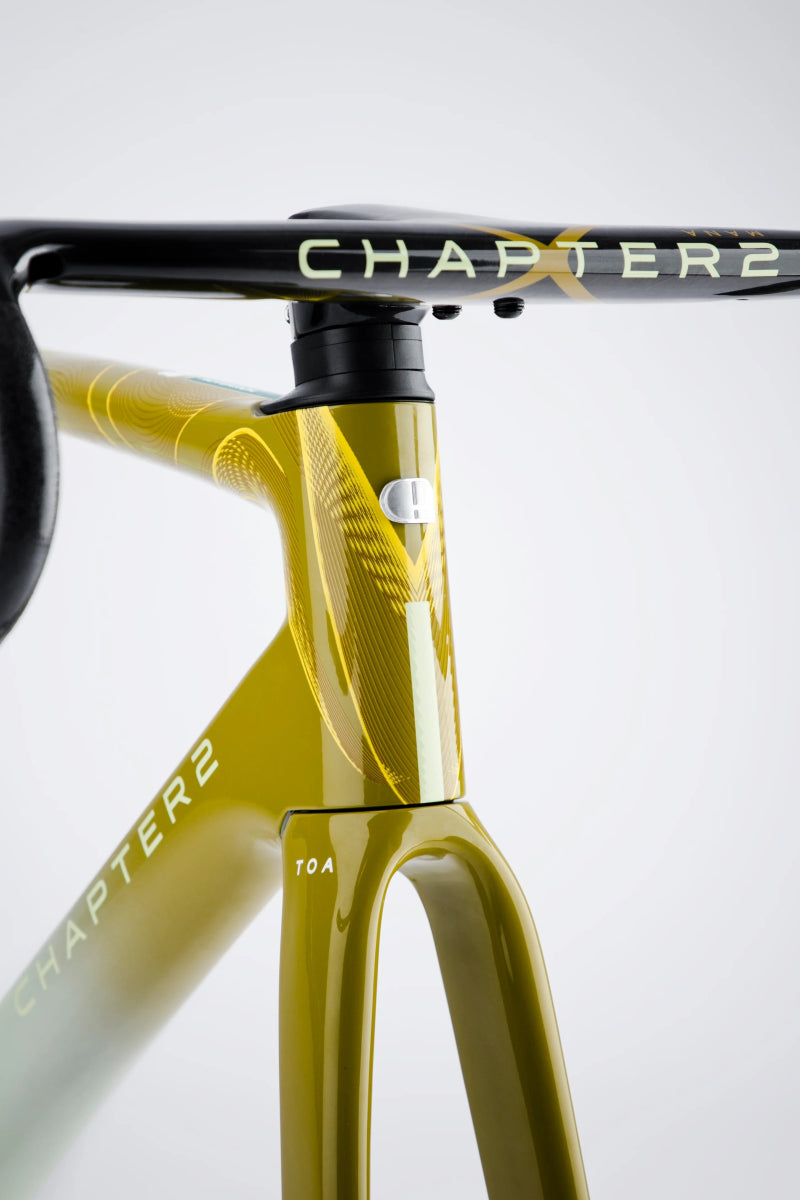

Latex Mandrel for Optimal Stiffness: The use of a Latex mandrel for the entire front triangle elevates the TOA's Headtube stiffness by an astonishing 23.5% over the Tere. Feel the difference in out-of-the-saddle efforts and power-to-the-pedals moments, as the TOA delivers a ride that responds to your every command with precision.

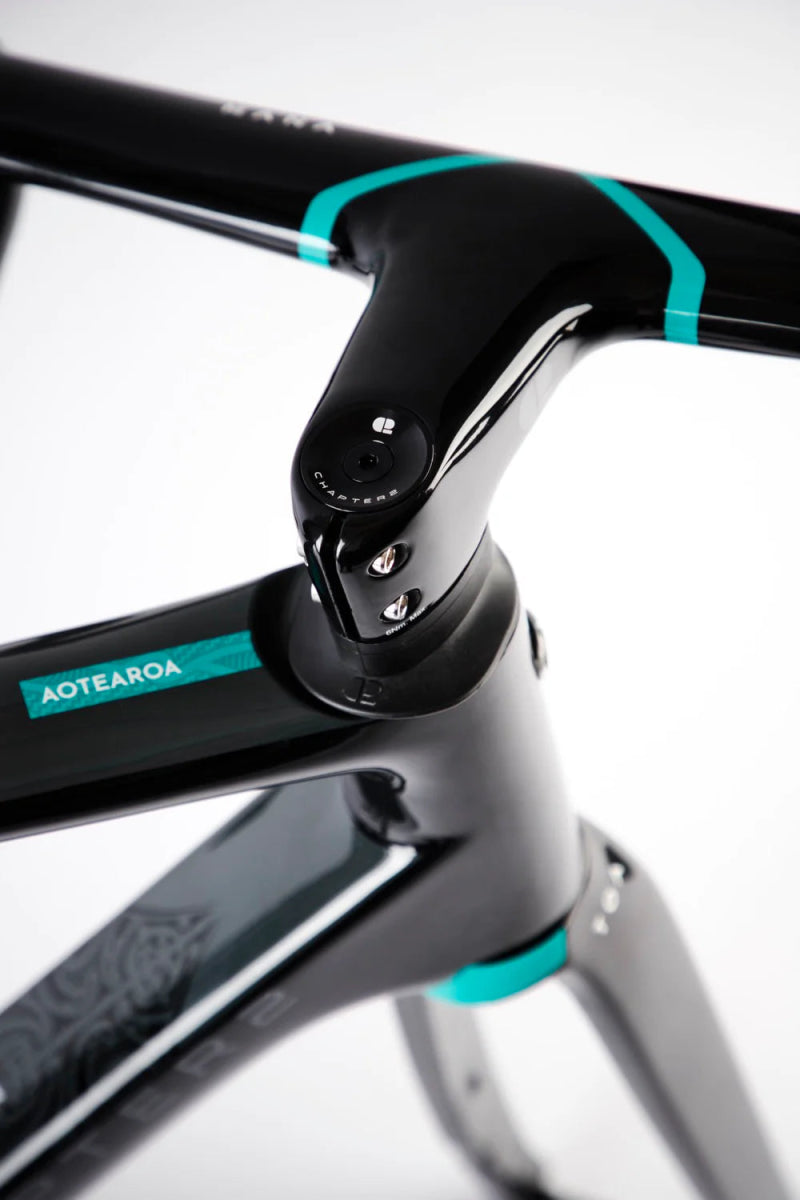

Enhanced Features for Ultimate Satisfaction: The TOA frameset boasts a range of enhancements that contribute to its exceptional performance. From the bundled Mana Bar and Quick-Fit headset spacers to the impressive 32mm tire clearance and vibration-dampening Seatstays and Seatpost—every detail has been meticulously crafted to tick all the right boxes for discerning riders.
Unmatched Precision, Unrivaled Victory: The Chapter 2 TOA Race Disc Brake Frameset isn't just a frame; it's a testament to precision engineering, thoughtful design, and an unwavering commitment to victory. Experience the thrill of riding a frame that embodies the pursuit of excellence, setting you on a path to unrivaled victory.
Features
Features of Chapter 2 TOA Race Disc Brake Frameset
- Stiff Racing Frame: Improved Power Transfer & Precise Steering
- Fully Integrated Cabling: Improved Aerodynamics - Clean and Sleek Aesthetics
- Aero Optimized - Kamm-Tail Downtube - Integrated Fork Crown - Integrated Cockpit
- Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
- Up to 32mm Tire Clearance: Increased Tire Options - Improved Traction - Improved Compliance

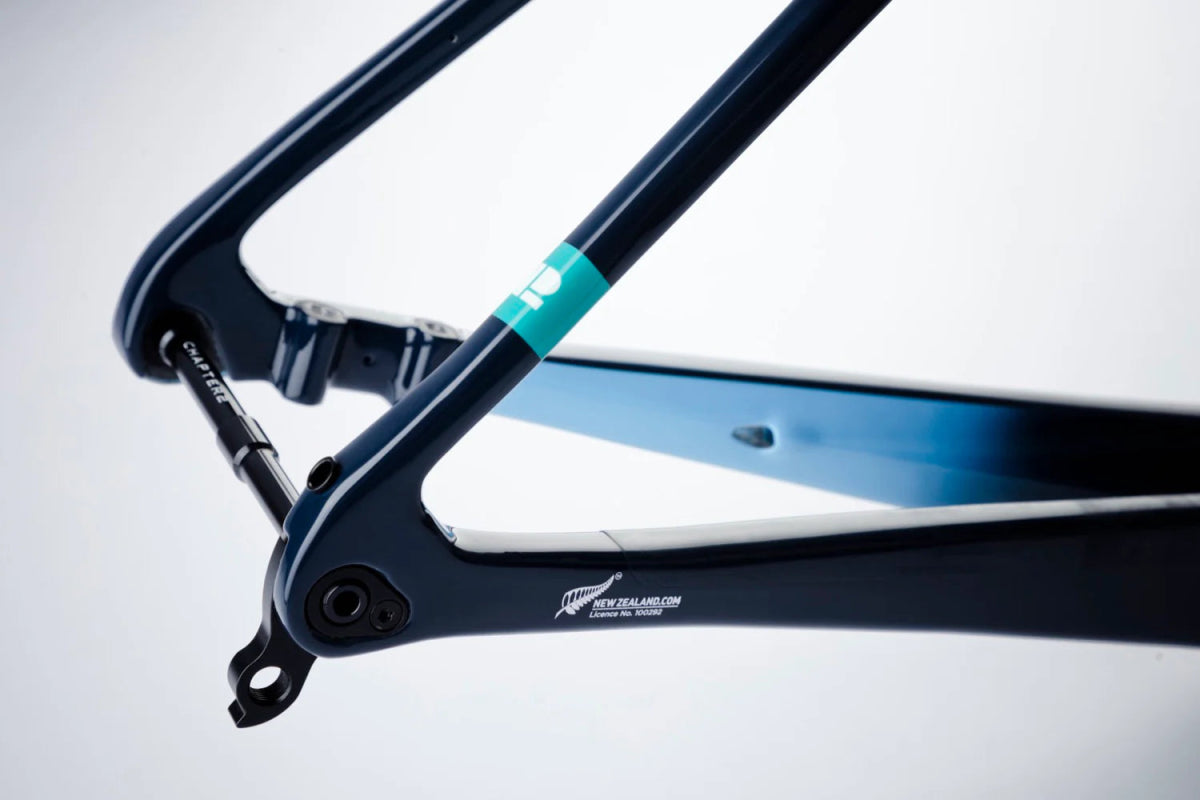

- Dropped Seatstays: Improved Compliance for Endurance Rides - Stiffer Rear Triangle
- T47 (86.5) BB: Service Friendly BB (Noise-free & Easy to Service) - Improved Stiffness
- Bike Fit Options - Can be used with MANA - Or with Standard Stem
- Disc Brakes Only: Improved Braking & Modulation
- Frameset Only: Bespoke & Personal
- Limited Edition: Exclusivity
Specifications
Specifications of Chapter 2 TOA Race Disc Brake Frameset
| Carbon | 100% Made in Japan by Toray |
| Frame 6 Sizes | XXS, XS, S, M, L & XL |
| Fork Rakes (2) | XXS, XS, S (53mm offset) and M, L, XL (43mm offset) |
| Frame Weight | 1,099 g (Disc) Size M +/- 3% |
| Fork Weight | 19 g (Disc) Uncut +/- 3% |
| Seatpost Weight | 135 g Size M +/- 3% |
| Handlebar/Stem (MANA) | 395 g (100-420mm) +/- 3% |
| Headset | 1.5” C2 Integrated System |
| Gear Shifting Type | Mechanical & Electric Shifting |
| Electronic Shifting | Shimano® Di2, SRAM® eTAP & Campagnolo® EPS compatible |
| Battery Type | Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible |
| Tire Clearance | 30 mm (ISO) & 32 mm Practical |
| Brake Type | Disc Only |
| Bottom Bracket | Internal T47 |
| Thru-Axle | Flat Mount FR 12x100 mm, RR 12x142 mm, E-Thru M12x1.5 mm |
| Safety Standard | EN ISO 4210:2014 |
| UCI Accreditation | UCI Approved |
| Torque Specifications | |
| Saddle Rail | 6Nm |
| Seatclamp | 8-10Nm |
| Front Derailleur Hanger | 3-4Nm |
| Rear Derailleur Hanger | 2-3Nm |
| BB Cable Guide Cover | 1-2Nm |
| Water Bottle Cage Bolts | 2-3Nm |
| Thru-Axle | 10Nm |
| MANA | 6Nm |
Geometry
Geometry of Chapter 2 TOA Race Disc Brake Frameset
| TOA | XS | S | M | L | XL |
| Stack | 502 | 527 | 552 | 577 | 602 |
| Reach | 363 | 372 | 381 |
390 | 399 |
| Top Tube | 509 | 525 | 542 | 558 | 575 |
| Head Tube | 95 | 115 | 135 | 160 | 186 |
| Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 |
| Head Tube Angle (°) | 70 | 72 | 73 | 73 | 73 |
| Seat Tube | 458 | 483 | 508 | 533 | 560 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Rear Centre | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 973 | 975 | 973 | 986 | 1002 |
| Front Centre | 576 | 578 | 576 | 589 | 605 |
| Fork Offset | 53 | 53 | 43 | 43 | 43 |
| Seatpost Setback | 10 | 10 | 10 | 10 | 10 |
| Stem | NA | NA | NA | NA | NA |
| Stand Over | 735 | 760 | 786 | 811 | 837 |
| Rider Height | 160-170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size | 32 | 32 | 32 | 32 | 32 |
| Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 |
