117012FSZZZ27_M

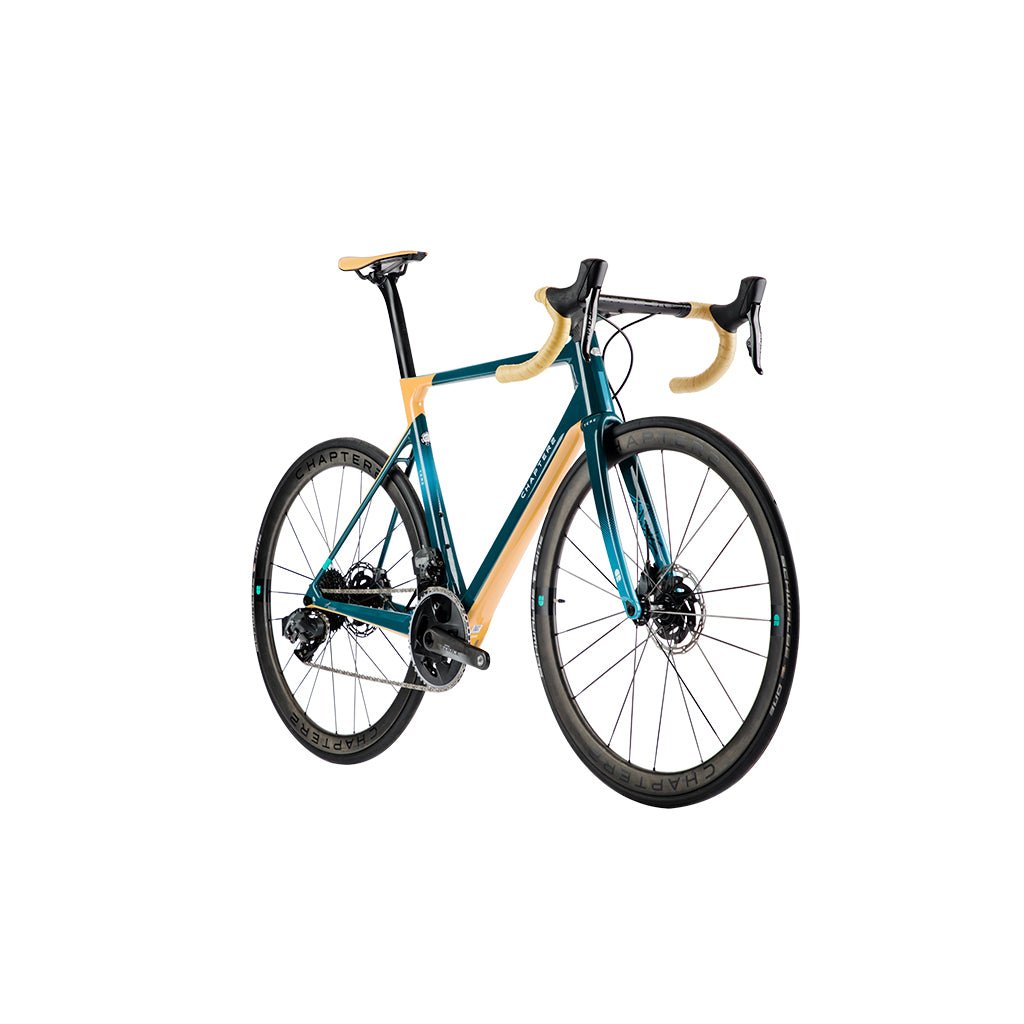

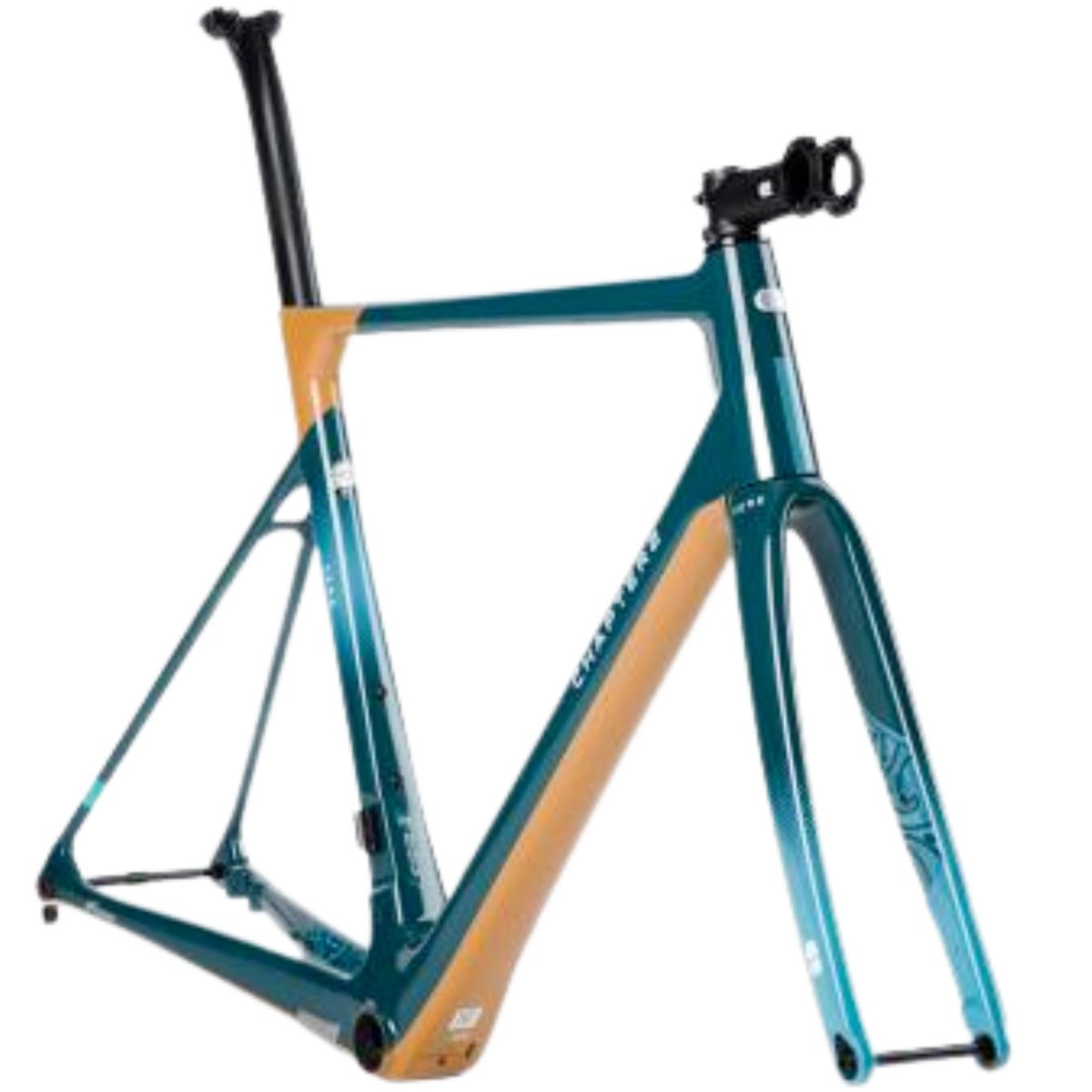

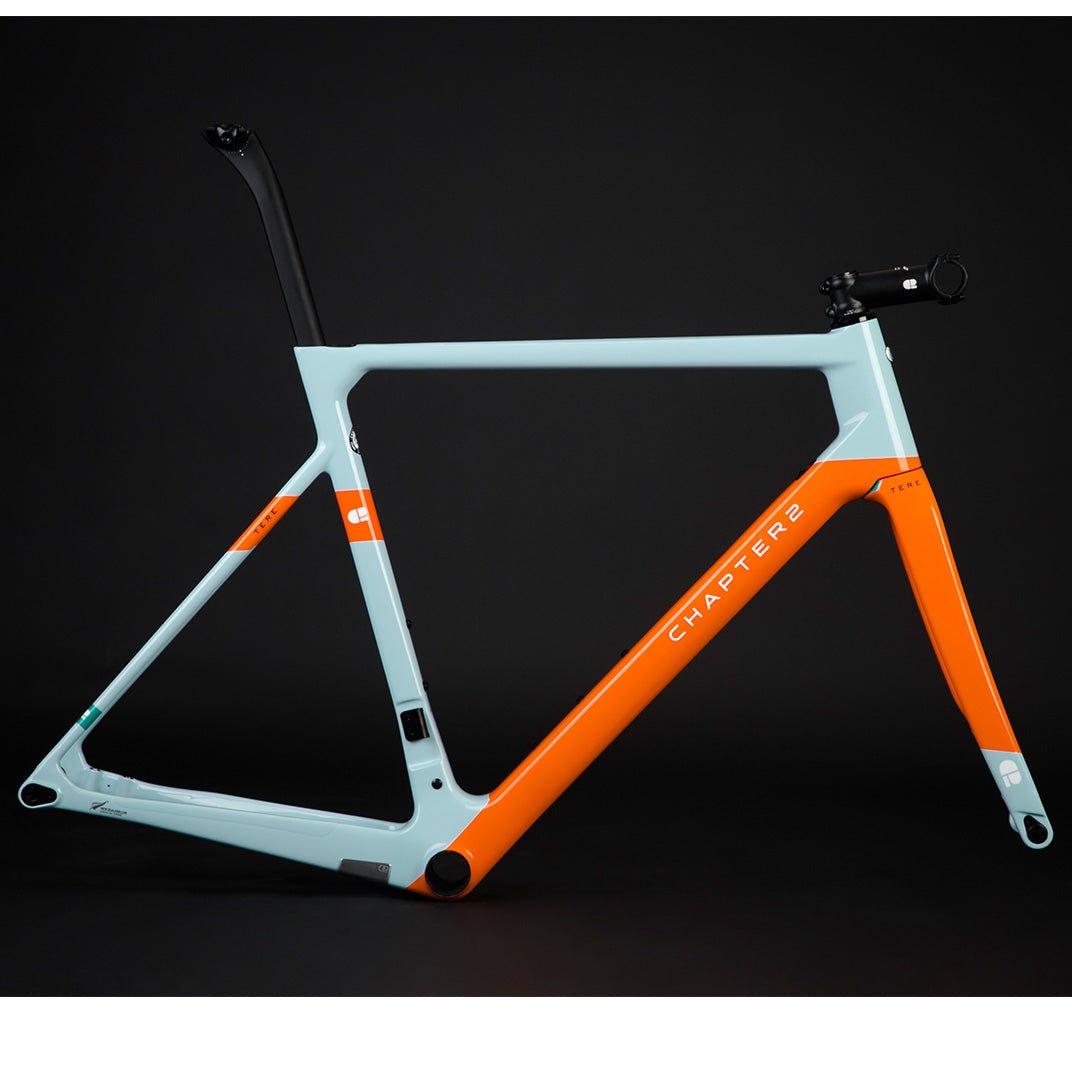

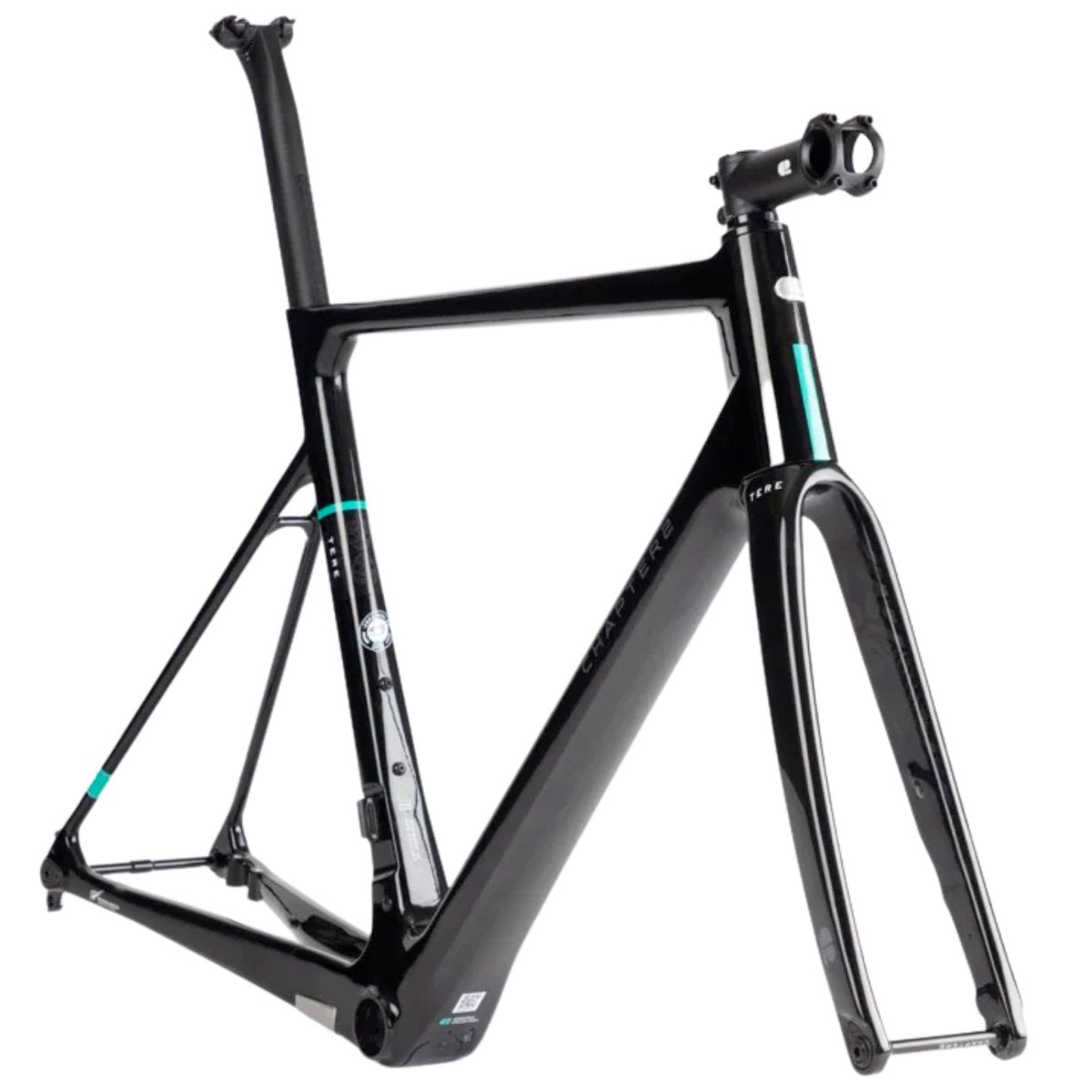

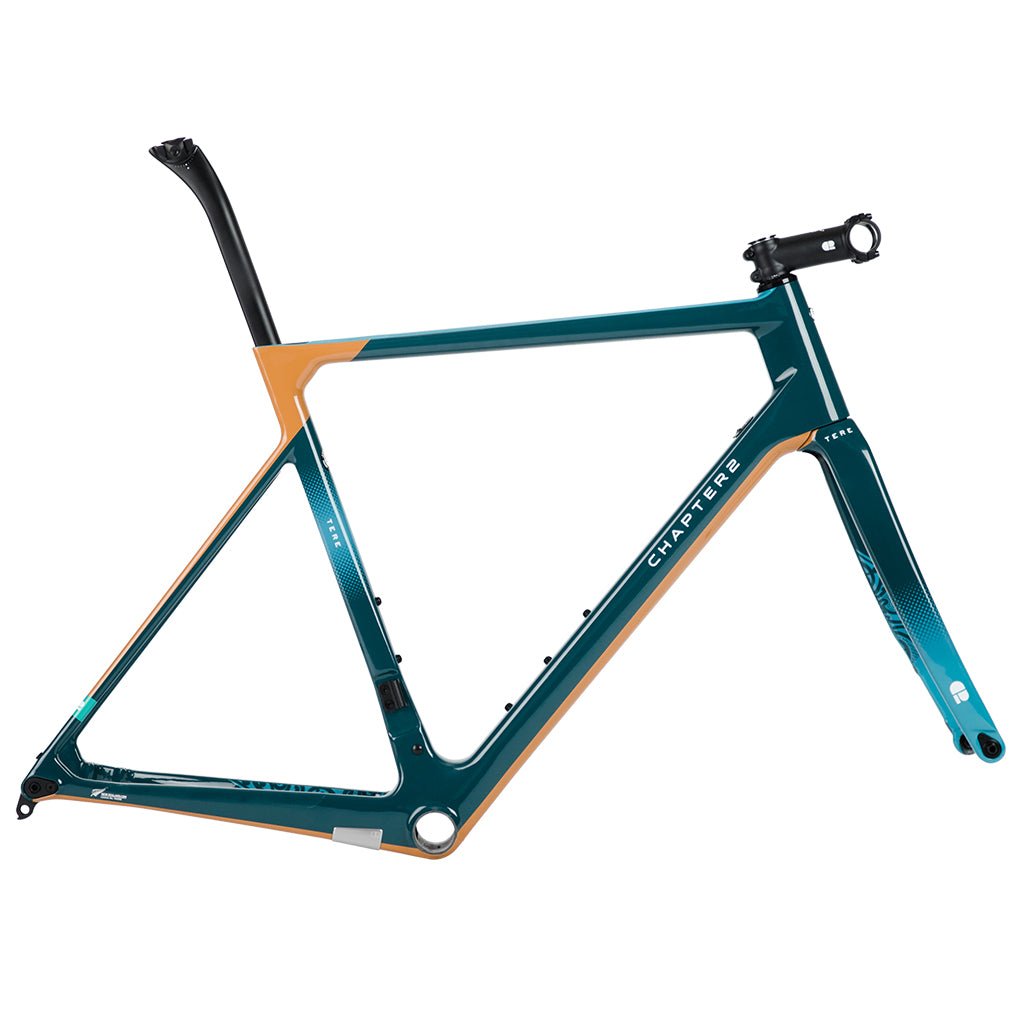

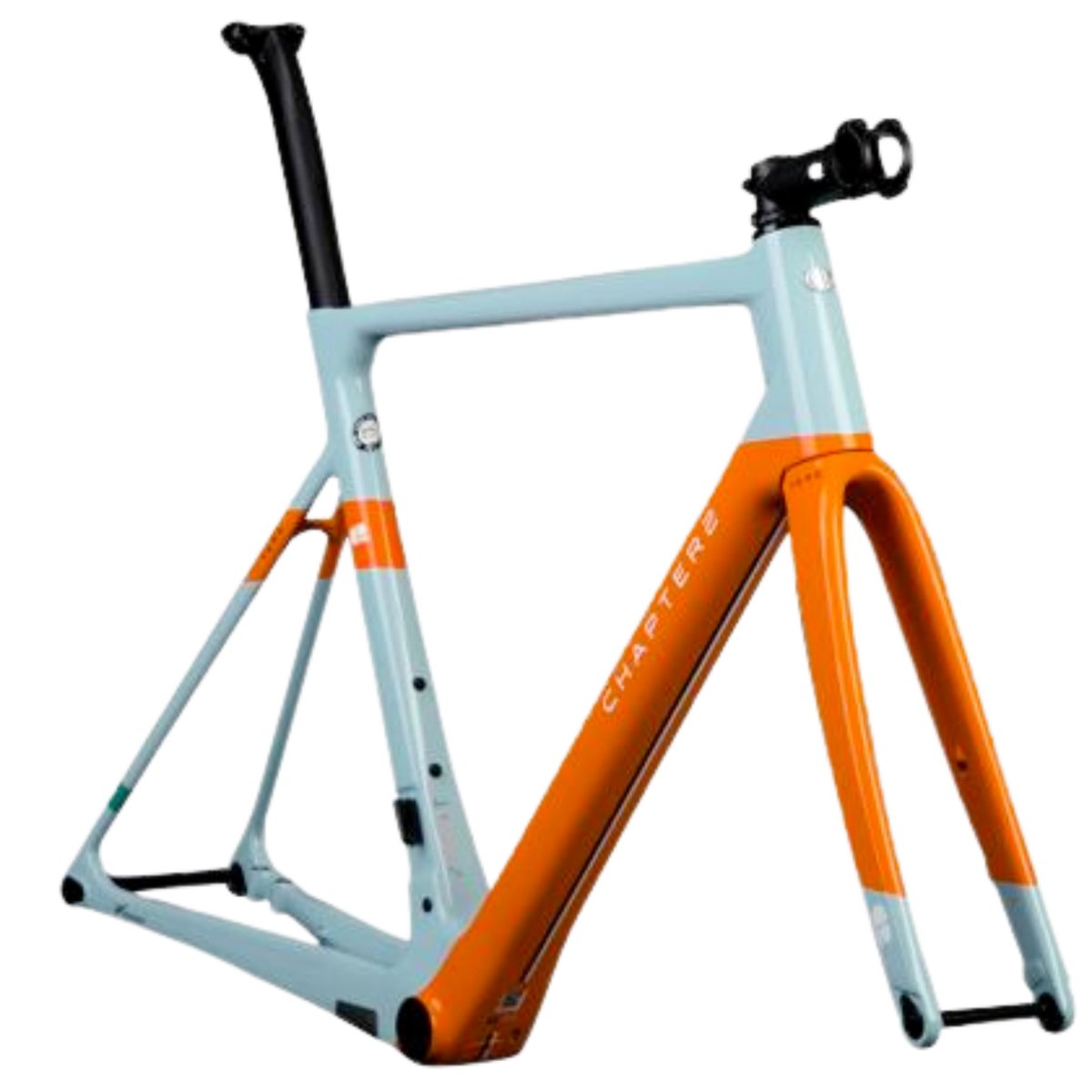

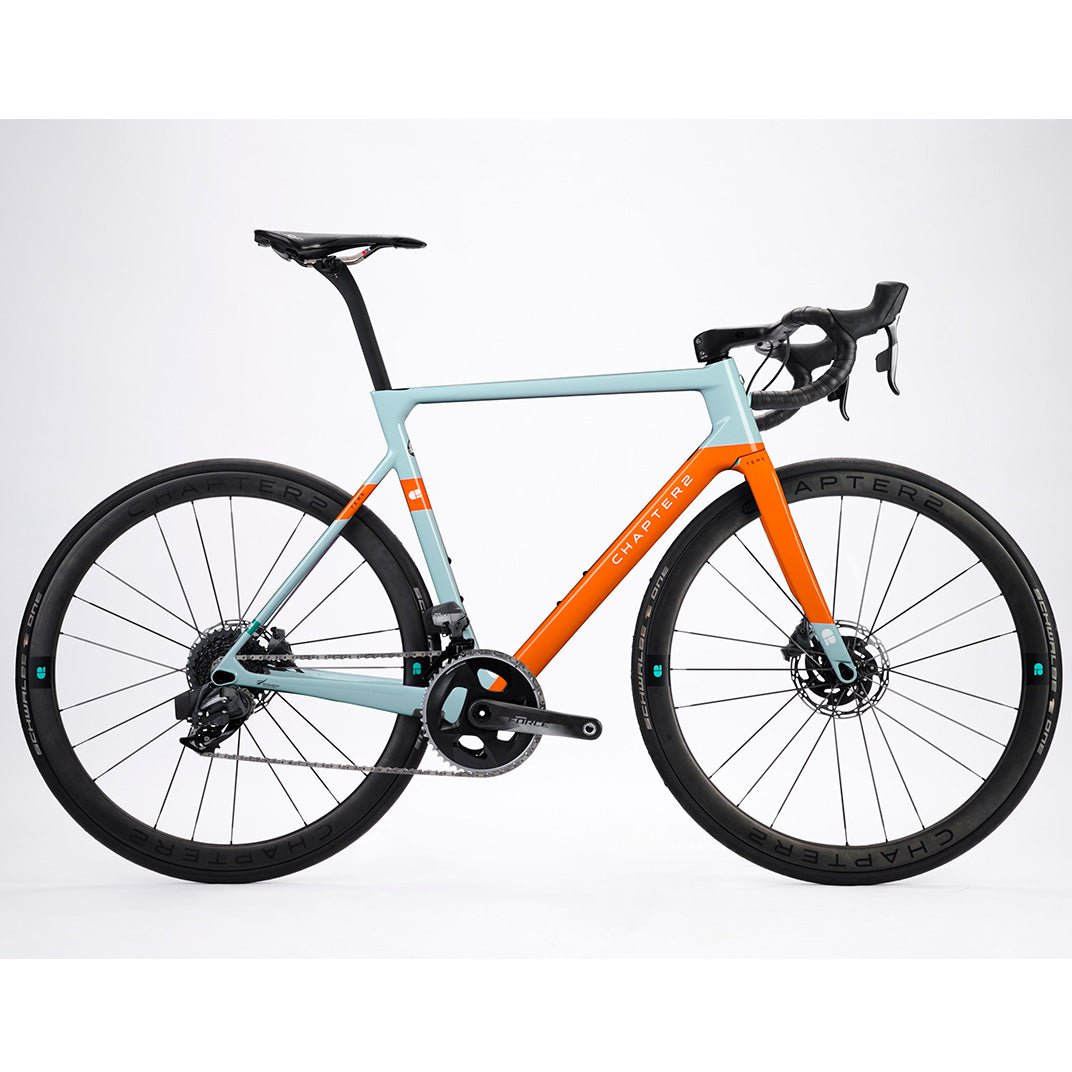

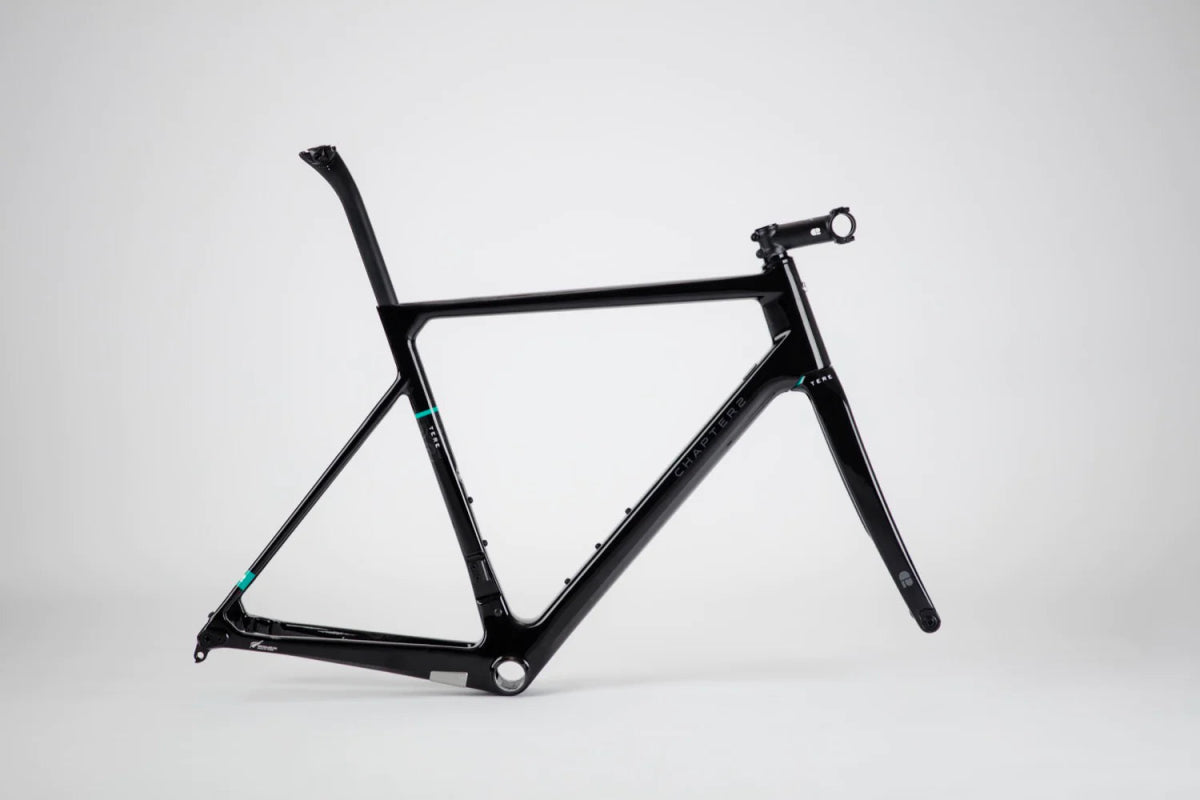

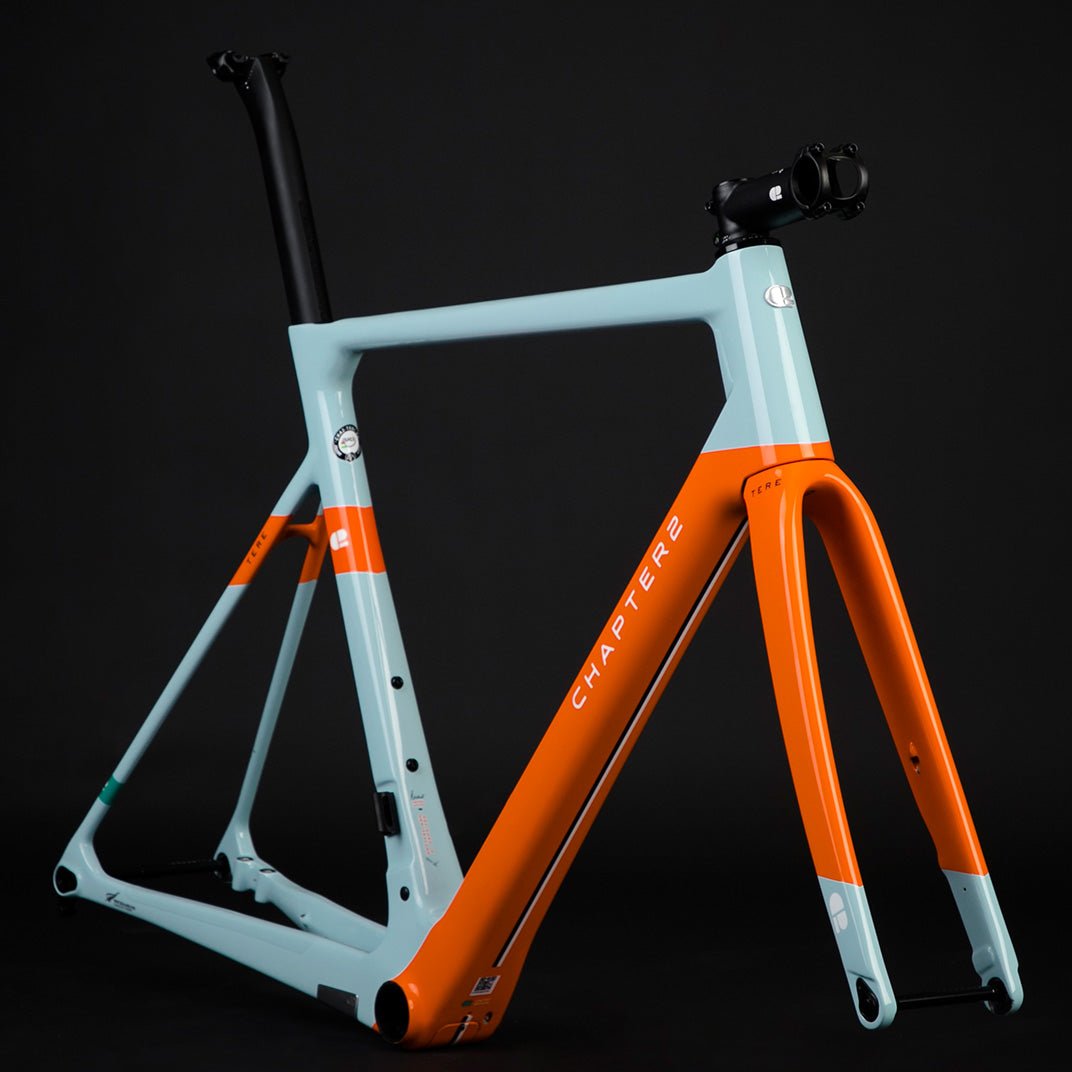

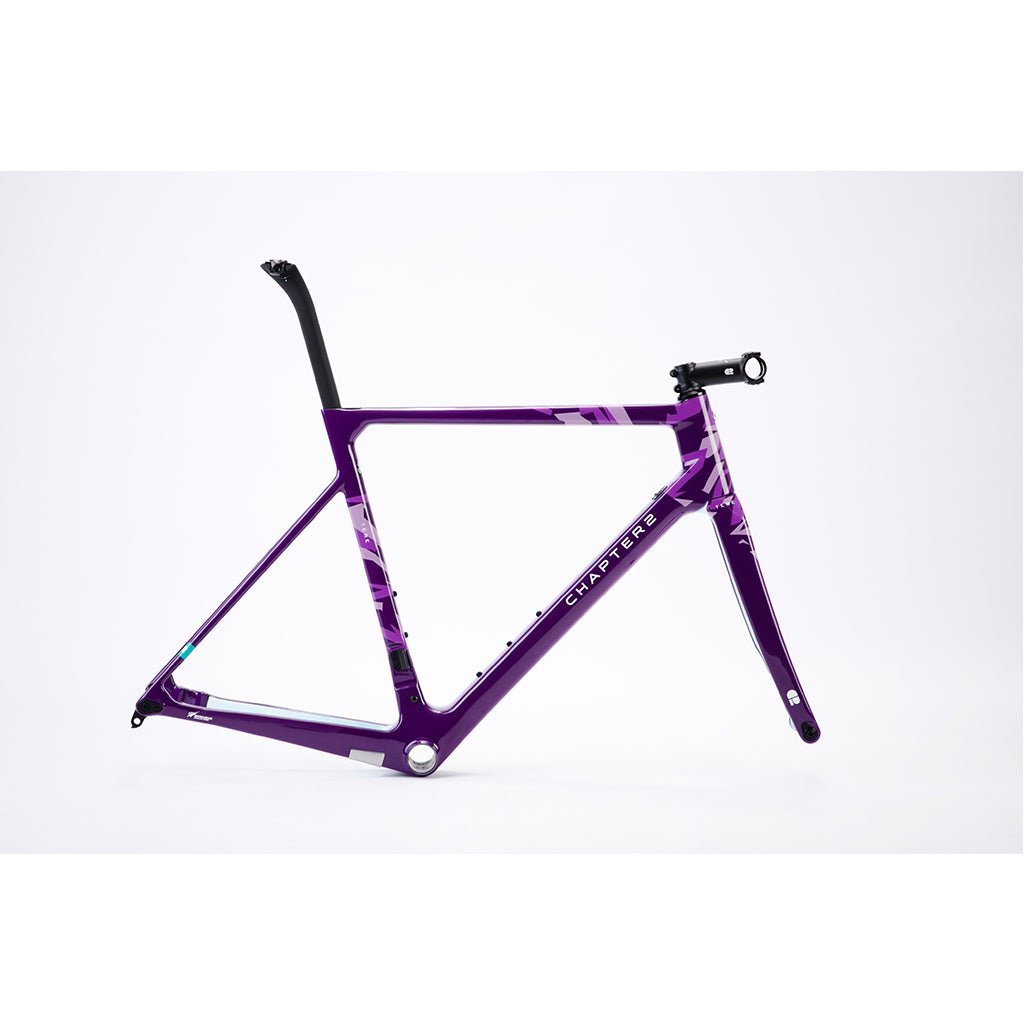

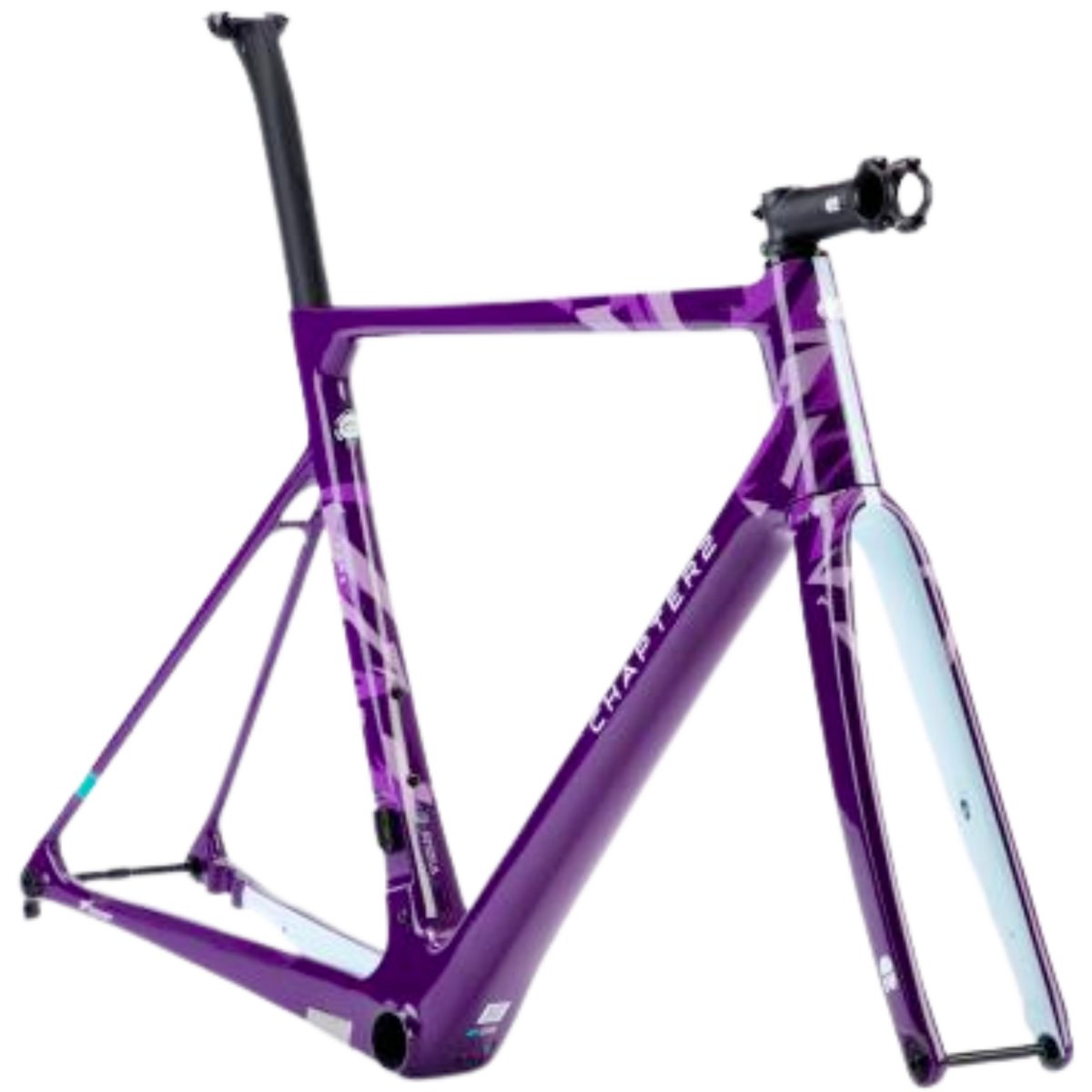

The Chapter 2 TERE All-Road Disc Brake Frameset is the epitome of a Performance All-Road frame, designed to exceed expectations in all conditions. "Tere," meaning "be quick, swift, and fast" in Maori, perfectly encapsulates the essence of this frame, delivering on its promise of speed and agility on every occasion.
Quintessential All-Road Performance: Positioned in the All-Road category, the TERE is engineered to cater to both the weekend warrior and seasoned pro. Its unique silhouette is a result of careful engineering, ensuring an ideal stiffness-to-weight ratio for unparalleled performance. Whether you're tackling a local crit, conquering epic mountain climbs, or enjoying a leisurely coffee shop ride, the TERE excels in all scenarios.
Swift and Fast Design Philosophy: True to its name, the TERE embodies the design philosophy of being swift and fast. The frame's characteristics make it a versatile choice for riders who demand high performance in a variety of riding conditions. From sunrise to sunset, the TERE delivers an exceptional riding experience.

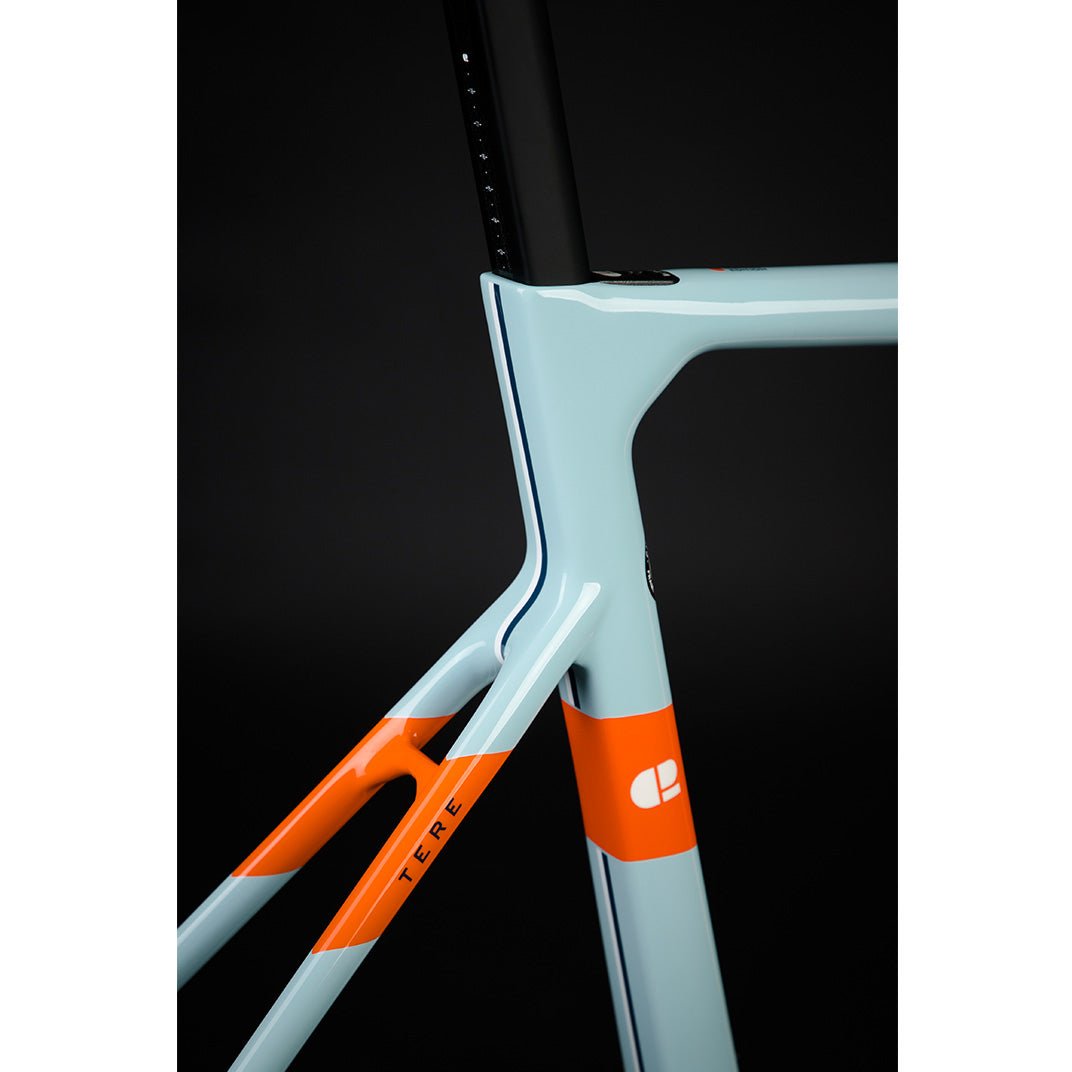

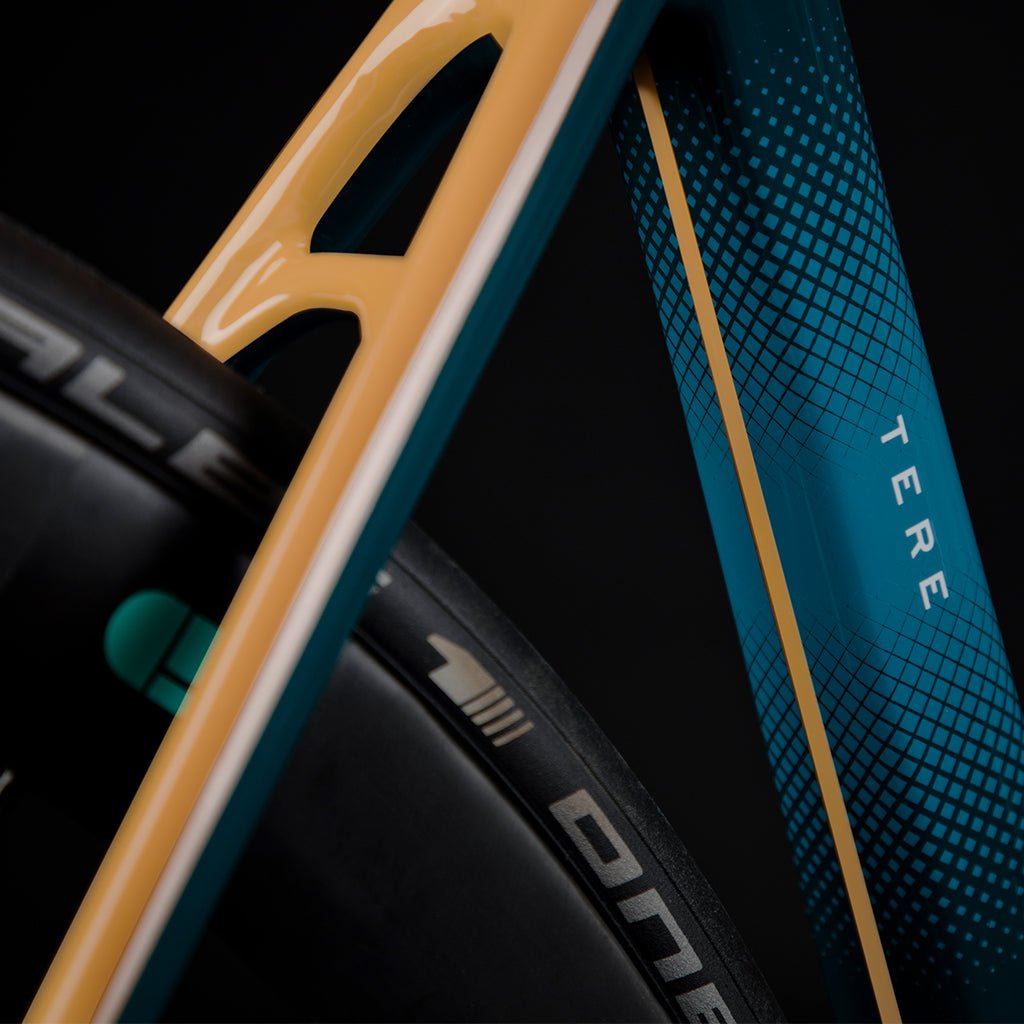

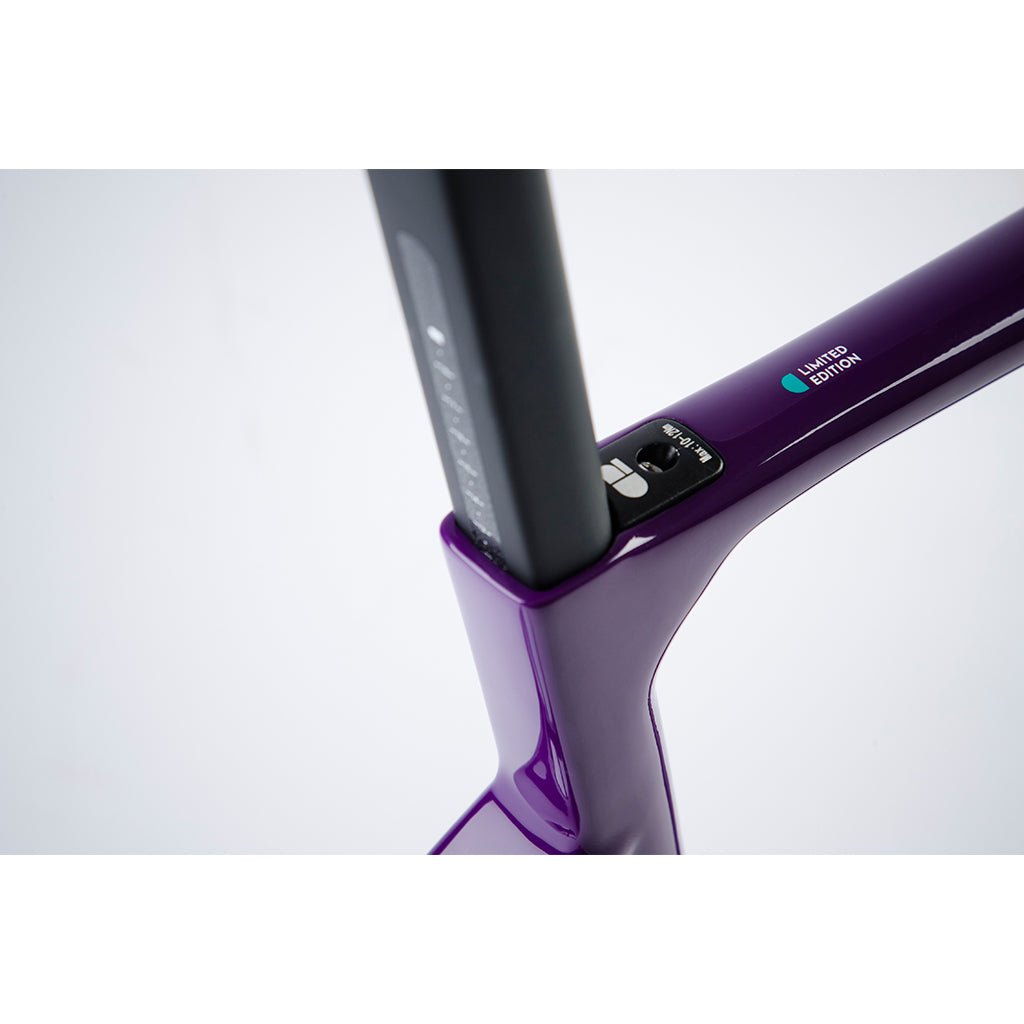

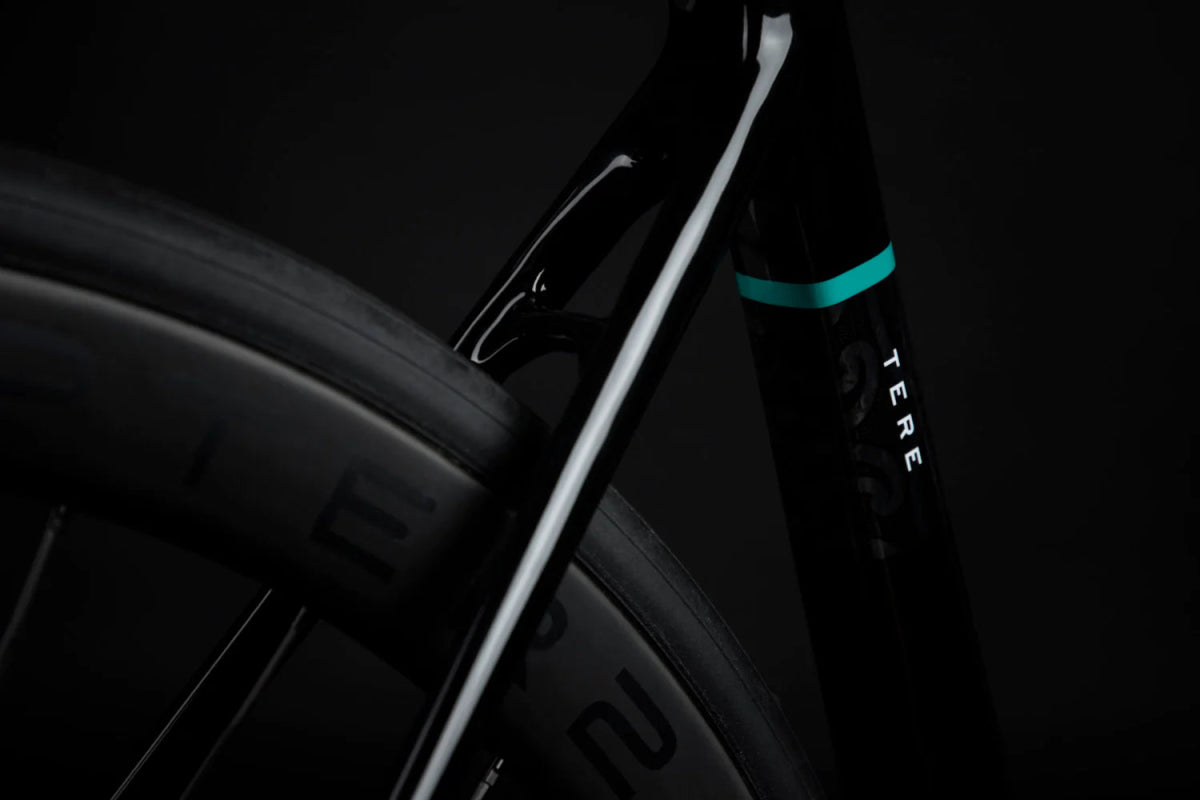

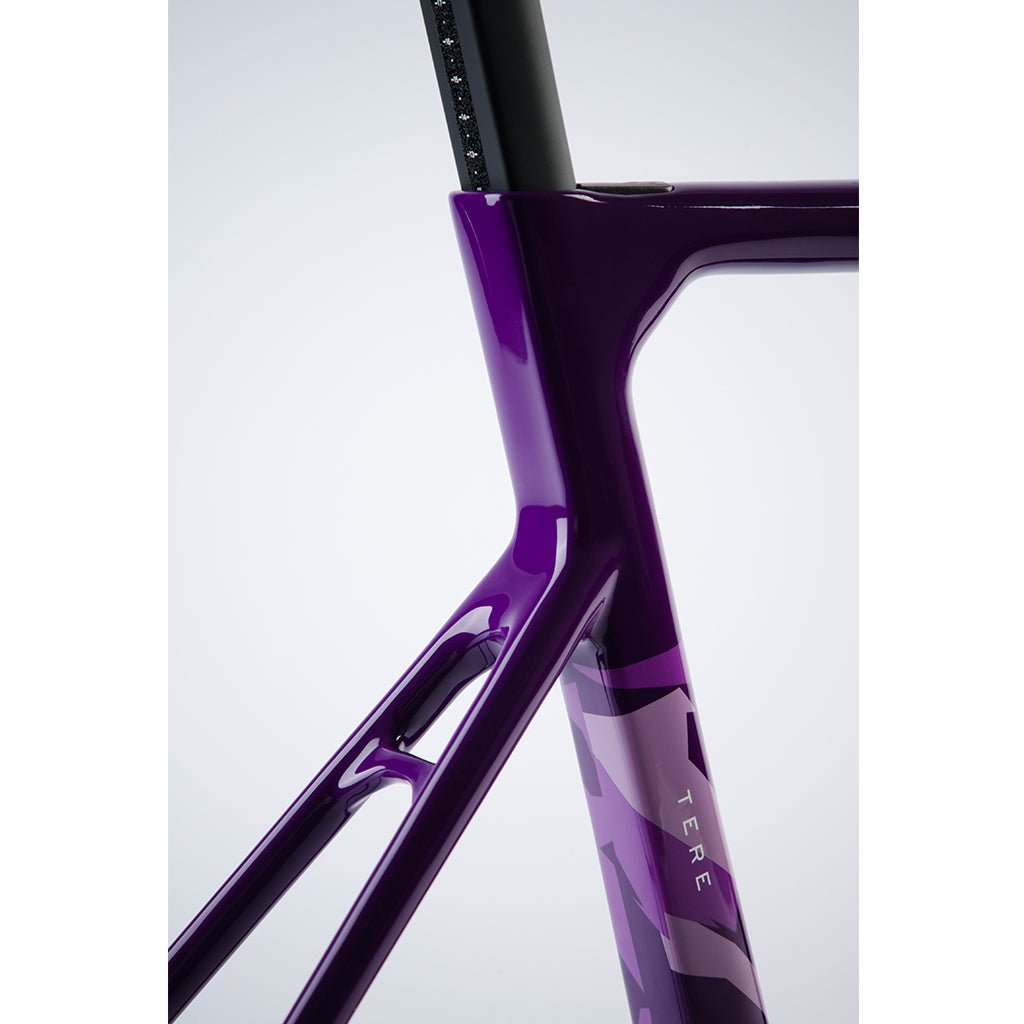

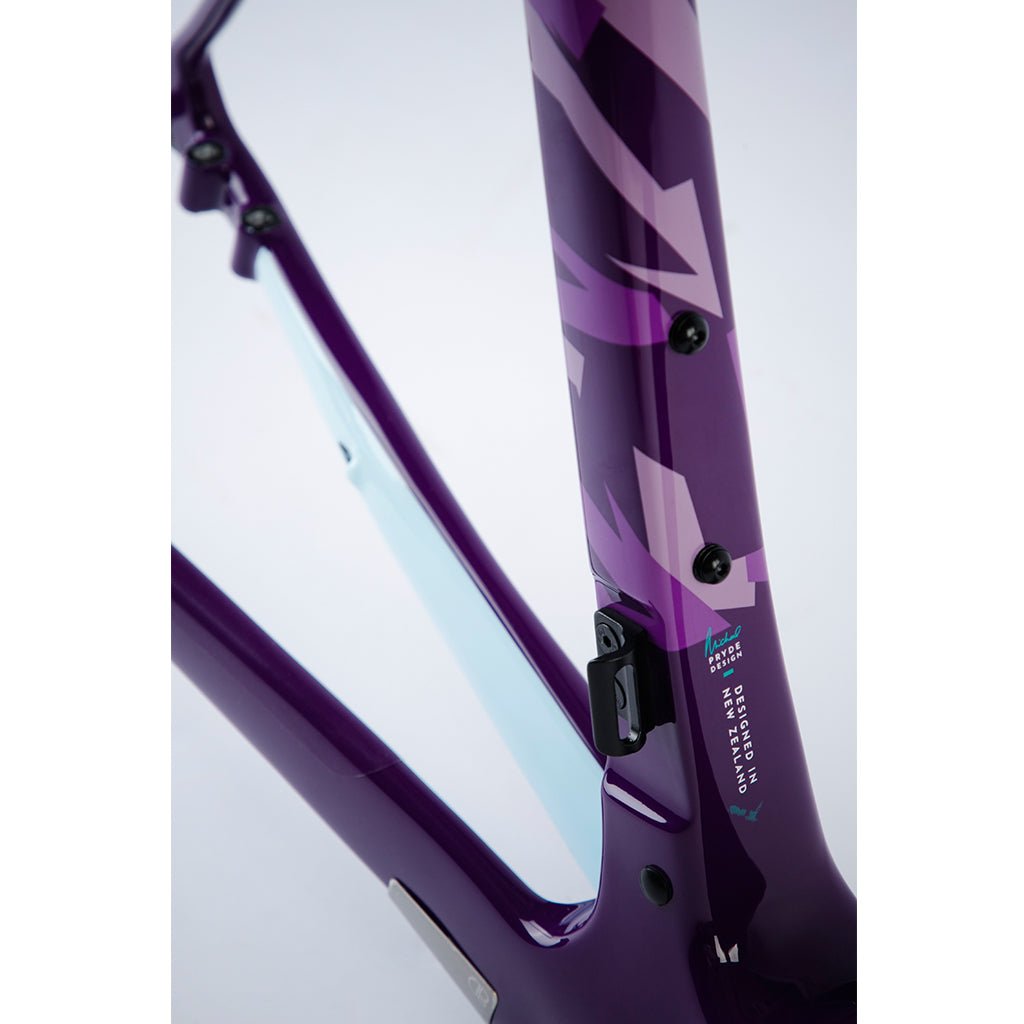

Vibration Dampening for All-Day Comfort: Designed with all-day riding in mind, the TERE features vibration dampening Seatstays and Seatpost. This thoughtful design, combined with a more upright stance, ensures that you can push your limits and give your best effort throughout the entire day.
Available in Rim and Disc Versions: Tailor your ride to your preferences with the TERE, available in both Rim and Disc versions. Whether you prefer the classic feel of rim brakes or the enhanced modulation of disc brakes, the TERE provides options to match your riding style.

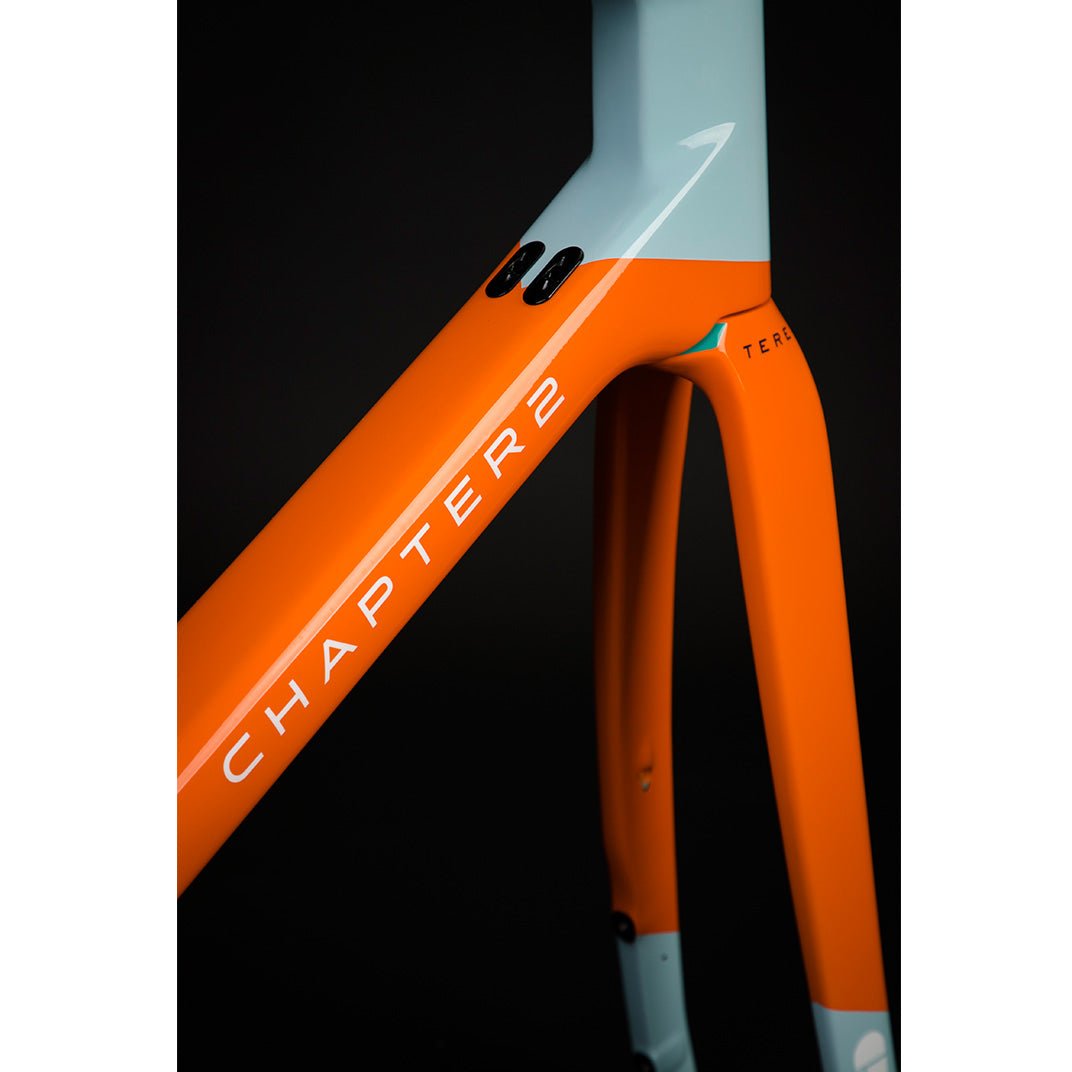

Aerodynamic Excellence Tested in the Wind Tunnel: Subtle yet effective Kamm-Tail profiles on the TERE have been rigorously tested at Auckland University's Wind Tunnel. This aerodynamic excellence, combined with the use of high-tensile directional carbon fiber in the Headtube, ensures that the TERE handles with precision and confidence in any tight corner.
Versatility Redefined: The Chapter 2 TERE All-Road Disc Brake Frameset redefines versatility, offering a frame that excels in every riding scenario. Experience the swift and fast design philosophy embodied in the TERE, and elevate your riding experience to new heights.
Carbon | Toray® T700, T800 & 3K Directional Carbon |
Frame 5 Sizes | XS, S, M, L & XL |
Fork Rakes (2) | XS, S (53mm offset) and M, L, XL (43mm offset) |
Frame Weight | 950 g (Rim) & 1015 g (Disc) Size M +/- 3% |
Fork Weight | 390 g (Rim) & 425 g (Disc) Uncut +/- 3% |
Seatpost Weight | 98 g +/- 3% |

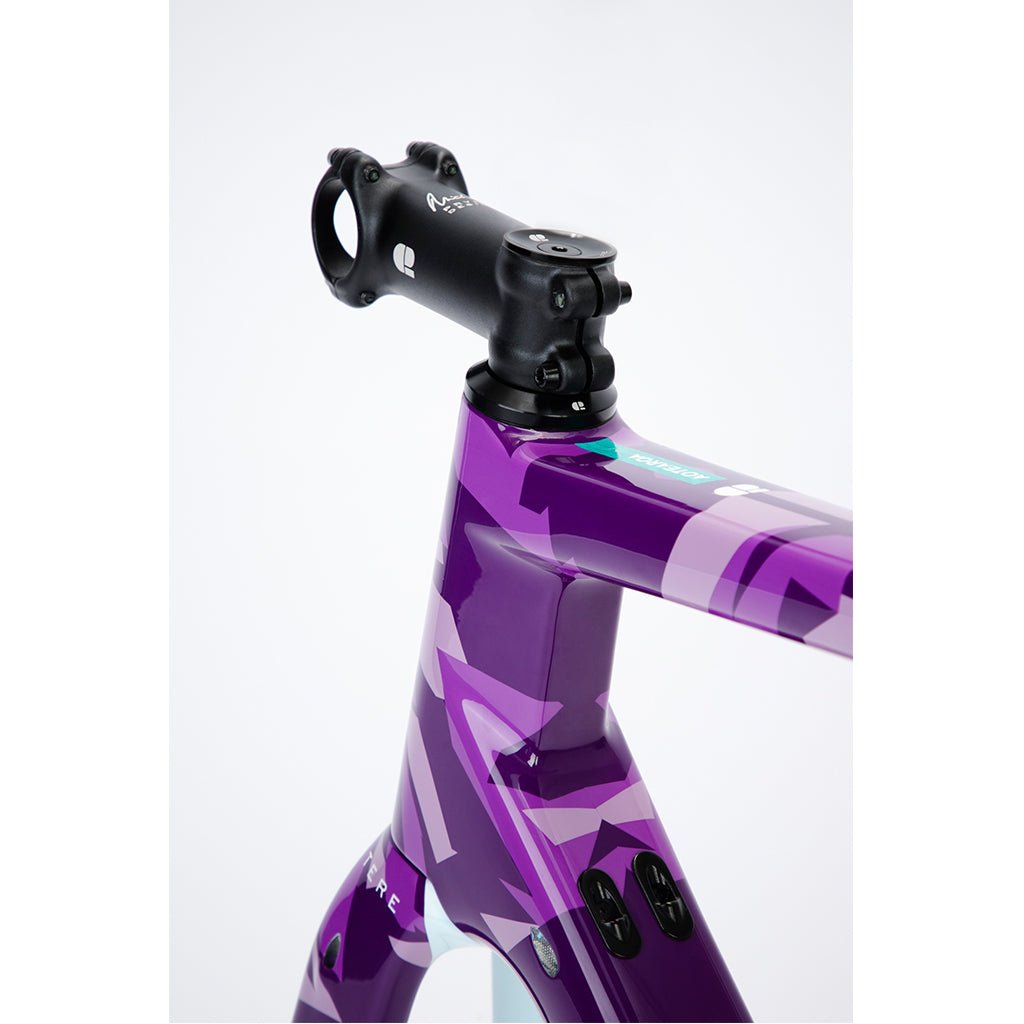

Handlebar/Stem (MANA) | 80 mm, 90 mm, 100 mm, 110 mm and 120 mm (+/-7°) |
Headset | Chapter2 Tapered 1-1/8” – 1.5” |
Bottom Bracket | Press Fit BB86.5 |
Electronic Shifting | Shimano® Di2, SRAM® eTAP & Campagnolo® EPS compatible |
Battery Type | Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible |
Tire Clearance | 25 mm (Rim) & 28 mm (Disc) |
Saddle Rail | 7 mm Round & 7x9 mm Oval |
Disc Thru-Axle Spec | Flat Mount, FR 12x100 mm, RR 12x142 mm, E-Thru M12x1.5 mm |
Safety Standard | EN ISO 4210:2014 |
UCI Accreditation | UCI Approved |
Torque Specifications |
|
Saddle Rail | 12Nm |
Seatclamp | 10-12Nm |
Stem (Steerer) | 6Nm |
Stem (Handlebar) | 6Nm |
Front Derailleur Hanger | 3Nm |
Rear Derailleur Hanger | 2Nm |
BB Cable Guide Cover | 1Nm |
Water Bottle Cage Bolts | 3Nm |
Size | XS | S | M | L | XL |
Stack | 505 |
530 |
555 |
580 |
605 |
Reach | 360 |
368 |
378 |
387 |
396 |
Top Tube | 514 |
531 |
548 |
564 |
581 |
Head Tube | 113 |
133 |
153 |
178 |
204 |
Seat Tube Angle (°) | 73 | 73 | 73 | 73 | 73 |
Head Tube Angle (°) | 70.5 | 72.2 | 73.1 | 73.5 | 73.5 |
Seat Tube | 495 |
515 |
535 |
555 |
575 |
BB Drop | 68 |
68 |
68 |
68 |
68 |
Rear Centre | 408 | 408 | 408 | 408 | 408 |
Wheelbase | 970 |
975 |
973 |
985 |
1002 |
Front Centre | 575 |
575 |
575 |
587 |
604 |
Fork Offset | 53 | 53 | 43 | 43 | 43 |
Seatpost Setback | 20 |
20 |
20 |
20 |
20 |
Stem | 80 |
90 |
100 |
110 |
120 |
Standover | 756 |
778 | 800 | 823 |
846 |
Rider Height | <170 |
165-175 | 170-180 | 175-185 | >180 |
Max. Tire Size | 28 |
28 |
28 |
28 |
28 |
Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 |
