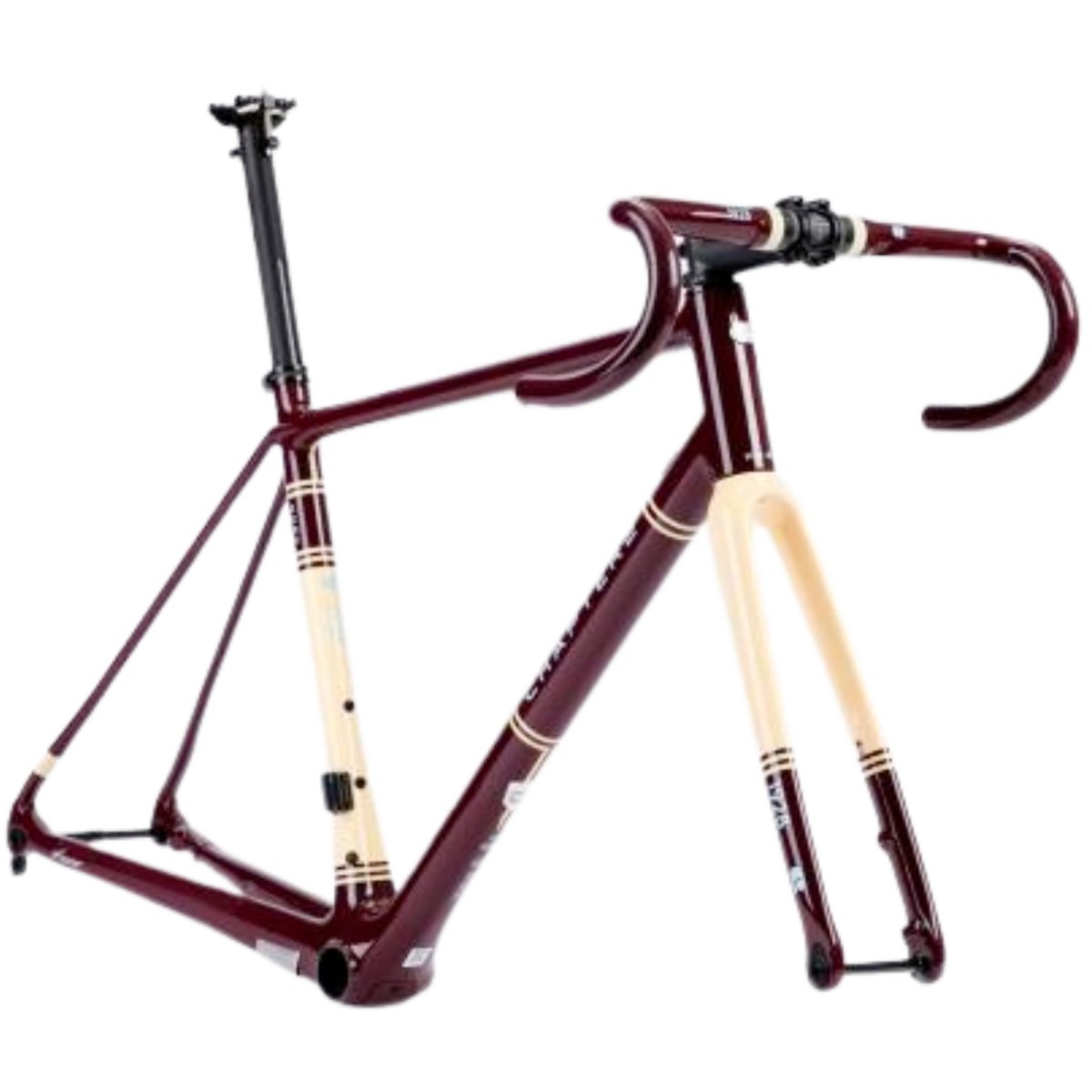

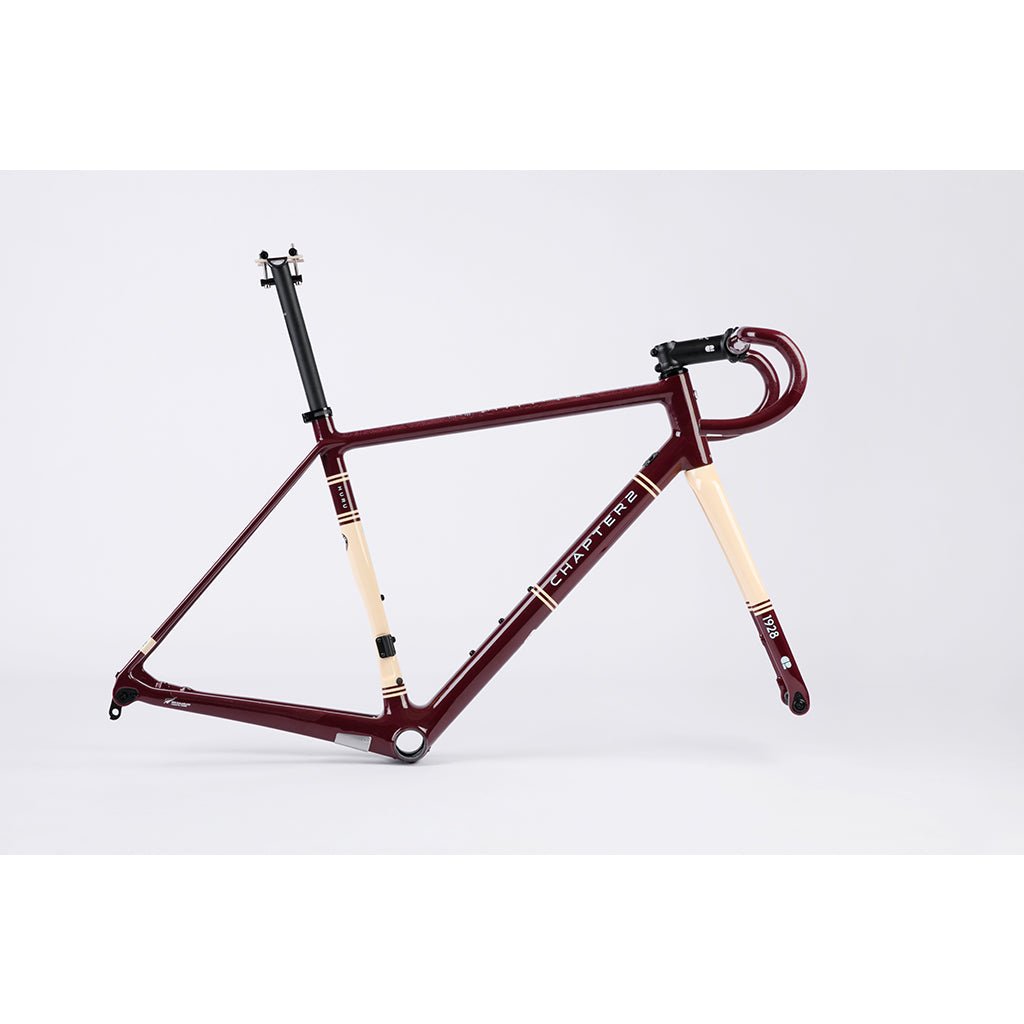

Chapter 2 Huru Disc Brake Frameset
118062FSZZZ06_M
Frequently Bought Together

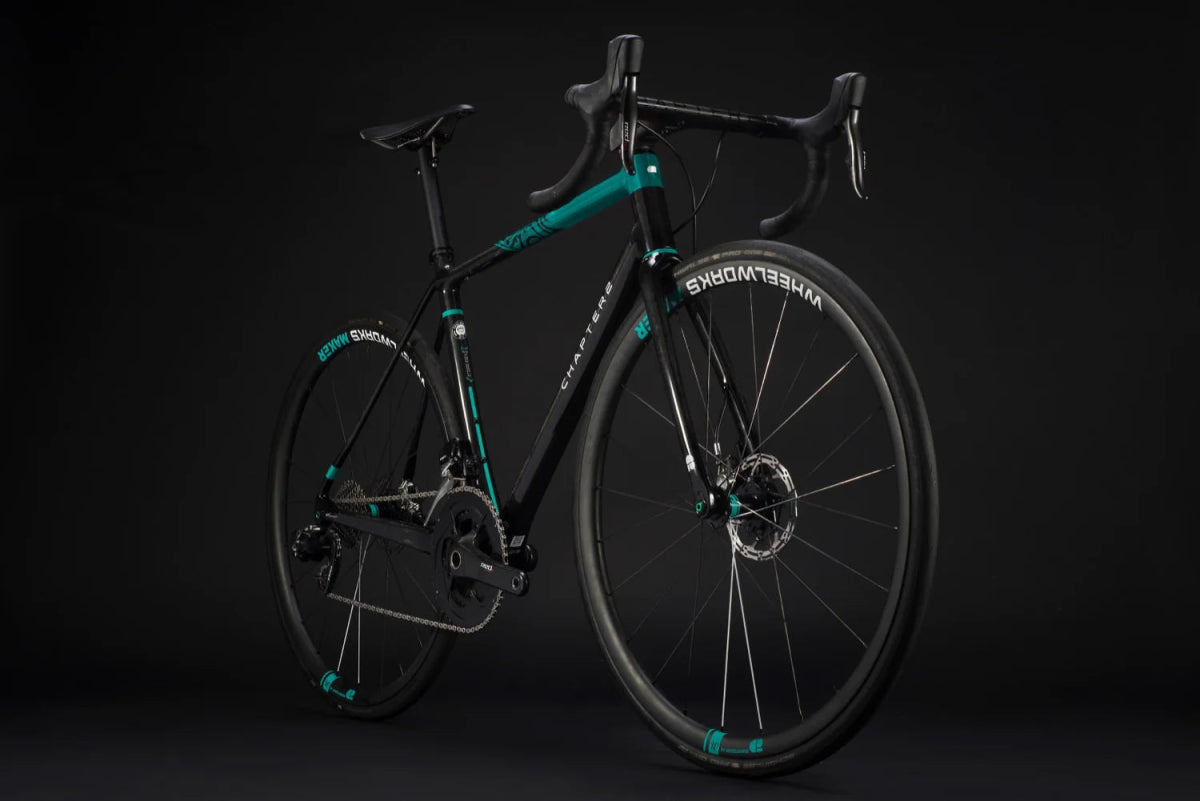

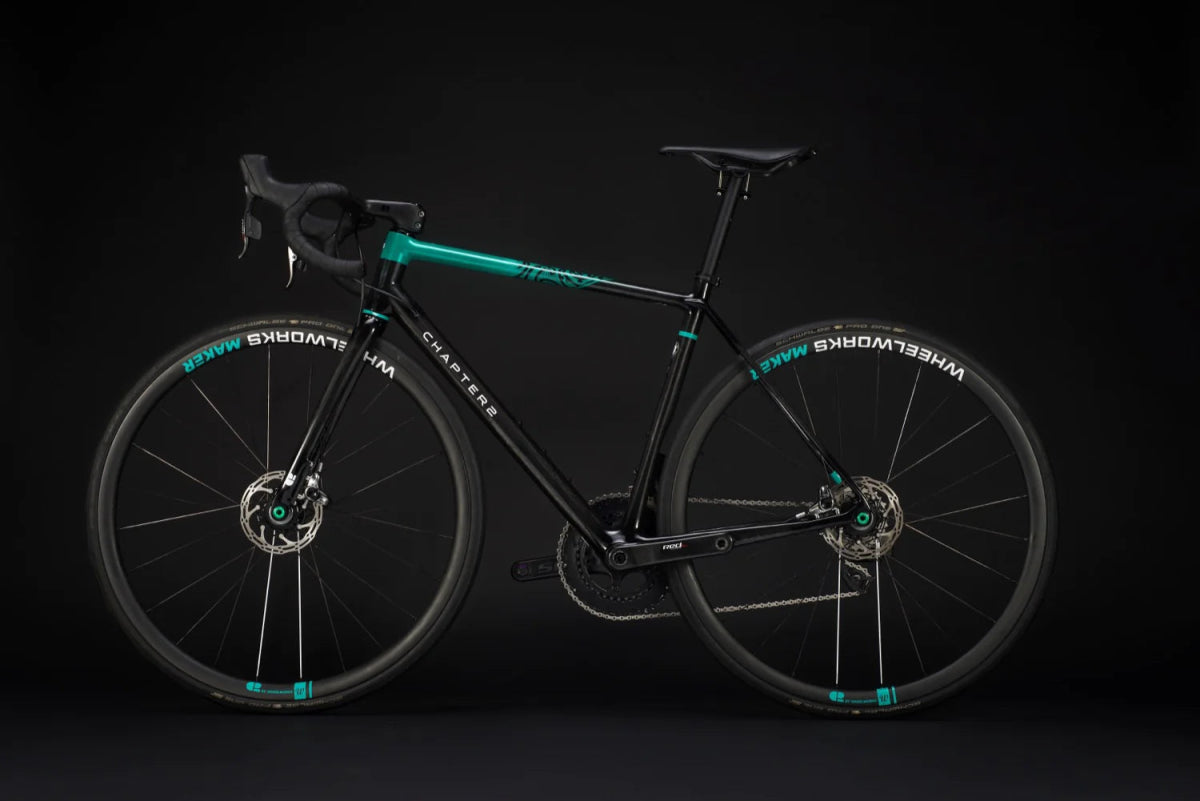

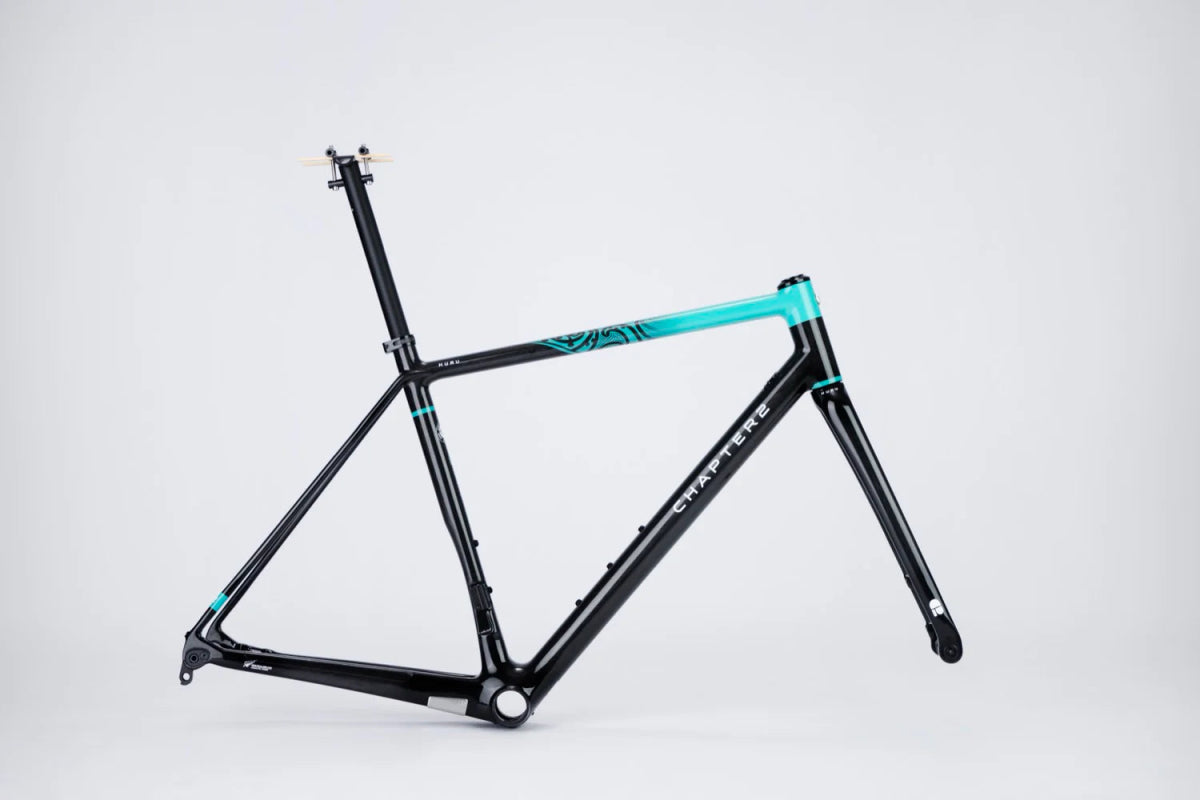

Chapter 2 Huru Disc Brake Frameset: Feather-Light Performance for Climbing Enthusiasts
Experience the joy of being in the zone and conquering challenging gradients with the Chapter 2 Huru Disc Brake Frameset. "Huru," meaning "feather" in Maori, perfectly encapsulates the essence of this high-performance lightweight frame. Its classic contours cleverly conceal the engineering brilliance required to create a frame that excels in both climbing and descending, providing the ultimate tool for riders who seek the thrill of the ascent and the confidence in the descent.
Climbing Prowess, Descending Confidence: As the saying goes, "what goes up must come down." The Huru is designed to excel in both aspects of the ride. Enjoy the climbing prowess of this feather-light frame, and descend confidently on a platform that offers cornering dexterity matching its exceptional climbing capabilities.

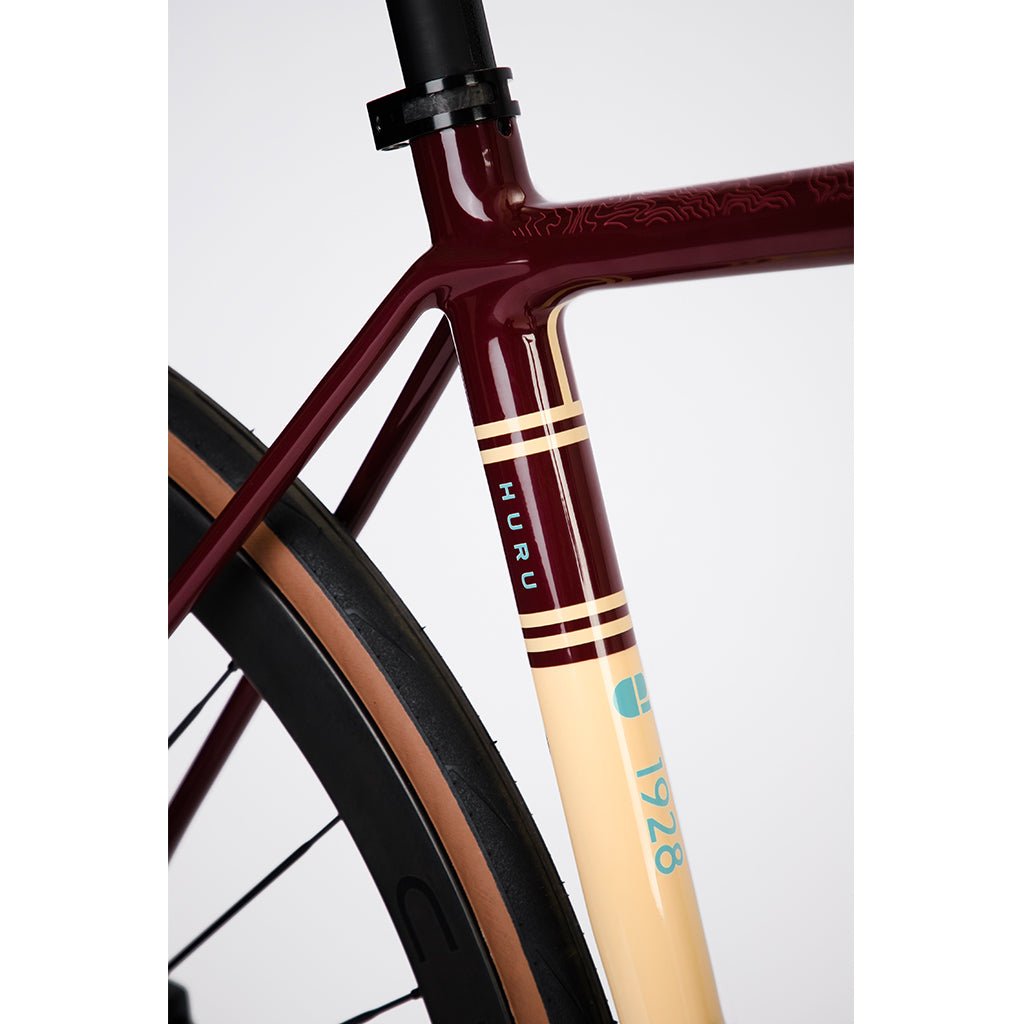

Pencil-Thin Seatstays for Vibration Dampening: The Huru features pencil-thin Seatstays that elegantly dampen road vibrations, ensuring a smooth and comfortable ride even on challenging surfaces. This thoughtful design is seamlessly merged into the Seattube and Toptube junction, providing both form and function.

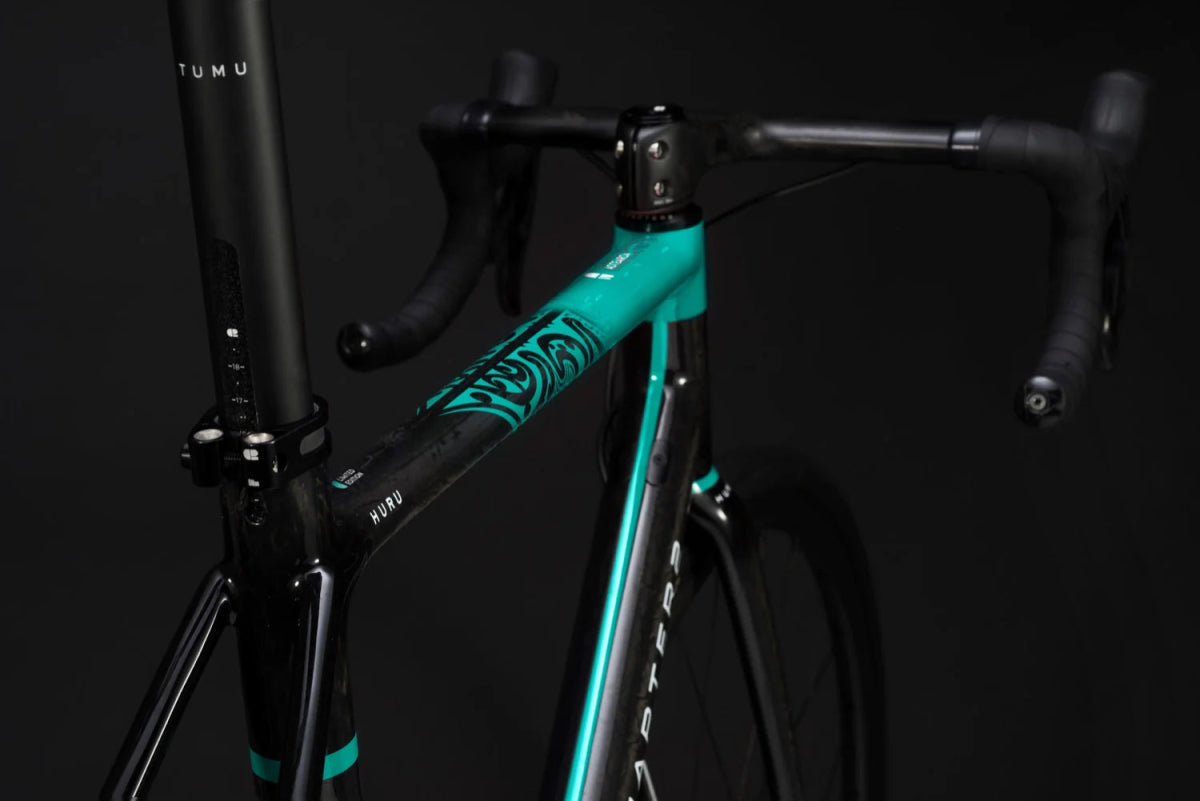

Lightweight TUMU 27.2mm Seatpost: Supporting the Huru's design is the lightweight TUMU 27.2mm seatpost, enhancing the overall riding experience with a focus on weight savings and performance. This carefully selected component contributes to the Huru's feather-light feel without compromising on strength and durability.
Rim (Direct Mount) and Disc Versions: Tailor your ride to your preferences with the Chapter 2 Huru, available in both Rim (Direct Mount) and Disc versions. Whether you prefer the classic feel of rim brakes or the powerful modulation of disc brakes, the Huru provides options to suit your riding style.
Precision Craftsmanship with Pre-Preg Carbon Fibre: Crafted with precision and care, the Huru incorporates over 300 unique pieces of Pre-Preg Carbon Fibre. Each frame is carefully laid into stainless steel molds by hand, showcasing the meticulous craftsmanship that goes into creating the ultimate alpine machine.
Unleash the Alpine Machine: The Chapter 2 Huru Disc Brake Frameset isn't just a frame; it's an alpine machine that invites you to unleash your passion for climbing and descending. With feather-light performance and precision engineering, the Huru is the perfect companion for riders who seek the thrill of the ascent and the joy of a confident descent.
Features
Features of Chapter 2 Huru Disc Brake Frameset
- Lightweight Chassis - Toray T1000 & T800 Carbon - Improved Climbing Performance
- Lightweight Seatpost - 219 g; Uncut - 27.2 mm Round Seatpost
- High Modulas Carbon (Headtube): Increased Cornering Performance
- High Modulas Carbon (BB): Increased Power Transfer
- Engineered Compliance - Vibration Dampening Seat Stays - Rim & Disc Brake Options
- Stiff Chainstay - Increased Power Transfer - Improved Climbing Ability
- MANA Bar Compatible - Compatible with MANA Bar
- Engineered Fork Performance - Vibration Dampening Fork - Lightweight Performance 389 g (uncut)
- Frameset Only: Bespoke & Personal

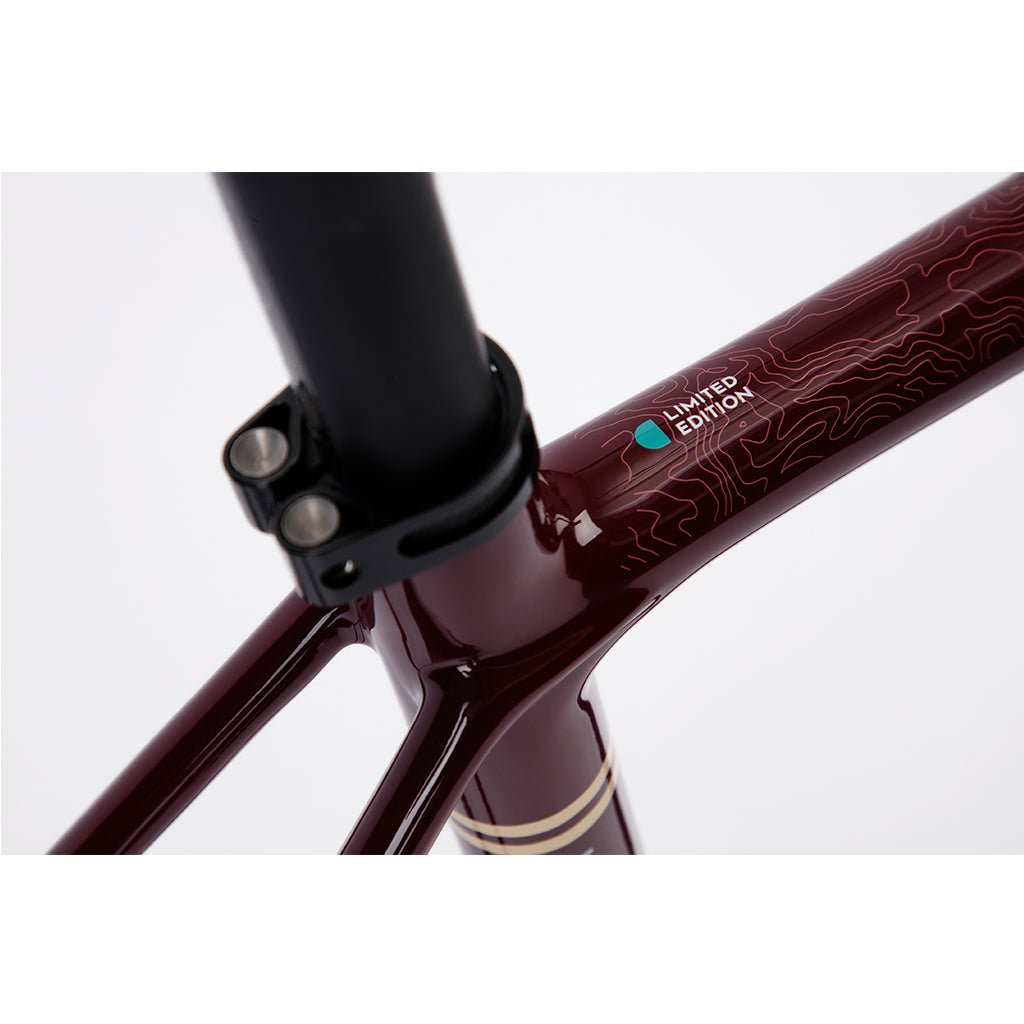

- Limited Edition: Exclusivity
Specifications
Specifications of Chapter 2 Huru Disc Brake Frameset
| Carbon | Toray® T700, T800 & 3K Directional Carbon |
| Frame 5 Sizes | XS, S, M, L & XL |
| Fork Rakes (2) | XS, S (53 mm offset) and M, L, XL (43 mm offset) |
| Frame Weight | 819 g Size M +/- 3% |
| Fork Weight | 389 g Uncut +/- 3% |
| Seatpost Weight | Reversible Seatpost 219 g +/- 3% |
| Handlebar/Stem (MANA) | Not included |
| Headset | Chapter2 1-1/8” |
| Bottom Bracket | Press Fit BB86.5 |
| Electronic Shifting | Shimano® Di2, SRAM® eTAP & Campagnolo® EPS compatible |
| Battery Type | Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible |
| Tire Clearance | 28 mm |
| Brake Type | Direct Mount Type |
| Disc Thru-Axle | Flat Mount, FR 12x100 mm, RR |
| Spec | 12x142 mm, E-Thru M12x1.5 mm |
| Safety Standard | EN ISO 4210:2014 |
| UCI Accreditation | UCI Approved |
|
Torque Specifications |
|
| Saddle Rail | 8Nm |
| Seatclamp | 6Nm |
| Front Derailleur Hanger | 3Nm |
| Rear Derailleur Hanger | 2Nm |
| BB Cable Guide Cover | 1Nm |
| Thru-Axle | 10Nm |
| Water Bottle Cage Bolts | 3Nm |
Geometry
Geometry of Chapter 2 Huru Disc Brake Frameset
| Size | XS | S | M | L | XL |
| Stack | 495 |
520 |
545 |
570 |
595 |
| Reach | 360 |
369 |
378 |
387 |
396 |
| Top Tube | 507 |
523 |
540 |
556 |
572 |
| Head Tube | 99 |
119 |
139 |
164 |
190 |
| Seat Tube Angle (°) | 73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
| Head Tube Angle (°) | 70.5 |
72.2 |
73.1 |
73.5 | 73.5 |
| Seat Tube | 455 |
475 |
495 |
520 |
550 |
| BB Drop | 70 |
70 |
70 |
70 |
70 |
| Rear Centre | 405 |
405 |
405 |
405 |
405 |
| Wheelbase | 965 |
968 |
966 |
978 |
994 |
| Front Centre | 571 |
573 |
571 |
584 |
599 |
| Fork Offset | 53 | 53 | 43 | 43 | 43 |
| Seatpost Setback | 0 |
0 |
0 |
0 |
0 |
| Standover | 725 |
746 |
754 |
795 |
820 |
| Rider Height | <170 |
165-175 |
170-180 |
175-185 |
>180 |
| Max. Tire Size | 28 |
28 |
28 |
28 |
28 |
| Rear Caliper Mount | 20 |
20 |
20 |
20 |
20 |
