Elite Square Direct Drive Smart Frame Biycle Trainer

8020775044018
₹126,990

Estimated Shipping Widget will be displayed here!

In the Box

1x Elite Square Smart Trainer Frame
1x Elite T-Race Bottle Cage

Smart Indoor Frame with Fully Adjustable Ride Fit

Overview

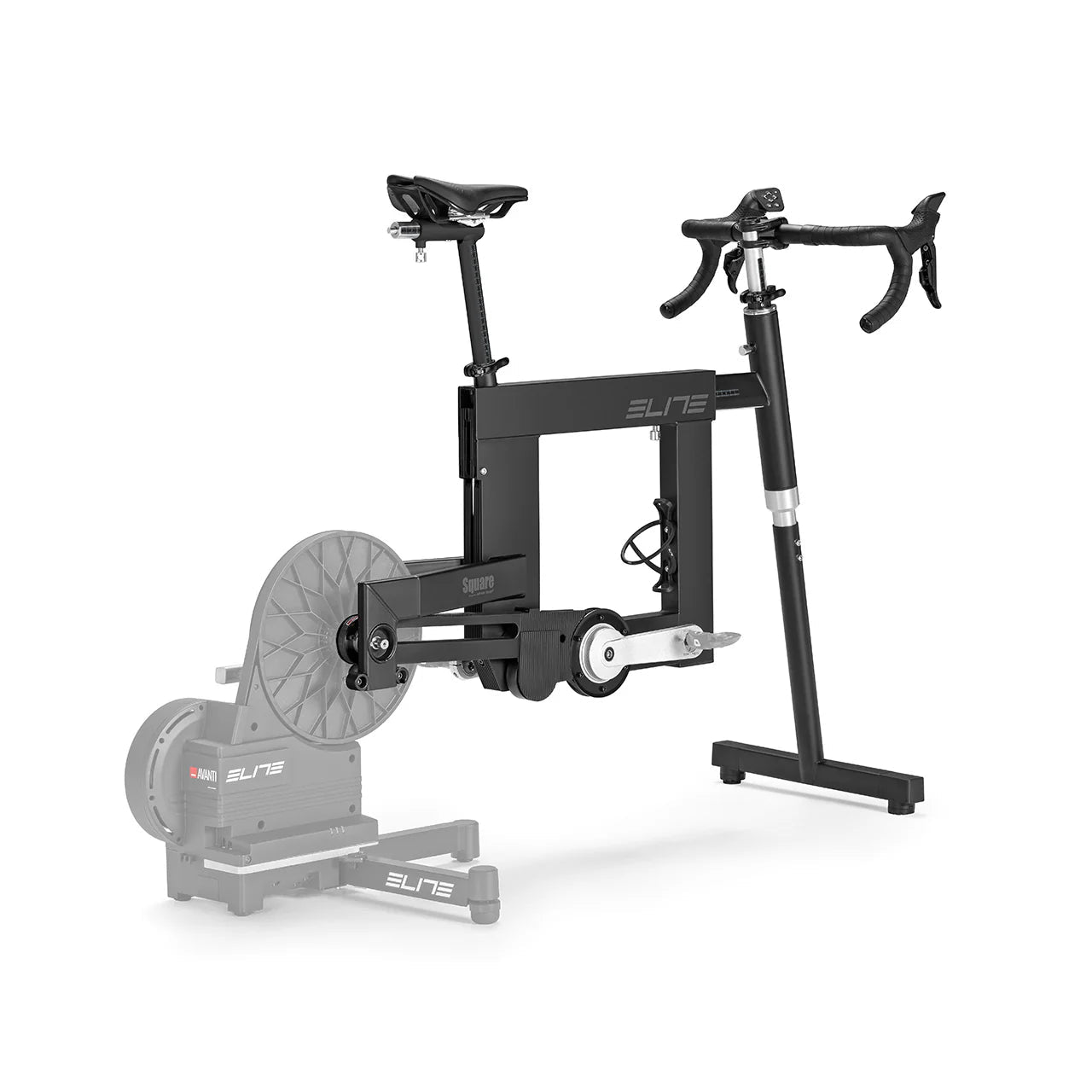

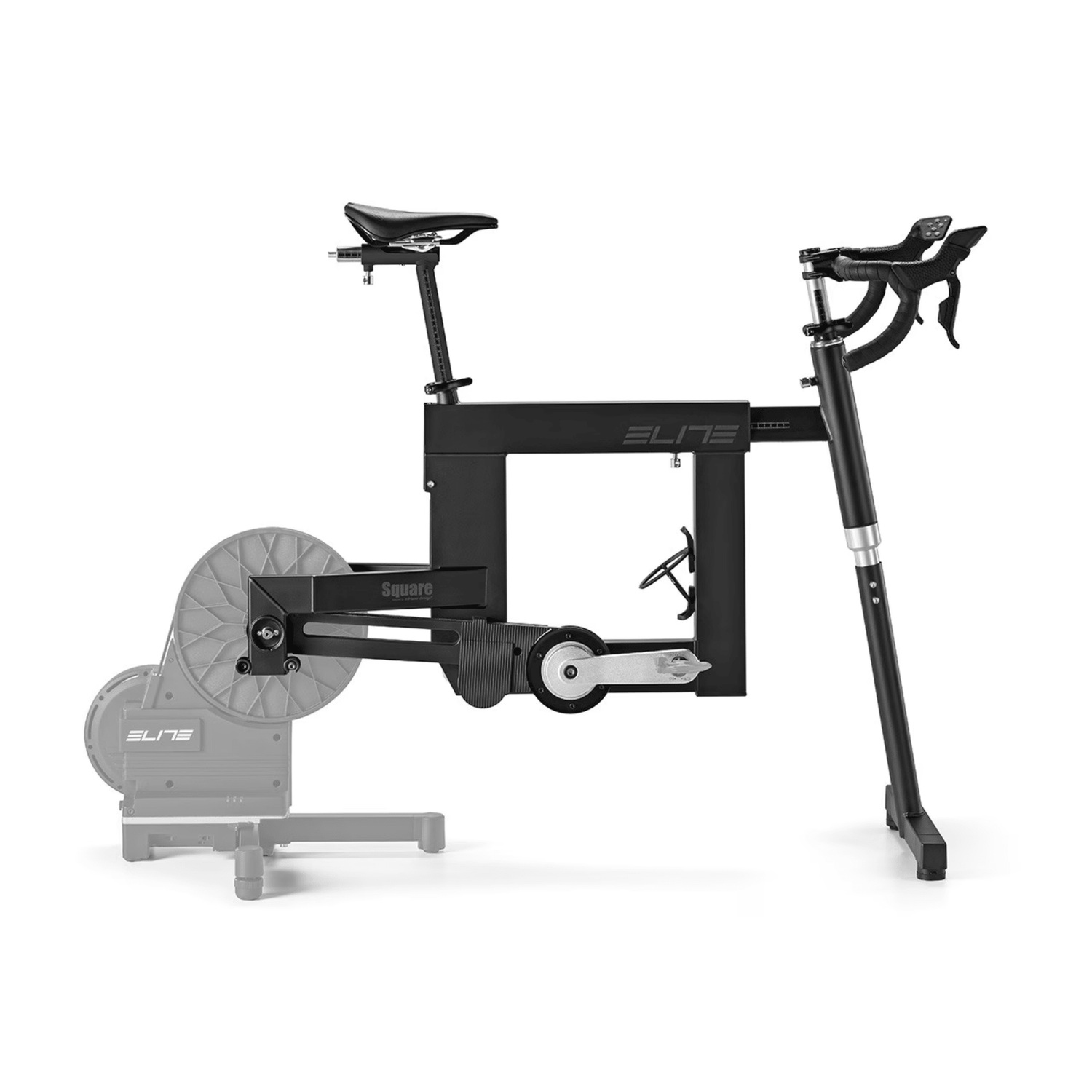

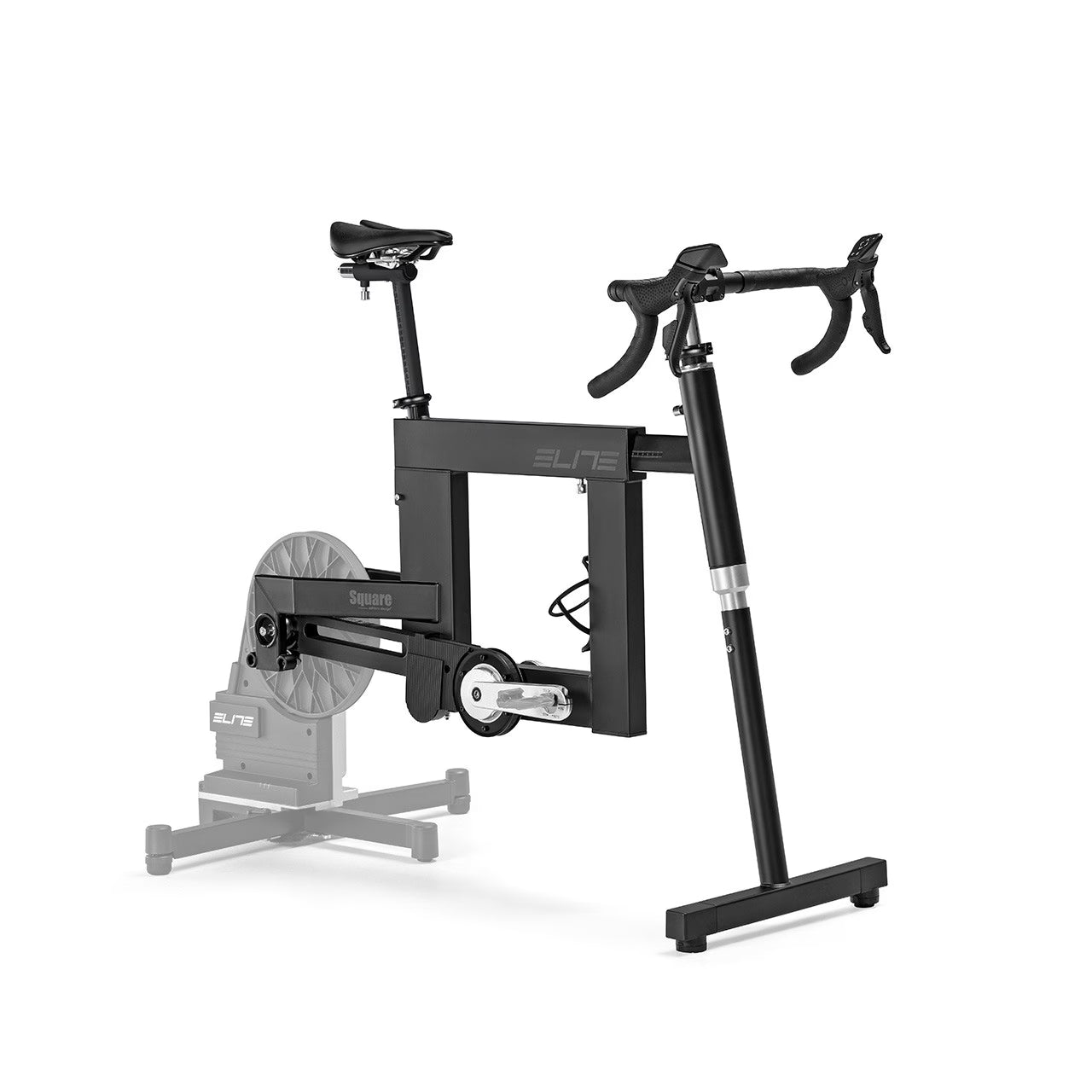

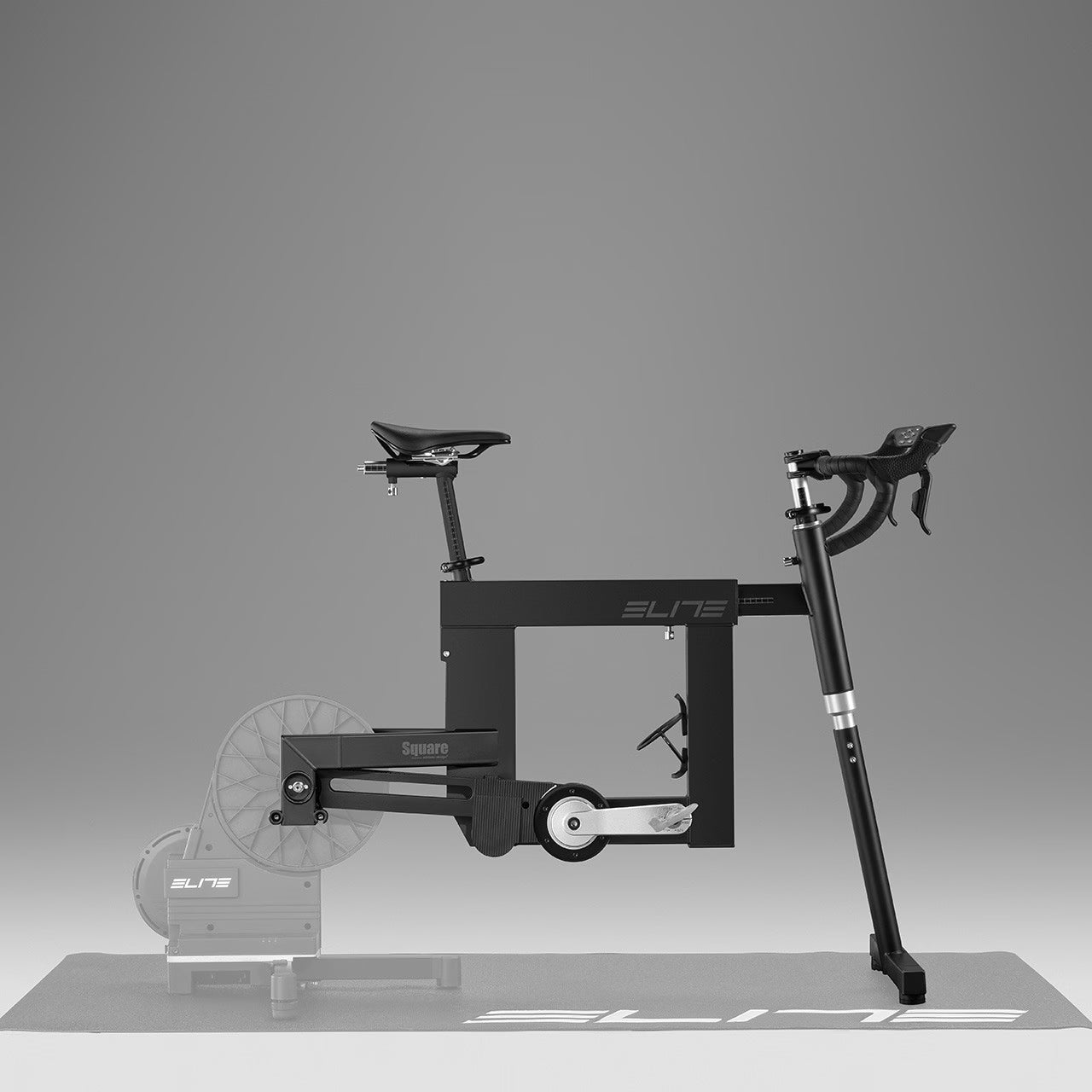

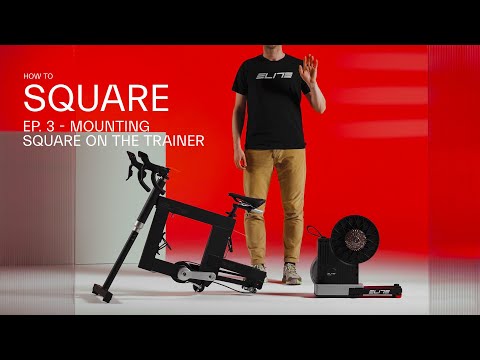

The Elite Square Direct Drive Smart Frame Bicycle Trainer is designed to replicate the feel and setup of your outdoor bike for indoor training. It works with Elite’s latest direct-drive trainers and supports advanced virtual shifting across major cycling apps.

Virtual Drivetrain Control: Square lets you mirror Shimano, SRAM and Campagnolo drivetrain setups through its companion app. You can choose from 13 presets, configure 10 to 13-speed cassettes, select sprockets from 9 to 52 teeth and set 1x, 2x, or 3x chainring combinations.

Preset and Sequential Shifting: For quick starts, the app includes presets for flats, climbs, mixed terrain and a default Shimano 12-speed 11–30 setup. Sequential shifting is also available, with resistance adjustable from levels 5 to 24 for simpler indoor control.

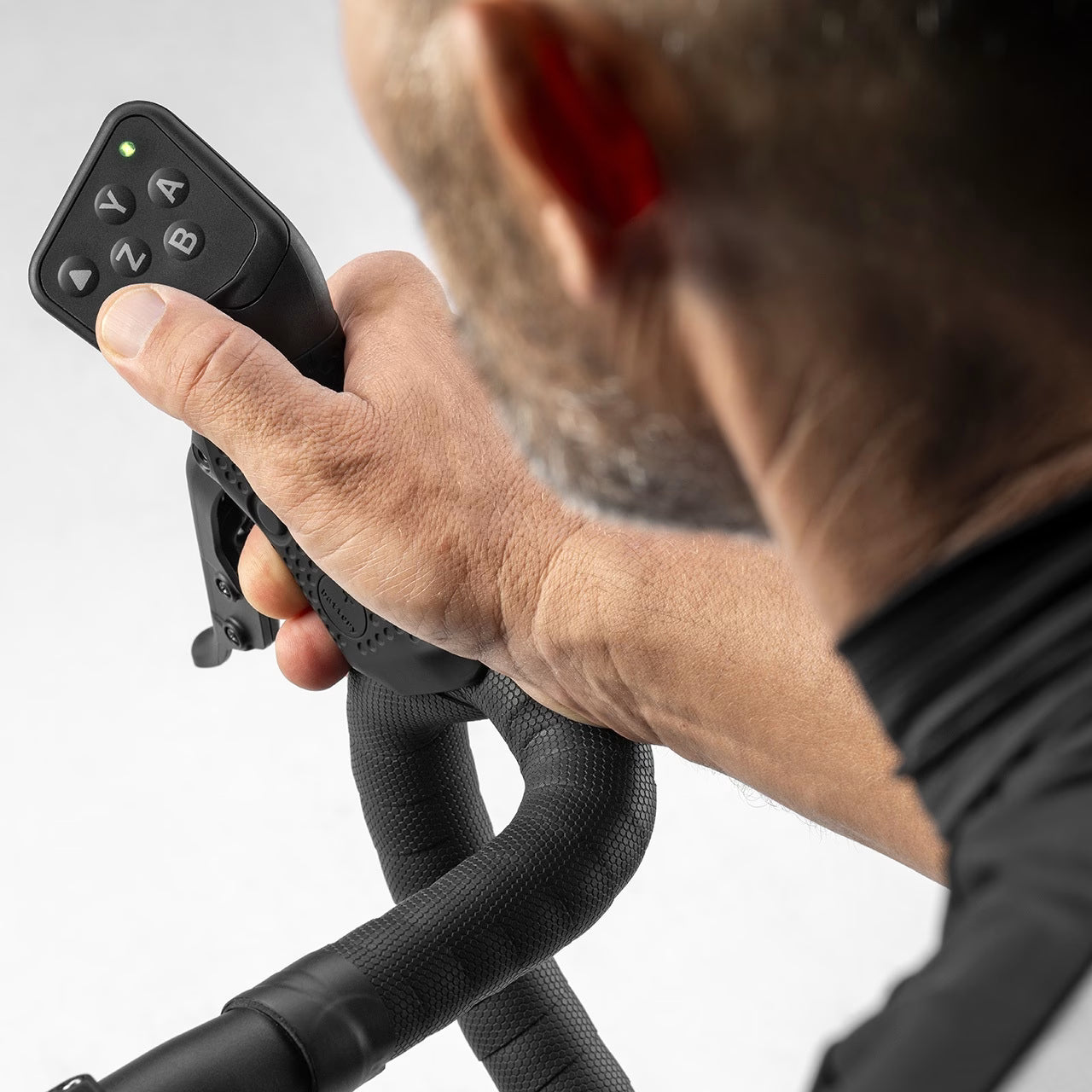

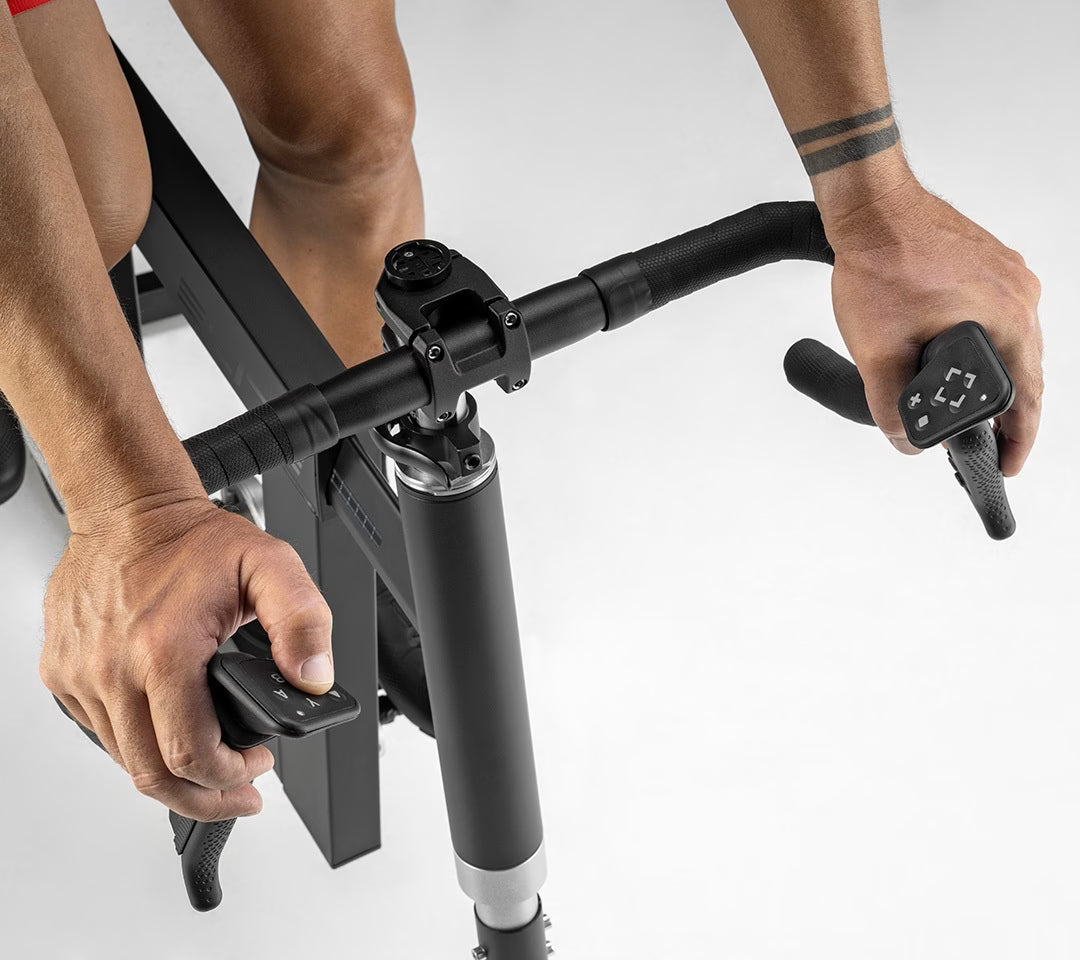

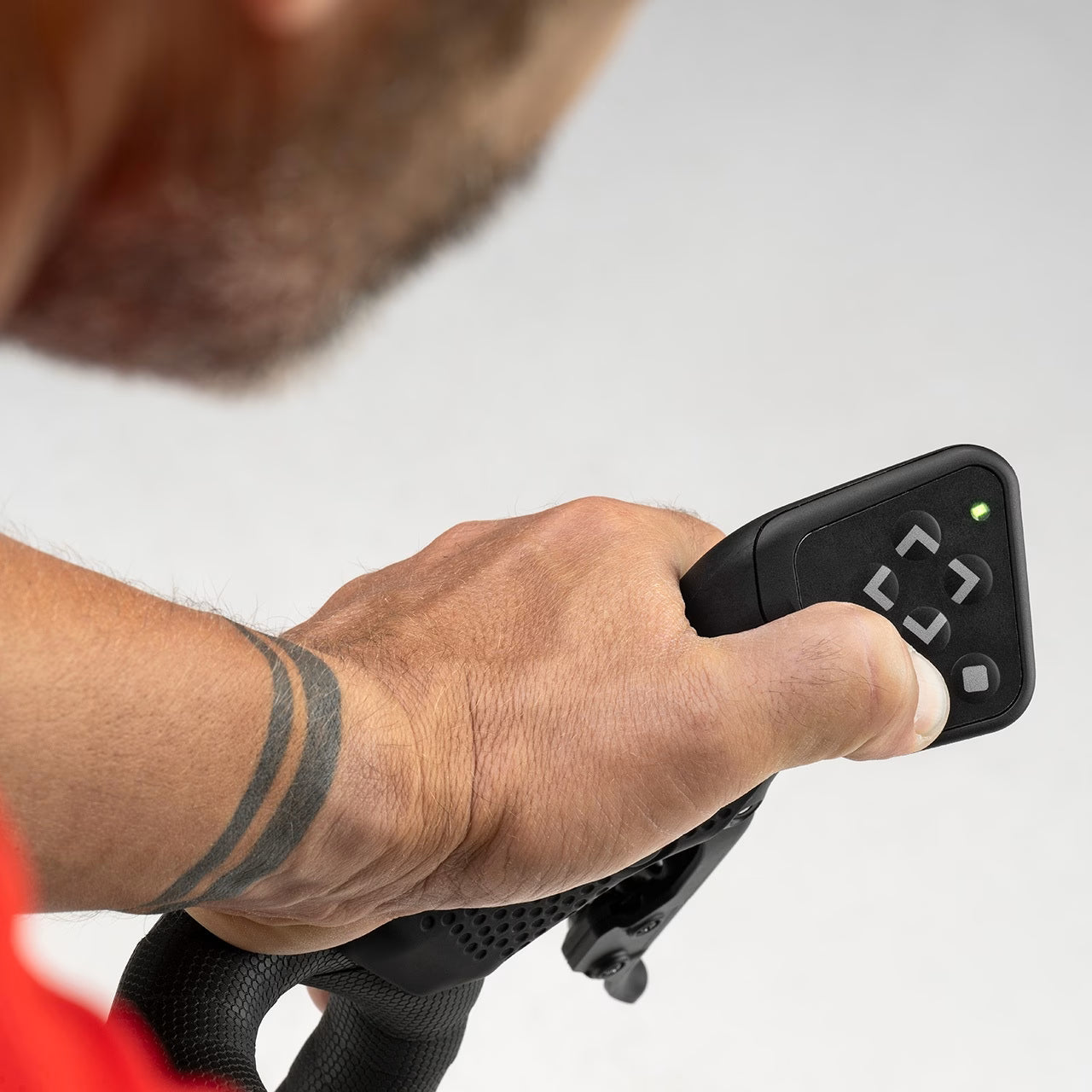

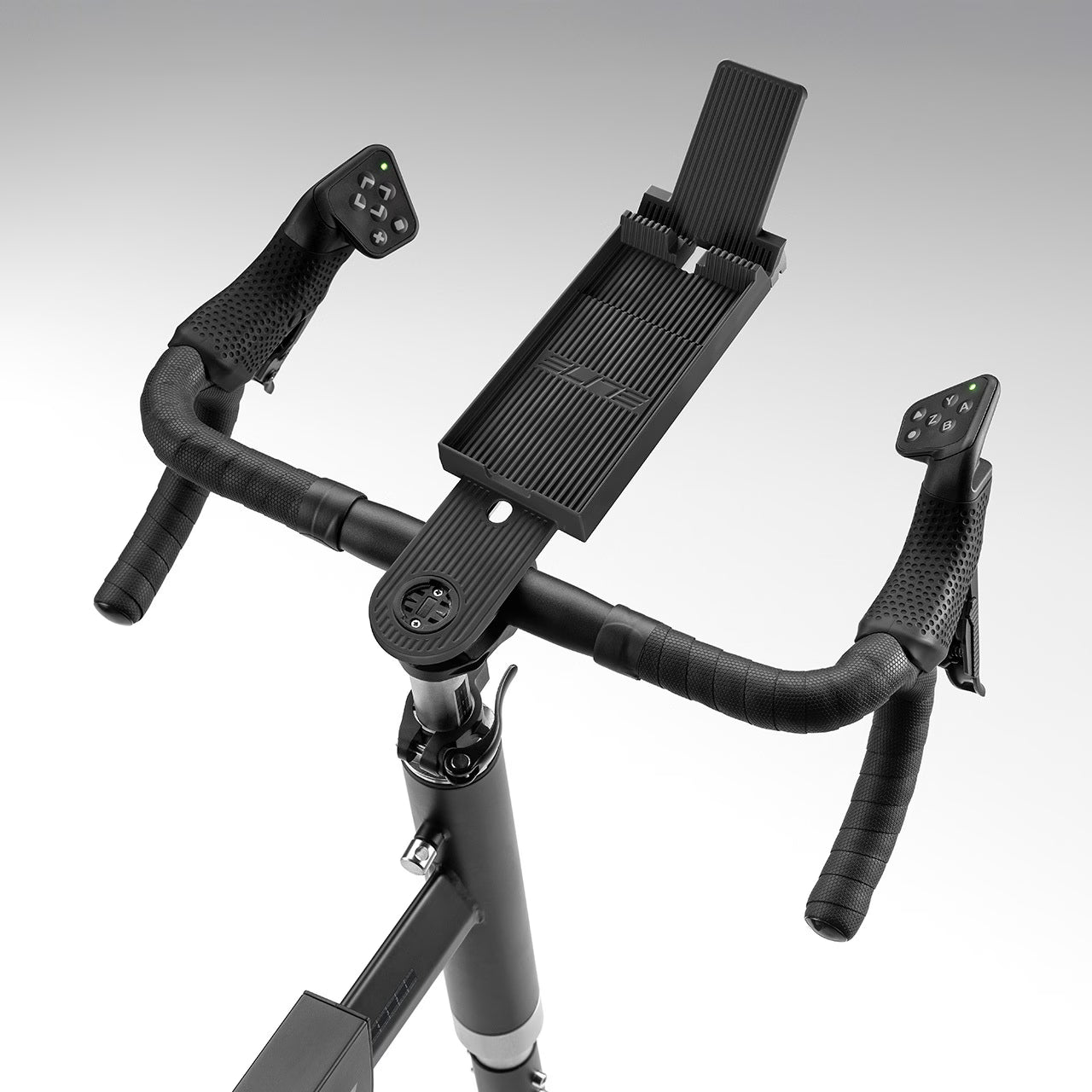

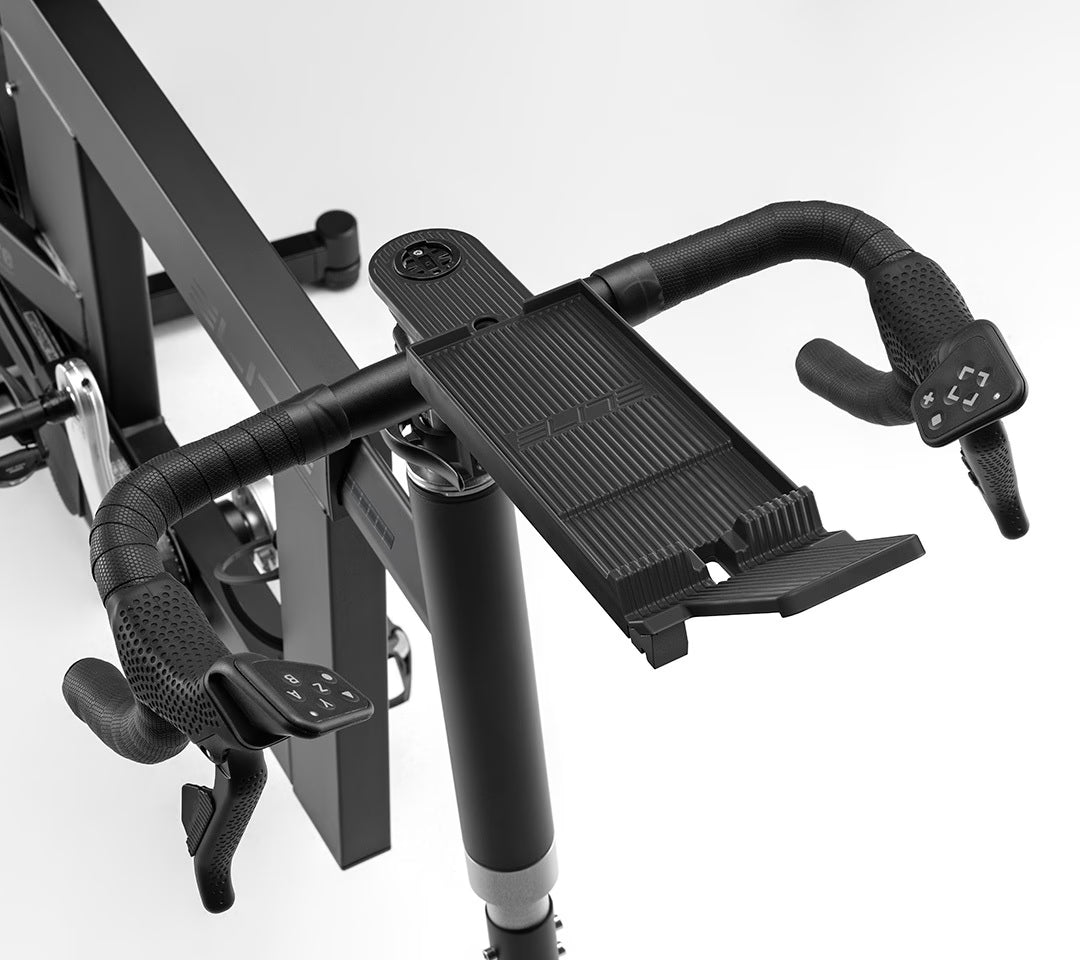

Realistic Handlebar Controls: The smart handlebar mirrors the lever and button layout of Shimano, SRAM and Campagnolo systems. Each controller includes 10 buttons for shifting, braking, Aria airflow control, Zwift steering, app controls and advanced functions through long presses or button combinations.

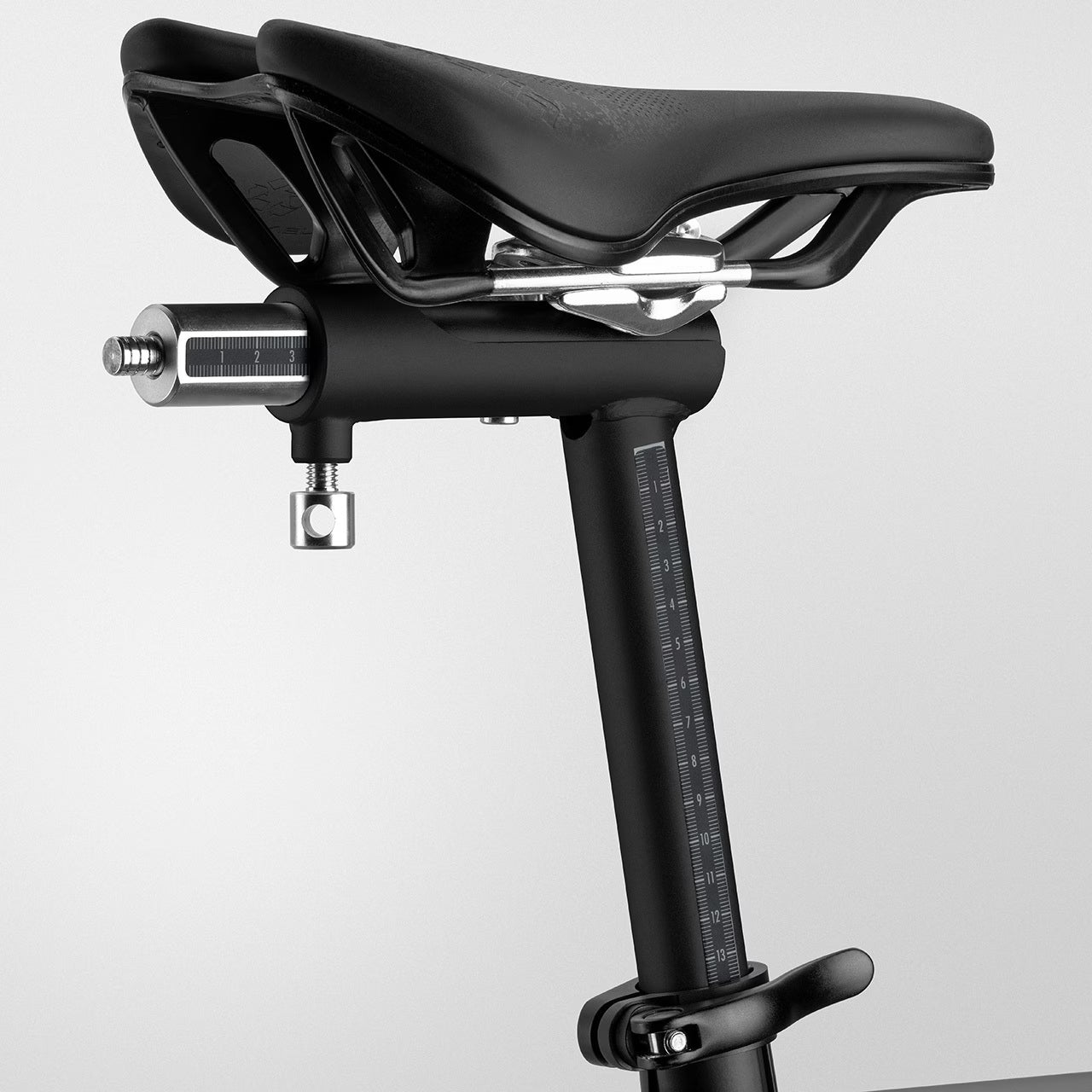

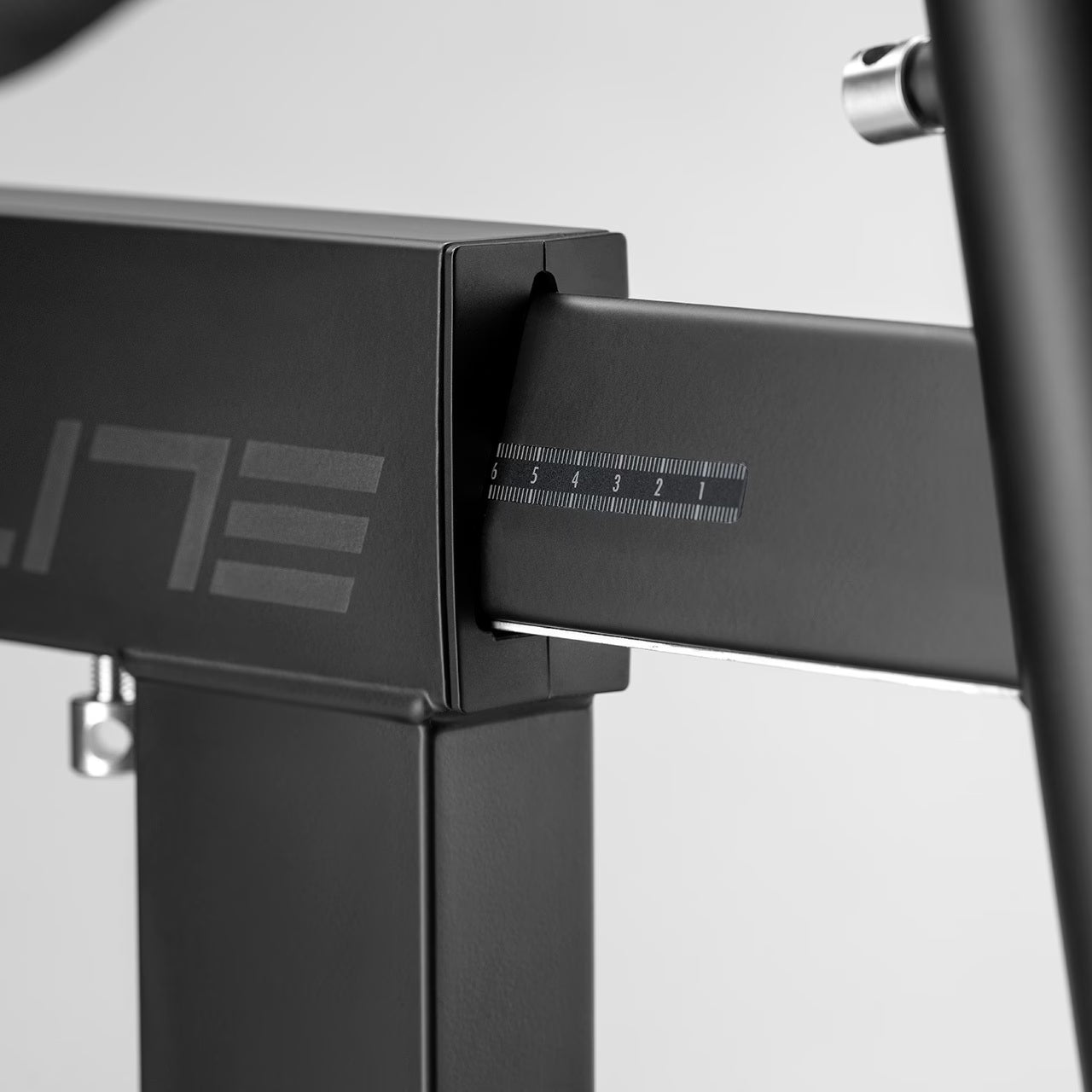

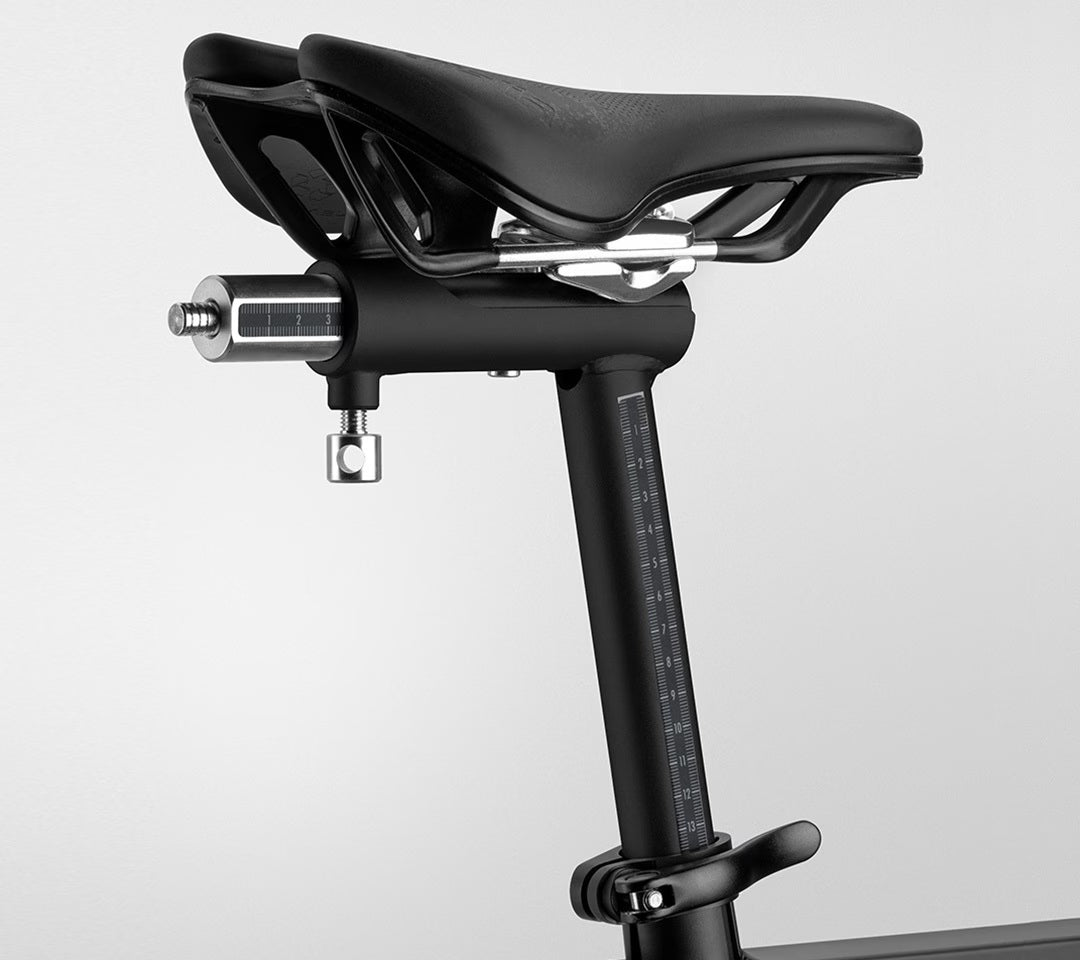

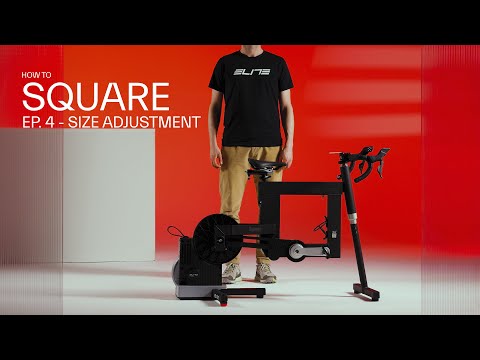

Fully Adjustable Fit: Square is built to cover sizes from XS to XL and allows detailed adjustment of saddle height, saddle fore-aft, saddle tilt, handlebar height, handlebar reach, top-tube length and crank length. Clear millimetric scales help recreate a repeatable and accurate riding position.

Made for Multiple Riders: Up to five user profiles can be created in the Square app, making it easy for different riders to share one indoor station. Its setup also removes the need for spare cassettes, adapters, spacers, or rear derailleur adjustments before every session.

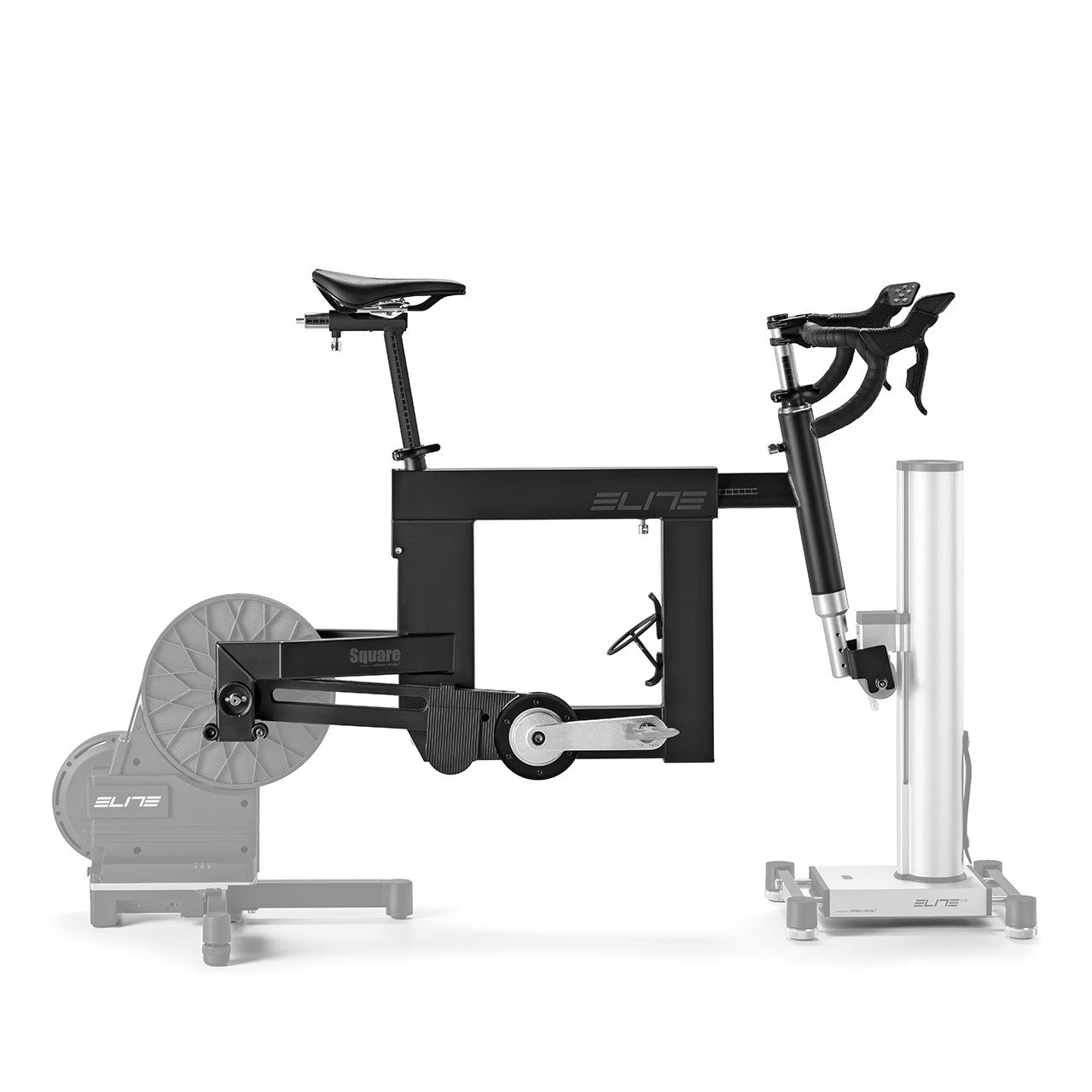

Elite Square Direct Drive Smart Frame Bicycle Trainer is a Plug & Play smart frame made for precise bike fit, virtual gearing, app control and deep integration with Elite accessories like Rizer & Aria.

Features

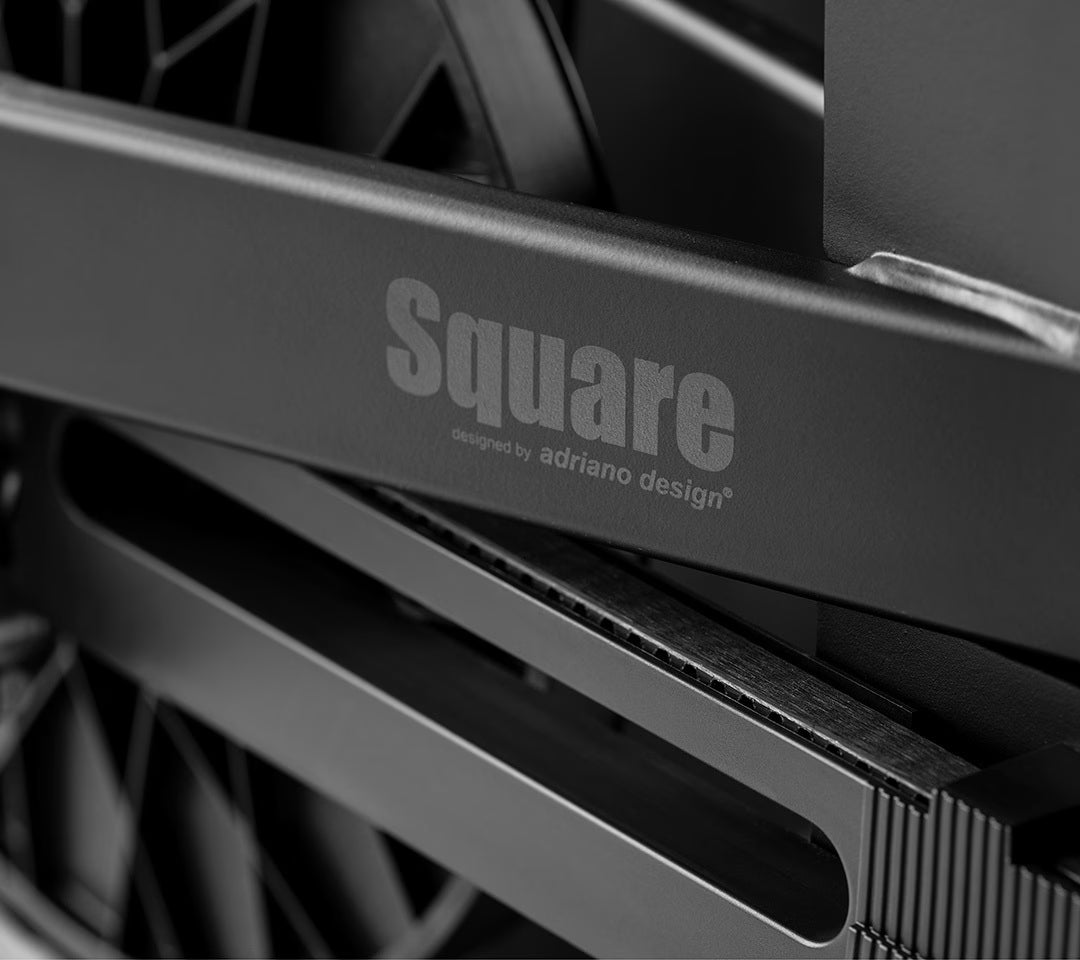

  • Quiet Belt Drive: Belt transmission reduces chain noise, vibration, grease and routine drivetrain maintenance.
  • Shared User Profiles: Square app supports up to five rider profiles, making one indoor setup easier for multiple cyclists.

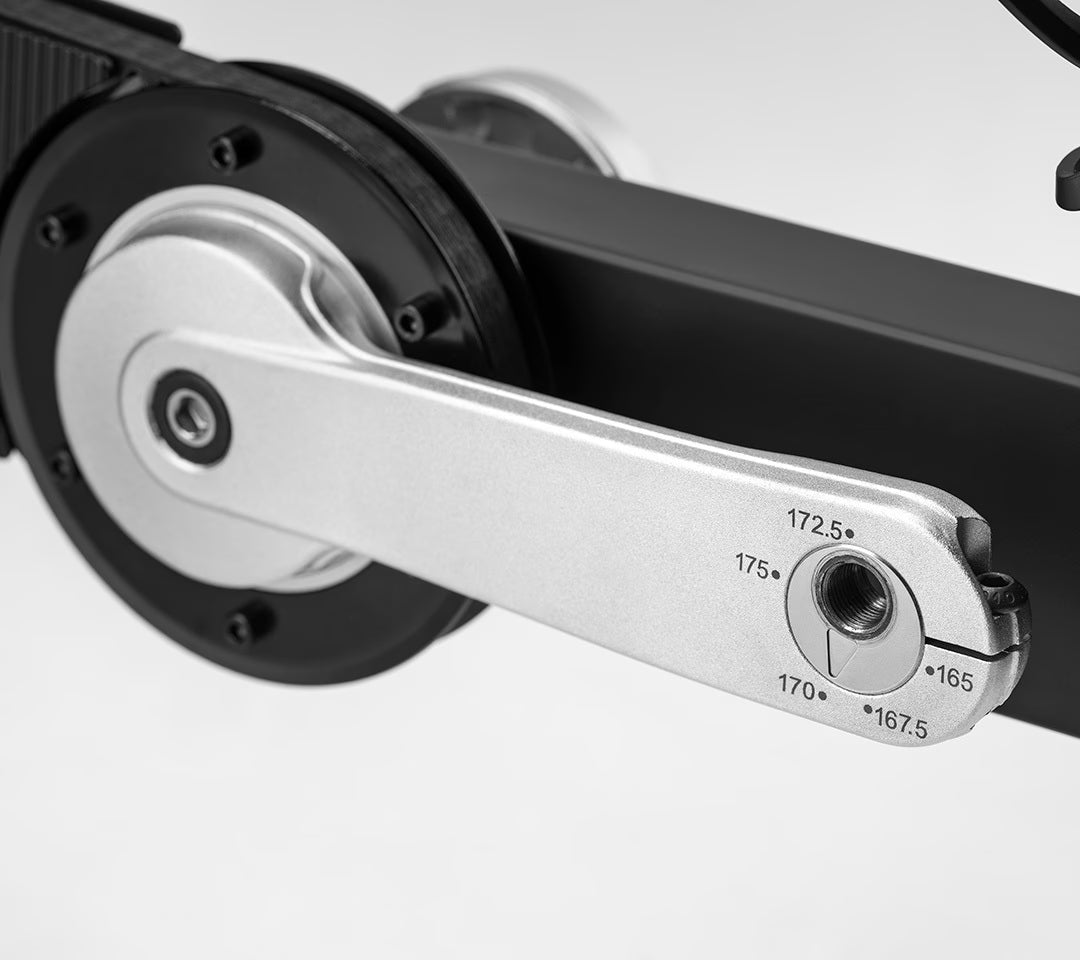

  • Five Crank Lengths: Adjustable crank arms support 165, 167.5, 170, 172.5 and 175 mm for better indoor biomechanics.

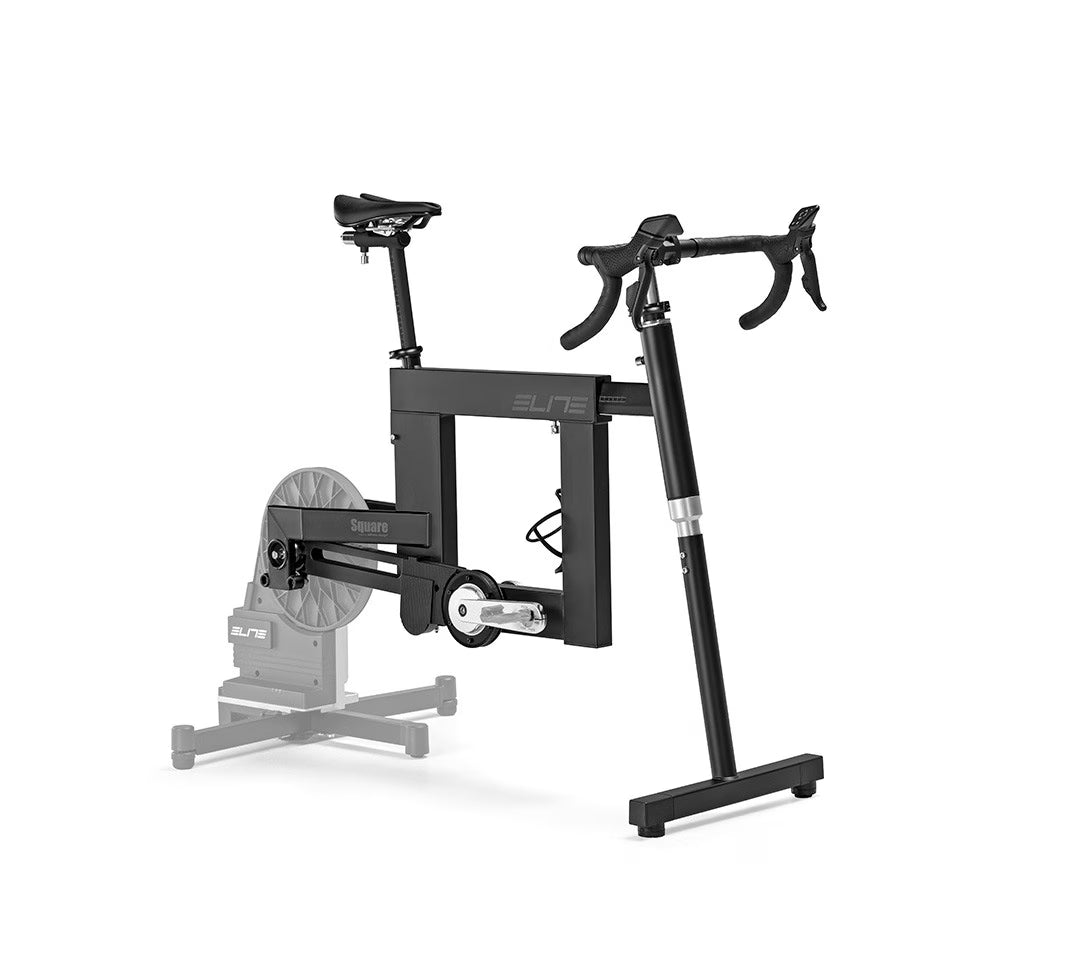

  • Standalone Resistance: Handlebar levers allow 16 resistance levels without apps or active connections.

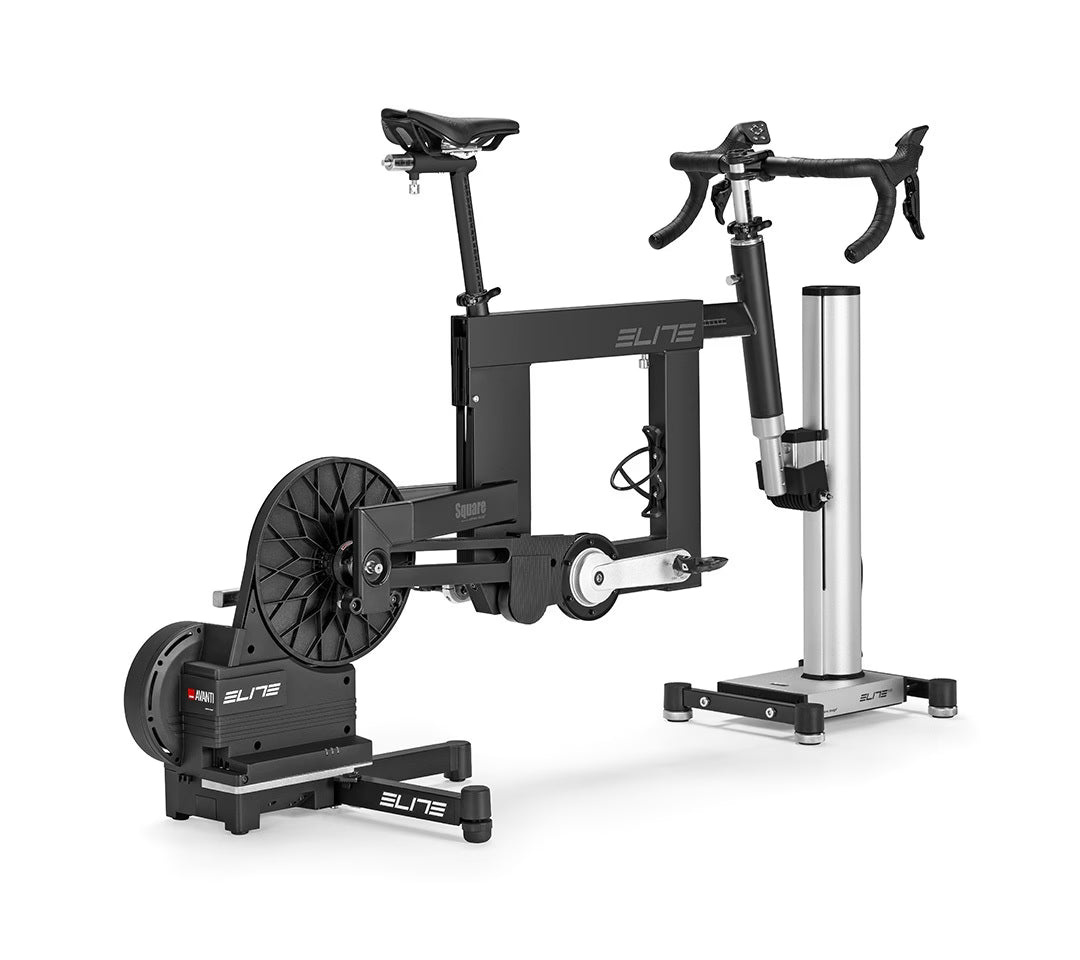

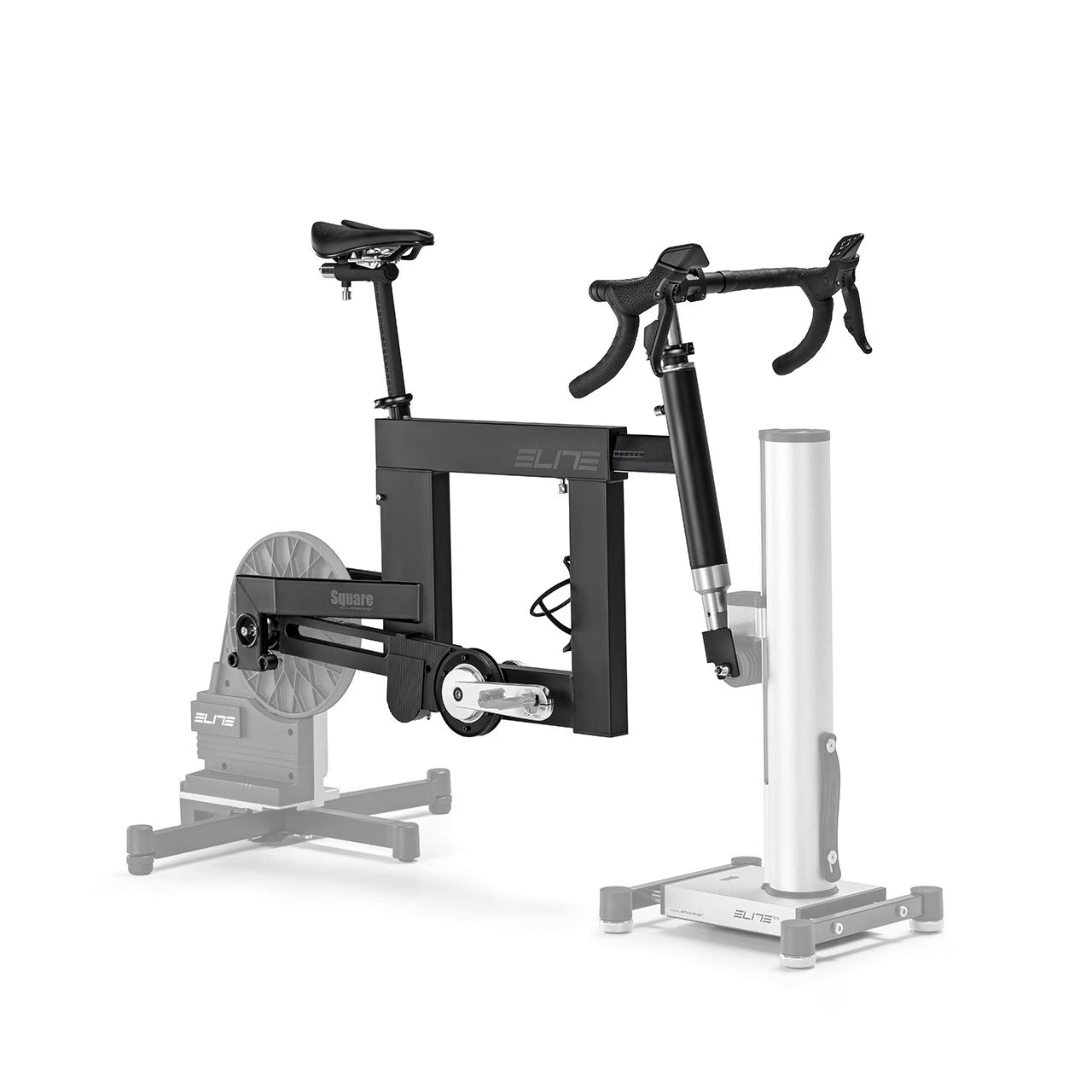

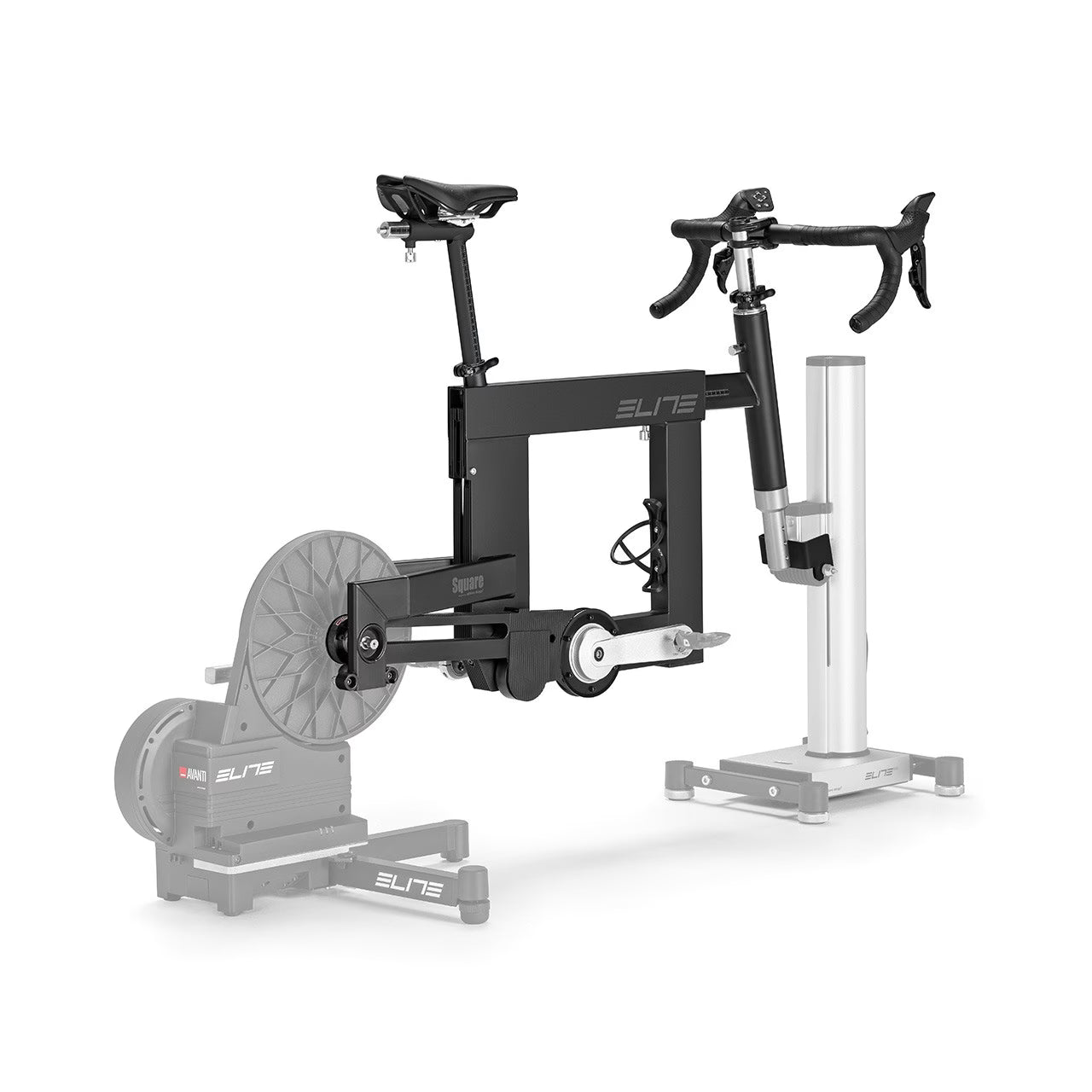

  • Rizer Compatibility: Works with Elite Rizer to add steering and gradient simulation to indoor training sessions.

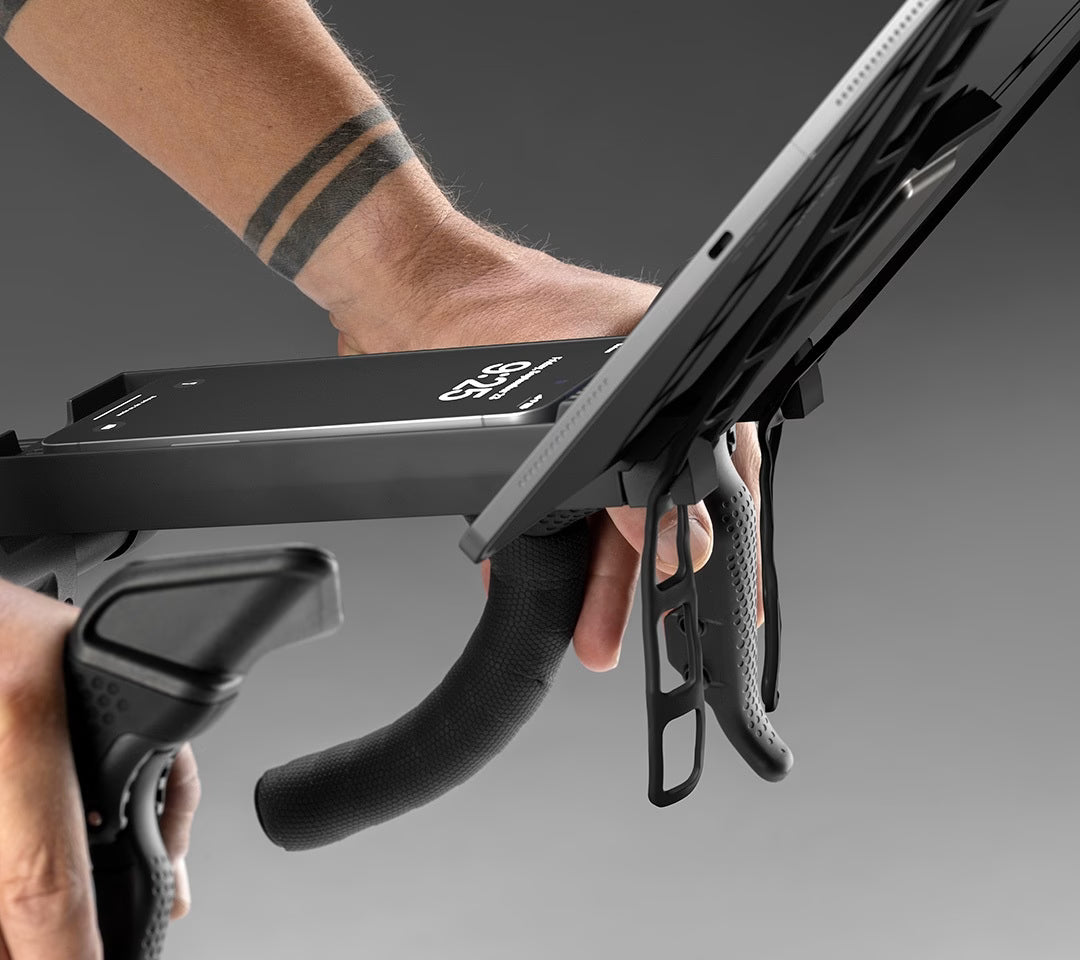

  • Road-Feel Handlebar: 420 mm bar with 6° flare and silicone grips gives a stable, durable, road-bike-like feel.
  • Trainer Setup Simplicity: Removes the need for cassette swaps, adapters, spacers and derailleur adjustments between sessions.

Specifications

  • Overall Dimensions with Avanti Trainer: 92x105x45 cm
  • Total Dimensions Minimum Adjustments with Avanti Trainer: 91.5x105x 44.5 cm / 36.02x41.33x17.52"
  • Weight: 23 kg / 50.70 lbs
  • Maximum User Weight: 110 kg / 242.51 lbs
  • Minimum and Max Rider Height: 152 cm – 198 cm / 4 Feet 11 Inches – 6 Feet 6 Inches
  • Q-Factor: 15 cm / 5.90"
  • Handlebar Width: 42 cm / 16.53"
  • Handlebar Height Adjustment: 84.5 cm – 106 cm / 32.27" – 41.73"
  • Flare: 6°
  • Saddle Width: 15 cm / 5.90"
  • Saddle Height Adjustment: 57 cm – 88 cm / 22.44" – 34.64"
  • Minimum Saddle Setback: 17 cm / 6.69"
  • Maximum Saddle Setback: 29.3 cm / 11.53"
  • Bottom Bracket to Head Tube Horizontal Distance Minimum: 49.8 cm / 19.61"
  • Bottom Bracket to Head Tube Horizontal Distance Maximum: 81.4 cm / 32.05"
  • Bottom Bracket to Head Tube Vertical Distance Minimum: 38.0 cm / 14.96"
  • Bottom Bracket to Head Tube Vertical Distance Maximum: 49.5 cm / 19.49"
  • Adjustable Crank Lengths-5 Lengths: 165 mm, 167.5 mm, 170 mm, 172.5 mm, 175 mm
  • Battery Life: 80 hrs
  • Pedals: Not Included
  • Bottle Cage: Elite T-Race Bottle Cage Included
  • Materials: Steel, Aluminum, Plastic PA6 and PA6 +30%FV, Silicone
  • Handlebar Tape: PU+EVA
